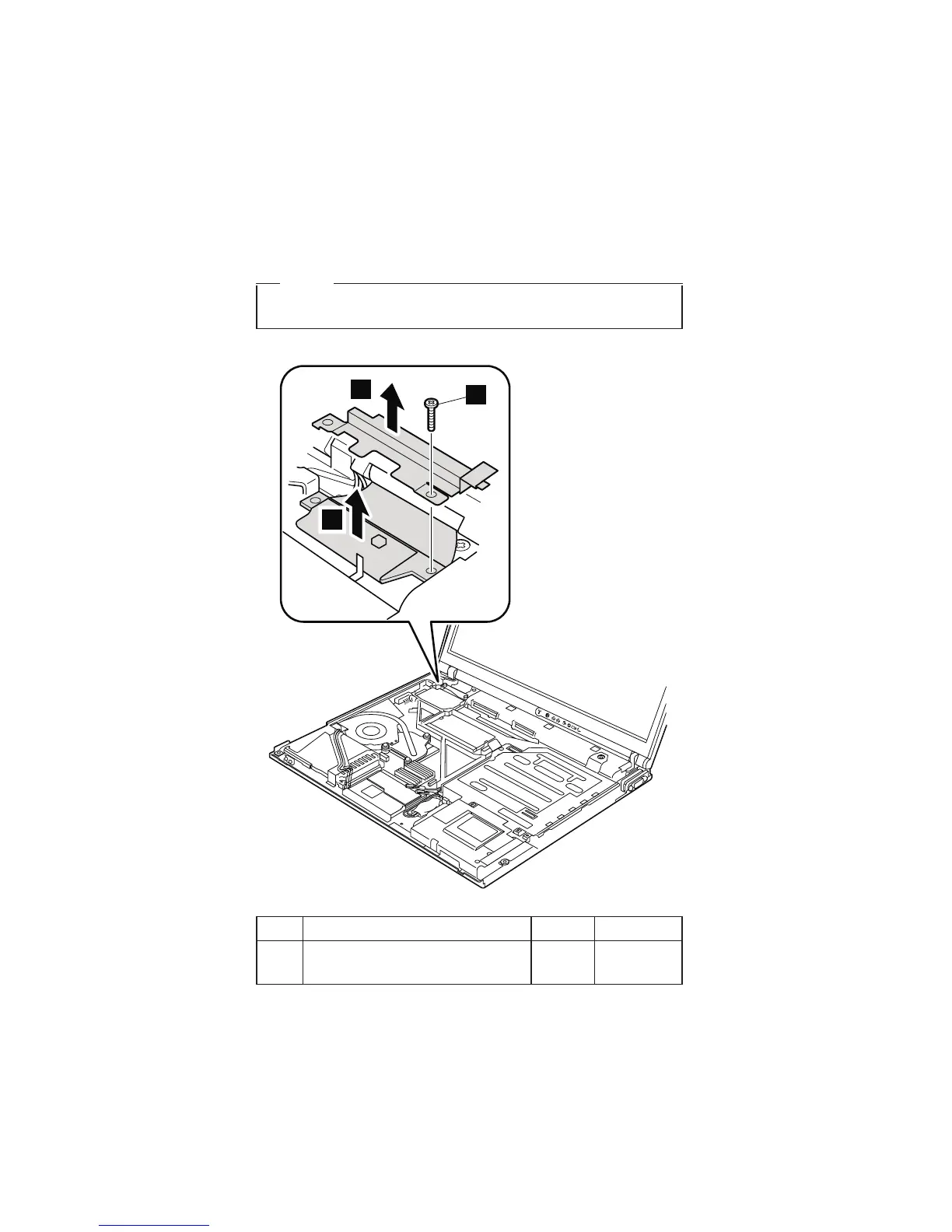

1170 IEEE 1394 (for R52 series)
For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1030 Hard disk drive” on page 79
v “1050 Keyboard” on page 82
v “1100 Keyboard bezel” on page 92
v “1160 Speaker assembly” on page 106
Note
Some models do not have the IEEE 1394 cable.
1
2
3
Step Screw (quantity) Color Torque
1 M2 × 12 mm, bind-head,
nylon-coated (1)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
108 R50e, R51e and R52 Series
To Next Page
