2020 Inverter card
For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1020 Ultrabay Enhanced device (for R52 series)” on
page 77
v “1030 Hard disk drive” on page 79
v “1050 Keyboard” on page 82
v “1060 Ultrabay device (for R50e series)” on page 86
v “1080 Modem daughter card (MDC-2)” on page 88
v “1090 Bluetooth/Modem daughter card (BMDC-3) (for
R52 series)” on page 90
v “1100 Keyboard bezel” on page 92
v “1120 Mini PCI adapter” on page 99
v “1190 Ultrabay Enhanced shield kit” on page 114
v “1200 LCD assembly” on page 121
v “2010 LCD front bezel” on page 135
Note:
Some models may not have the wireless LAN
antenna cables.
1
2
3

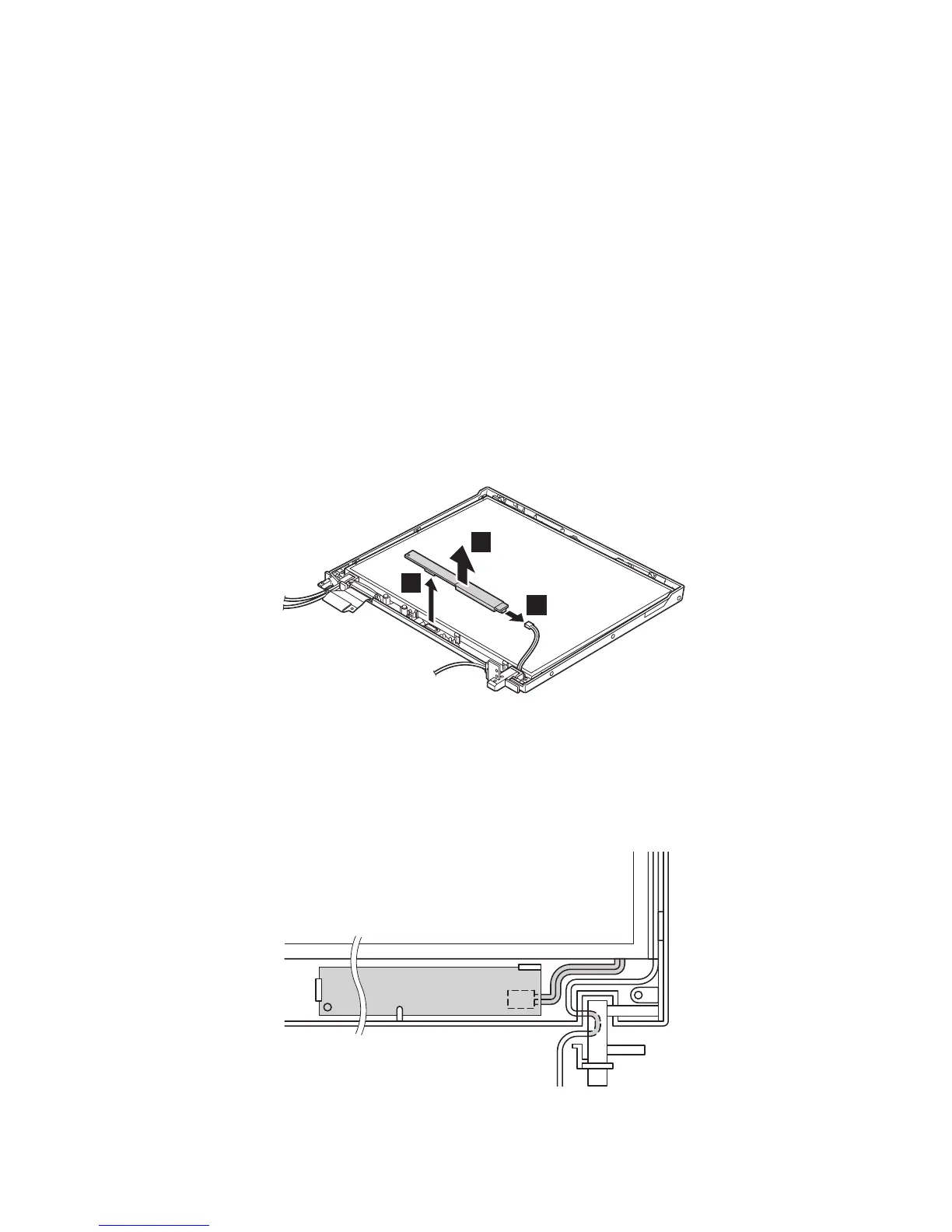

When installing: Make sure that connectors 2 and 3
are firmly attached.
Cable
routing: When replacing the inverter card, route
the connector cable as in this figure:
Removing and replacing a FRU
ThinkPad R50e, R51e and R52 Series 137
