1060 Ultrabay device (for R50e series)
For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1050 Keyboard” on page 82

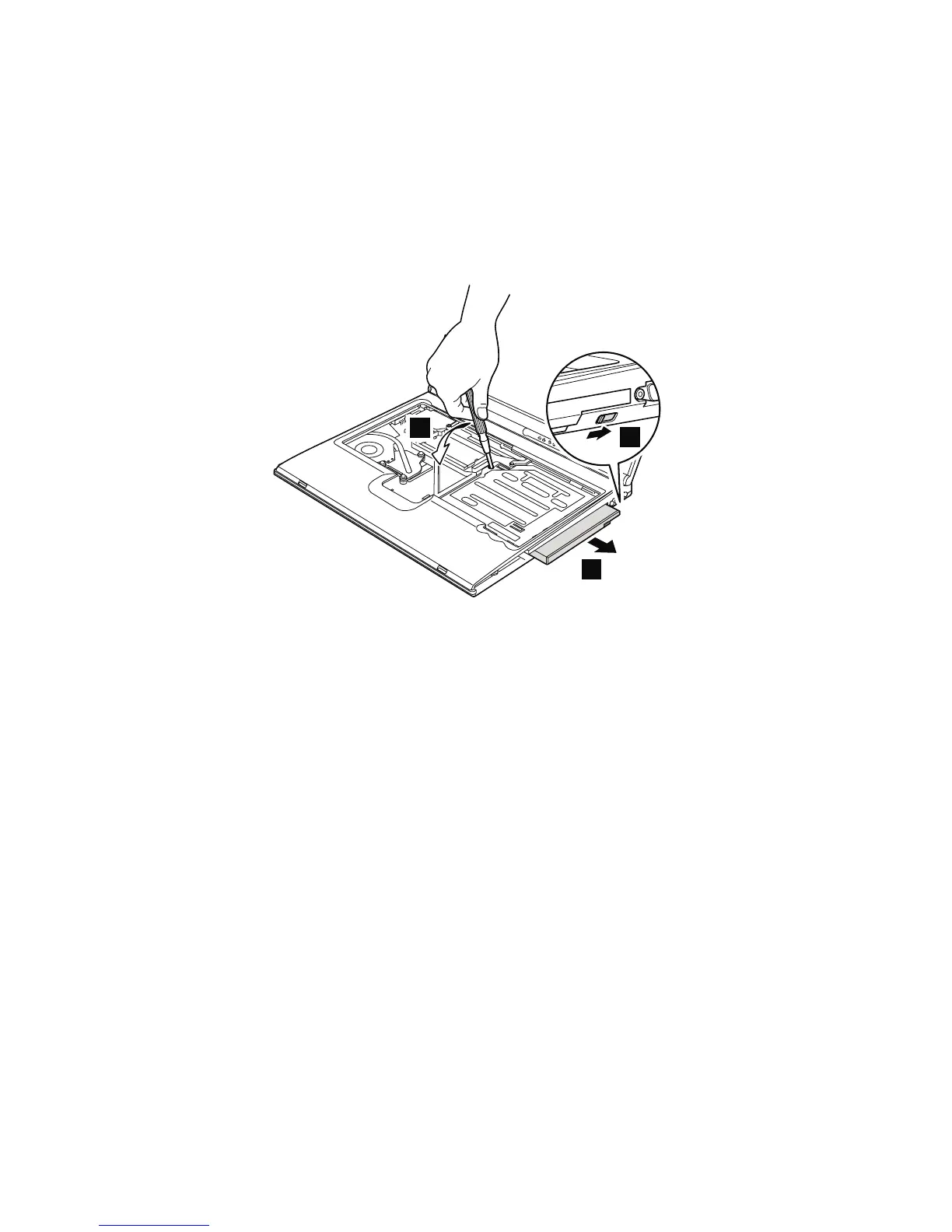

Holding the switch in the direction of arrow 1, and push
the Ultrabay device out from the bay by using a
screwdriver 2 as in this figure. Then pull out the Ultrabay
device with your hand 3.
2
1
3
Removing and replacing a FRU
86 R50e, R51e and R52 Series
