1100 Keyboard bezel

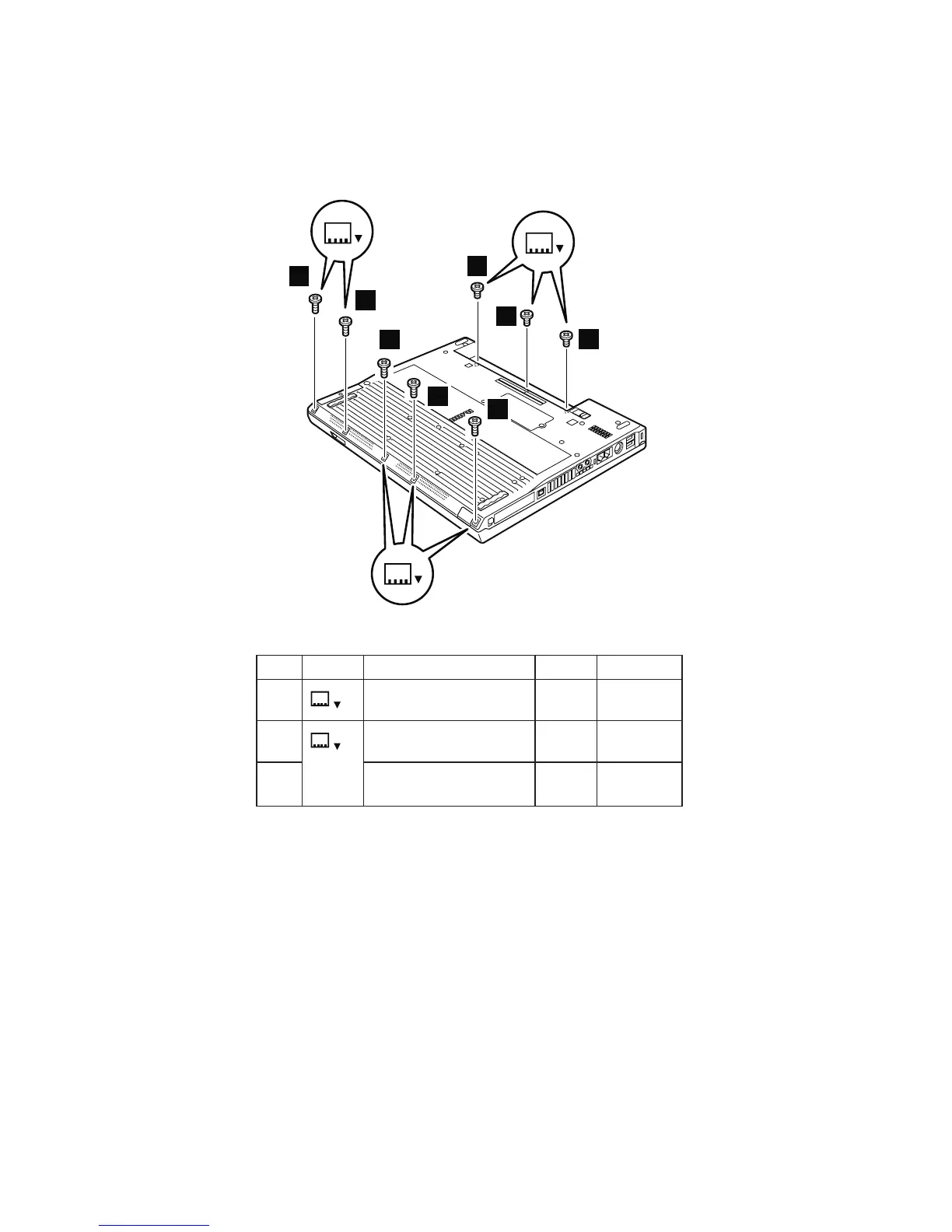

For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1050 Keyboard” on page 82
2
2
1
1
1
2
2a
2
2
2
1
Screw 2a is only for the models with 15.0-in. LCD.
Step Icon Screw (quantity) Color Torque
1
1
M2 × 3 mm, small-head,
nylon-coated (3)
Silver 0.245 Nm
(2.5
kgfcm)
2
2
M2 × 6 mm, bind-head,
nylon-coated (4)
Black 0.245 Nm
(2.5
kgfcm)
2a M2 × 6 mm, bind-head,
nylon-coated (1)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
92 R50e, R51e and R52 Series
