1200 LCD assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1020 Ultrabay Enhanced device (for R52 series)” on
page 77
v “1050 Keyboard” on page 82
v “1060 Ultrabay device (for R50e series)” on page 86
v “1080 Modem daughter card (MDC-2)” on page 88
v “1090 Bluetooth/Modem daughter card (BMDC-3) (for
R52 series)” on page 90
v “1100 Keyboard bezel” on page 92
v “1120 Mini PCI adapter” on page 99
v “1190 Ultrabay Enhanced shield kit” on page 114

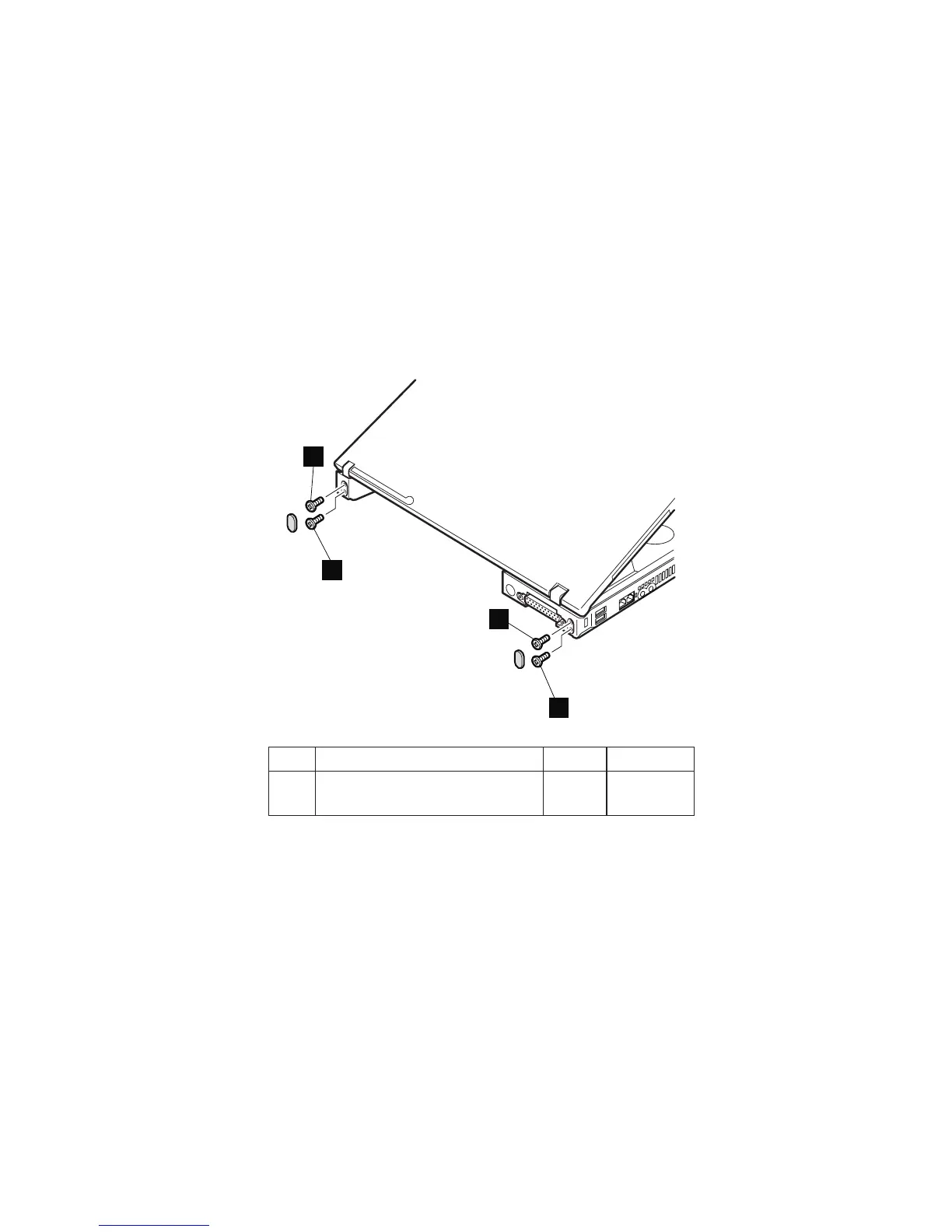

1
1
1
1
Step Screw (quantity) Color Torque
1 M2.5 × 4.8 mm, bind-head,
nylon-coated (4)
Black 0.392 Nm
(4
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad R50e, R51e and R52 Series 121
