1190 Ultrabay Enhanced shield kit
For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1020 Ultrabay Enhanced device (for R52 series)” on
page 77
v “1030 Hard disk drive” on page 79
v “1050 Keyboard” on page 82
v “1060 Ultrabay device (for R50e series)” on page 86
v “1080 Modem daughter card (MDC-2)” on page 88
v “1090 Bluetooth/Modem daughter card (BMDC-3) (for
R52 series)” on page 90
v “1100 Keyboard bezel” on page 92
v “1160 Speaker assembly” on page 106
v “1170 IEEE 1394 (for R52 series)” on page 108

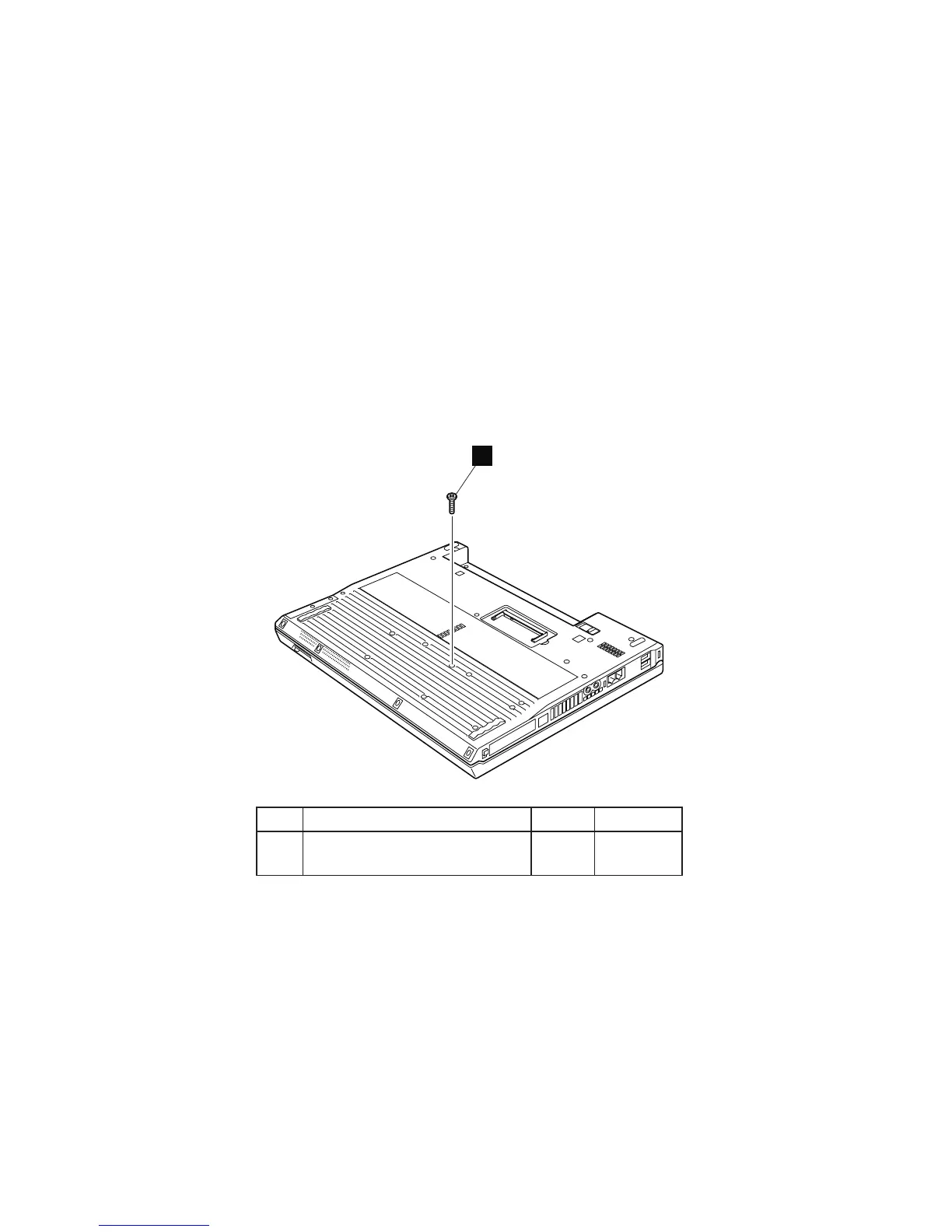

Note:
Step 1 is only for the models with 15.0-in. LCD.
For the other models, skip this step.
1
Step Screw (quantity) Color Torque
1 M2 × 12 mm, bind-head,
nylon-coated (1)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
114 R50e, R51e and R52 Series
