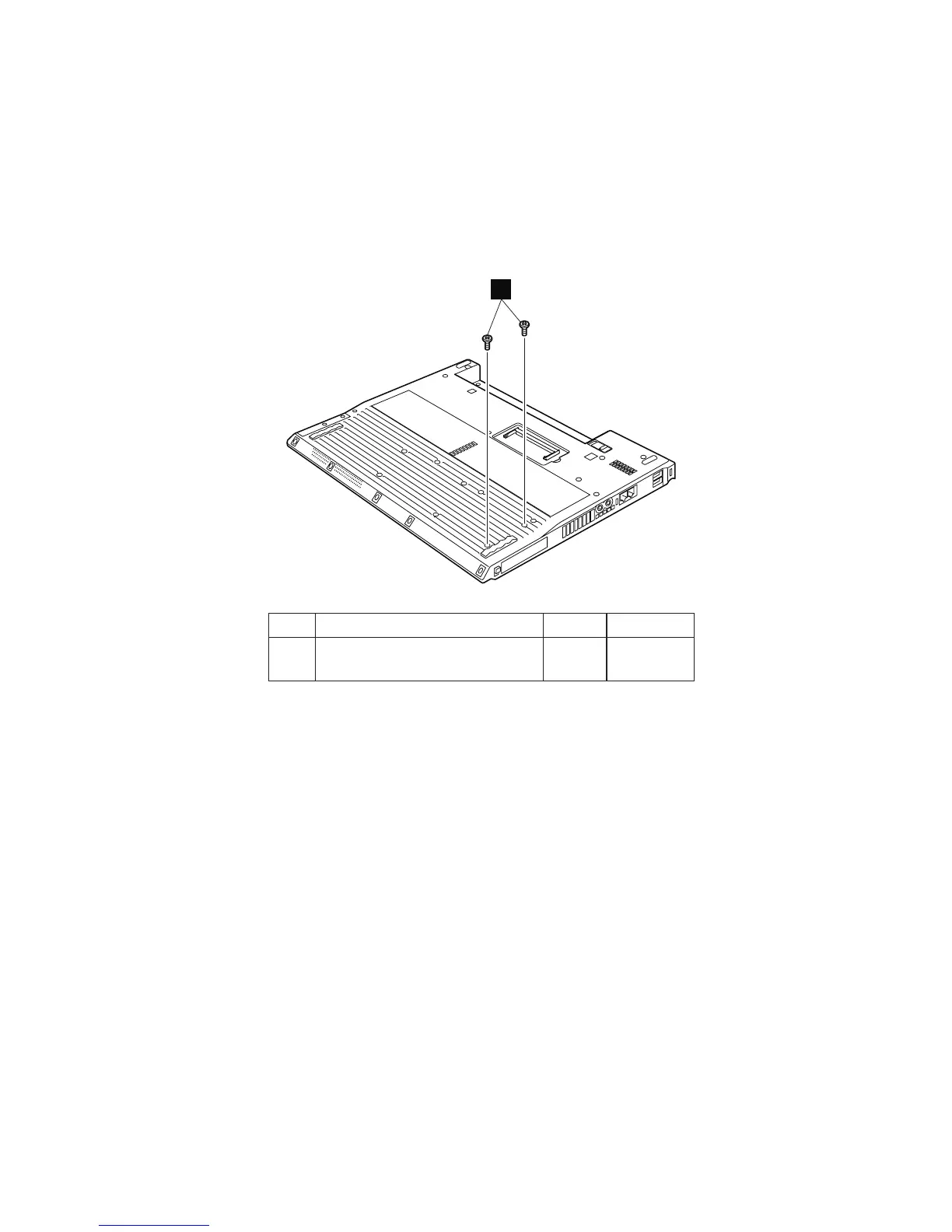

1180 PC Card slot assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 76
v “1030 Hard disk drive” on page 79
v “1050 Keyboard” on page 82
v “1100 Keyboard bezel” on page 92
v “1160 Speaker assembly” on page 106
v “1170 IEEE 1394 (for R52 series)” on page 108
1
Step Screw (quantity) Color Torque
1 M2 × 4 mm, flat-head,
nylon-coated (2)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad R50e, R51e and R52 Series 111
To Next Page
