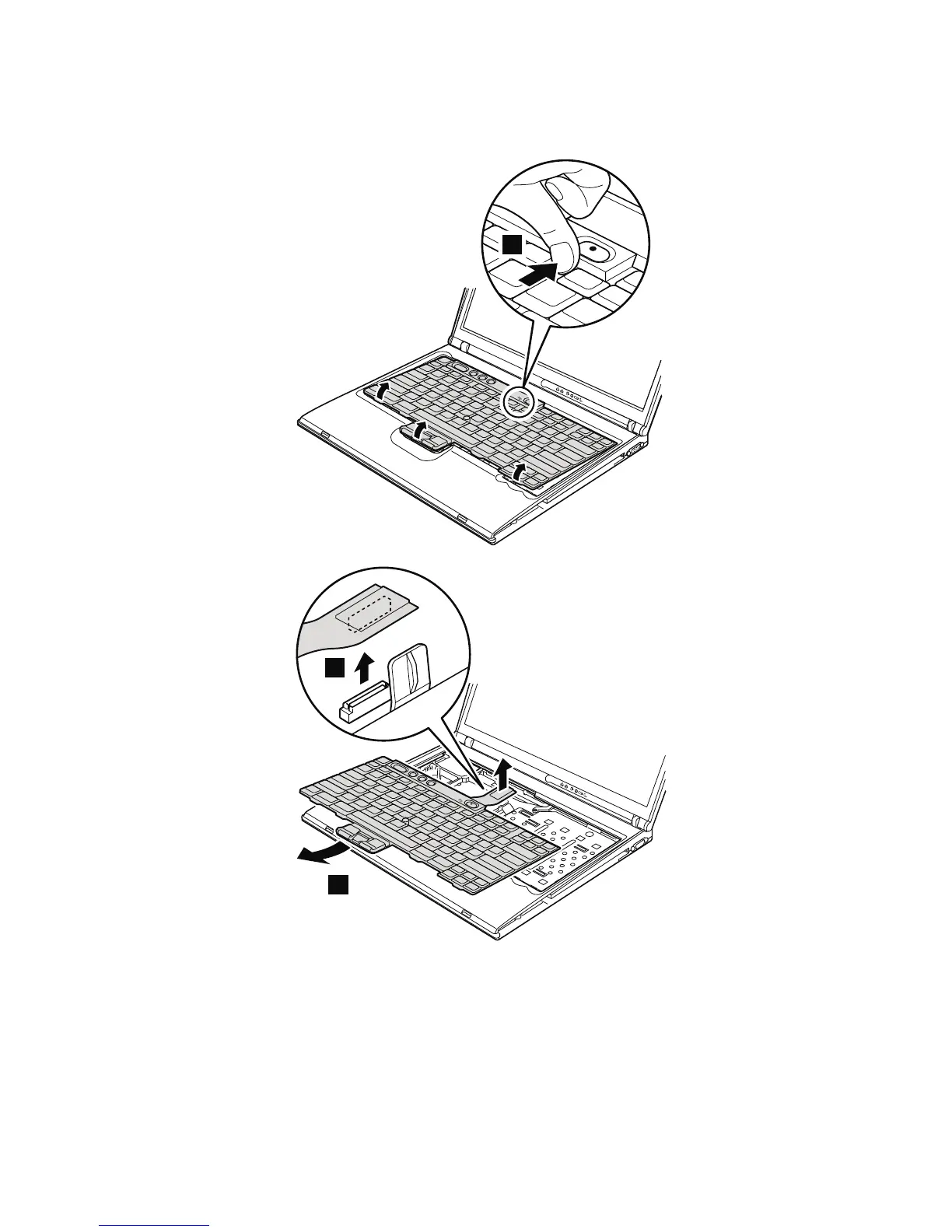

Press
the
part
indicated
by
the
arrow
2
in
the
direction
of
the
arrow
.
This
releases
the
latches
of
the
keyboard
from
the
frame,
so
that
the
front
side
of
the
keyboard
pops
out.
2
3
4
When
installing:
Make
sure
that
the
connector
4
is
firmly
attached.
Removing
and
replacing
a
FRU
ThinkPad
R50e,
R51e
and
R52
Series
83
88
90
Table of Contents
Default Chapter
3
Table of Contents
3
About this Manual
7
Introduction
9
Important Service Information
9
Strategy for Replacing Frus
9
Strategy for Replacing a Hard Disk Drive
10
How to Use Error Messages
10
Product Definition
10
Strategy for Replacing Frus for CTO, CMV, and GAV
10
FRU Identification for CTO, CMV, and GAV Products
11
Using the Hmm
12
Important Information about Replacing Rohs Compliant Frus
13
Diskette Compatibility Matrix
14
Safety Notices: Multilingual Translations
14
General Safety
26
Safety Information
26
Electrical Safety
27
Safety Inspection Guide
29
Handling Devices that Are Sensitive to Electrostatic Discharge
30
Grounding Requirements
31
Laser Compliance Statement
32
General Descriptions
35
Read this First
35
What to Do First
35
Related Service Information
37
Restoring the Pre-Installed System
37
Service Web Site
37
Passwords
38
How to Remove the Power-On Password
39
How to Remove the Hard-Disk Password
40
Power Management
41
Hibernation Mode
42
Checkout Guide
44
Testing the Computer
44
Detecting System Information with PC-Doctor
47
Power System Checkout
47
Checking Operational Charging
48
Checking the Ac Adapter
48
Checking the Battery Pack
48
Checking the Backup Battery
49
Thinkpad R50E, R51E and R52 Series
51
Product Overview
53
Specifications
53
Status Indicators
60
FRU Tests
63
Fn Key Combinations
65
Numeric Error Codes
68
Symptom-To-FRU Index
68
Error Messages
73
Beep Symptoms
74
No-Beep Symptoms
74
LCD-Related Symptoms
75
Intermittent Problems
76
Undetermined Problems
76
FRU Replacement Notices
77
Screw Notices
77
Retaining Serial Numbers
78
Restoring the Serial Number of the System Unit
78
Retaining the UUID
79
Reading or Writing the ECA Information
79
General Descriptions
26
Thinkpad R50E, R51E and R52 Series
30
Removing and Replacing a FRU
81
1010 Battery Pack
82
1020 Ultrabay Enhanced Device (for R52 Series)
83
1030 Hard Disk Drive
85
1040 DIMM (Optional)
87
1050 Keyboard
88
1060 Ultrabay Device (for R50E Series)
92
1070 DIMM (Standard)
93
1080 Modem Daughter Card (MDC-2)
94
1090 Bluetooth/Modem Daughter Card (BMDC-3) (for R52 Series)
96
1100 Keyboard Bezel
98
1110 Touch Pad and Fingerprint Reader (for R52 Series)
102
1100 Keyboard Bezel
102
1120 Mini PCI Adapter
105
1130 Fan Assembly
109
1140 Cpu
110
1150 Backup Battery
111
1160 Speaker Assembly
112
1170 IEEE 1394 (for R52 Series)
114
1180 PC Card Slot Assembly
117
1190 Ultrabay Enhanced Shield Kit
120
1200 LCD Assembly
127
1210 VGA and Ultrabay Enhanced Device Eject Button Cable
131
1220 System Board, Interposer Card, and Base Cover
134
2010 LCD Front Bezel
141
2020 Inverter Card
143
2030 LCD Panel, LCD Cable Assembly, Wireless LAN Antenna Assembly, Hinges, and LCD Cover
144
3010 Thinkpad Dock II PCI Cover
155
3020 Thinkpad Dock II Top Cover
156
Front View (for R50E)
159
Locations
159
Rear View (for R50E)
160
Bottom View (for R50E)
161
Front View (for R52)
162
Rear View (for R52)
164
Bottom View (for R52)
165
Overall
166
Parts List
166
LCD Frus
226
14.1-In. XGA TFT
227
15.0-In. XGA TFT
235
In. SXGA+ TFT
242
AC Adapters
246
Keyboard
247
For Windows XP Professional (R50E Series)
249
Recovery Cds
249
For Windows XP Home Edition (R50E Series)
250
For Windows XP Professional (R51E Series)
251
For Windows XP Home Edition (R51E Series)
252
For Windows XP Professional (R52 Series)
253
For Windows XP Home Edition (R52 Series)
257
Miscellaneous Parts
259
Optional Frus
265
Common Parts List
266
Power Cords (System)
266
Tools
266
Power Cords (Thinkpad Dock II)
268
Notices
269
Trademarks
271
