8.RemovethetwoscrewsthatsecuretheRAIDcardandthenremovethefull-heightbracketfromthe
RAIDcard.

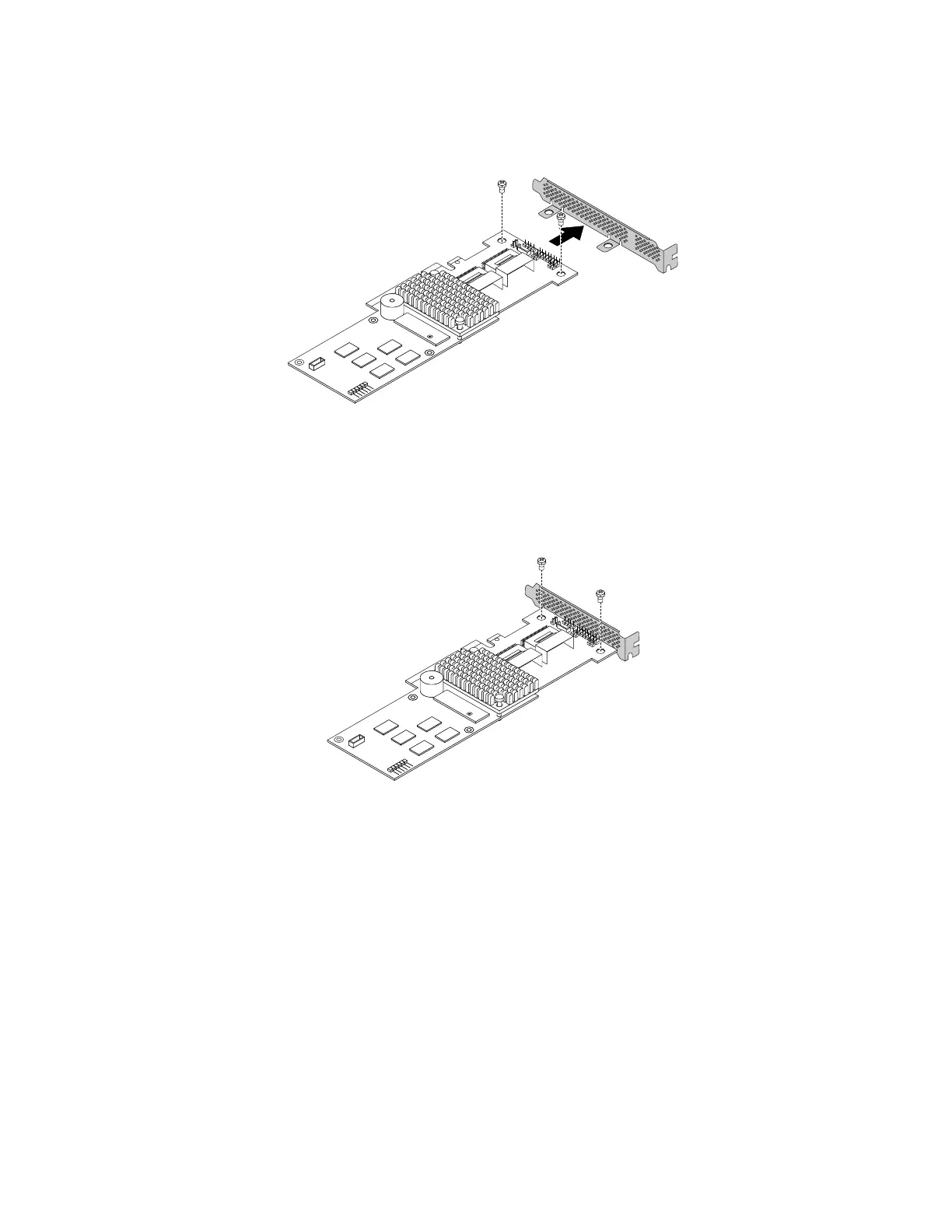

Figure50.Removingthefull-heightbracketfromtheRAIDcard
9.Notetheorientationofthelow-profilebracketandpositionitontheRAIDcard.Alignthetwoscrew
holesinthelow-profilebracketwiththecorrespondingscrewholesintheRAIDcardandtheninstallthe
screwstosecurethebracket.
Figure51.Installingthelow-profilebrackettotheRAIDcard
92ThinkServerRD340UserGuideandHardwareMaintenanceManual
