10.PositiontheRAIDcardnearthePCIExpresscardslot.EnsurethattheleftedgeoftheRAIDcardis
insertedintothenotchoftheRAIDcardretentionbracket
1.Then,carefullypresstheRAIDcard
straightintotheslotuntilitissecurelyseatedandthelow-profilebracketalsoissecuredbytheriser
cardassembly2.

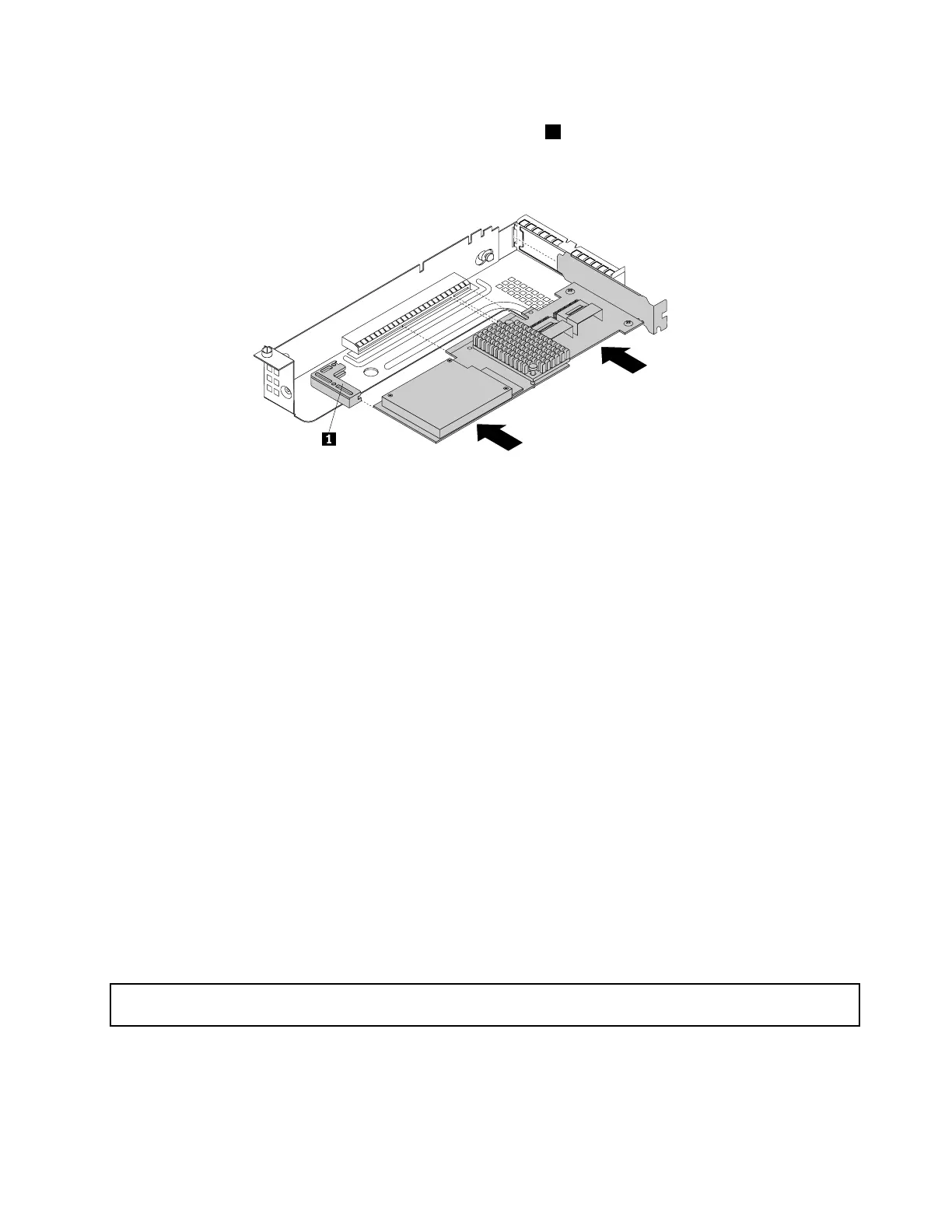

Figure52.InstallingtheRAIDcard
11.ConnectsignalcablestotheconnectorsonthenewRAIDcardandtheconnectorsonthehot-swap
hard-disk-drivebackplane.See“Connectingthecables”onpage36.
12.Reinstalltherisercardassembly2.Theprocedureissimilartothatoftherisercardassembly1.See
“Replacingtherisercardassembly1”onpage160.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletethereplacement,goto“Completingthepartsreplacement”onpage170
.Then,configure
RAIDforyourserver.See“ConfiguringRAID”onpage62
.
•AfteraLenovoRAIDcardisinstalled,dothefollowing:
1.ChecktheversionofthenewRAIDcardfirmwarebypressingCtrl+HwhenstartingtheSetup
Utilityprogram.
2.Gotohttp://www.lenovo.com/driversandfollowtheinstructionsontheWebpagetodownloadthe
latestversionoffirmware.Then,installthefirmwaretoyourserver.
Note:IfyouwanttousetheFirmwareUpdaterprogram,ensurethatitisthelatestversion.Togetthe
latestversionoftheFirmwareUpdaterprogram,gotohttp://www.lenovo.com/drivers,locatedifferent
versionsoftheprogram,andthenidentifythelatestversionbycomparingreadmefiles.Ifthelatest
versionoftheFirmwareUpdaterprogramdoesnotcontainthelatestversionofthedriveryouneed,
downloadthatdriverseparatelyfromtheWebpageandinstallitindividuallytoyourserver.
RemovingtheRAIDcard
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiiiand“Guidelines”onpage73.
ThistopicprovidesinstructionsonhowtoremovetheRAIDcard.Thistopicappliesonlytomodelsthathave
aRAIDcardinstalled.
Chapter6.Installing,removing,orreplacinghardware93
