6.Locatethemicroprocessorsocket,pressdownthesmallhandleonthemicroprocessorsocket,and
thenpullthehandleslightlyoutwardtoreleaseitfromthesecuredposition.Then,gentlypressthe
microprocessorretainertoopenit.Ensurethatthesmallhandleandthemicroprocessorretainerarein
thefullyopenposition.

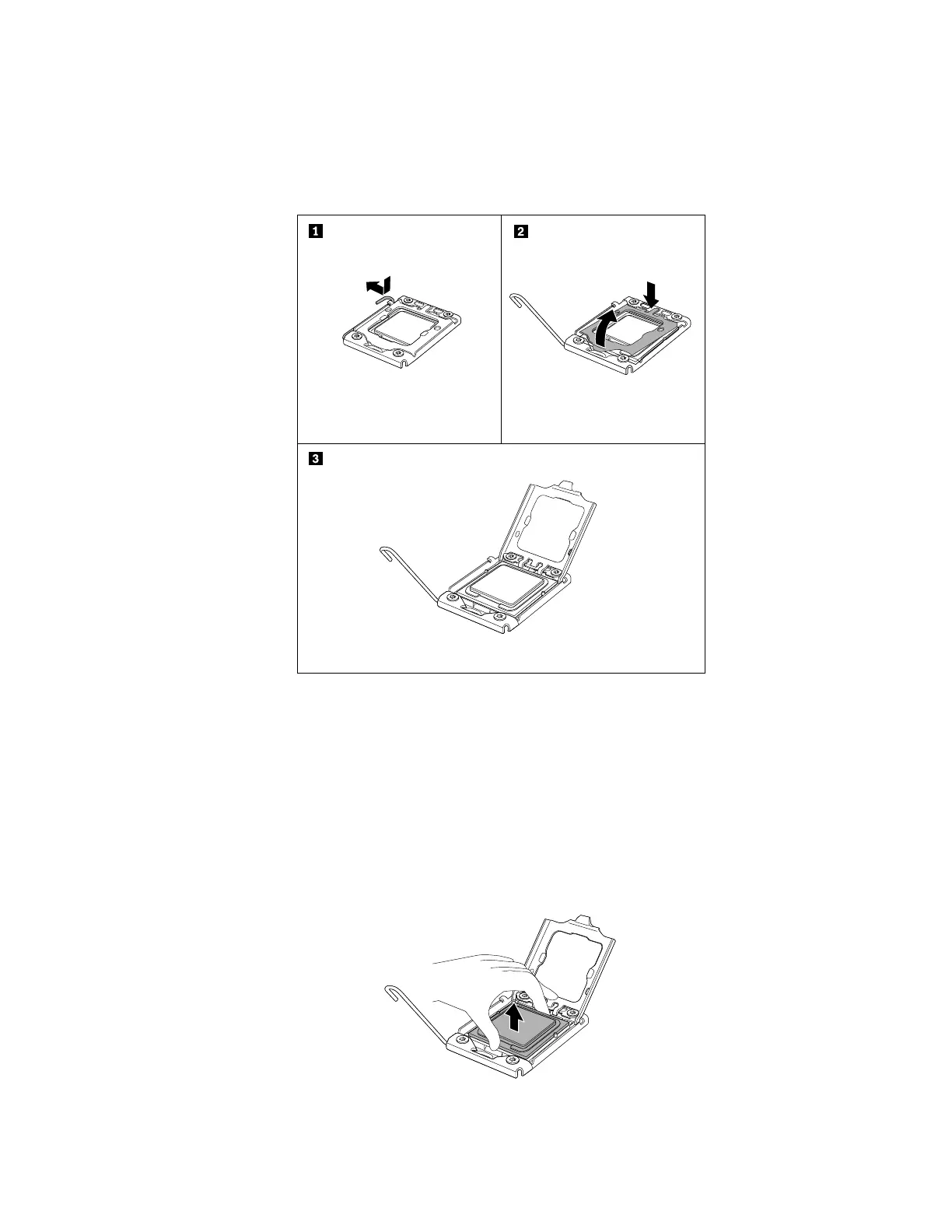

Figure74.Openingthehandleandmicroprocessorretainer
7.Touchonlytheedgesofthemicroprocessorandcarefullyliftitstraightupandoutofthemicroprocessor
socket.Placetheoldmicroprocessoronastatic-protectivesurface.
Notes:
•Donottouchthegoldcontactsonthebottomofthemicroprocessor.
•Donotdropanythingontothemicroprocessorsocketwhileitisexposed.Thesocketpinsmustbe
keptascleanaspossible.
Figure75.Removingthemicroprocessor
Chapter6.Installing,removing,orreplacinghardware125
