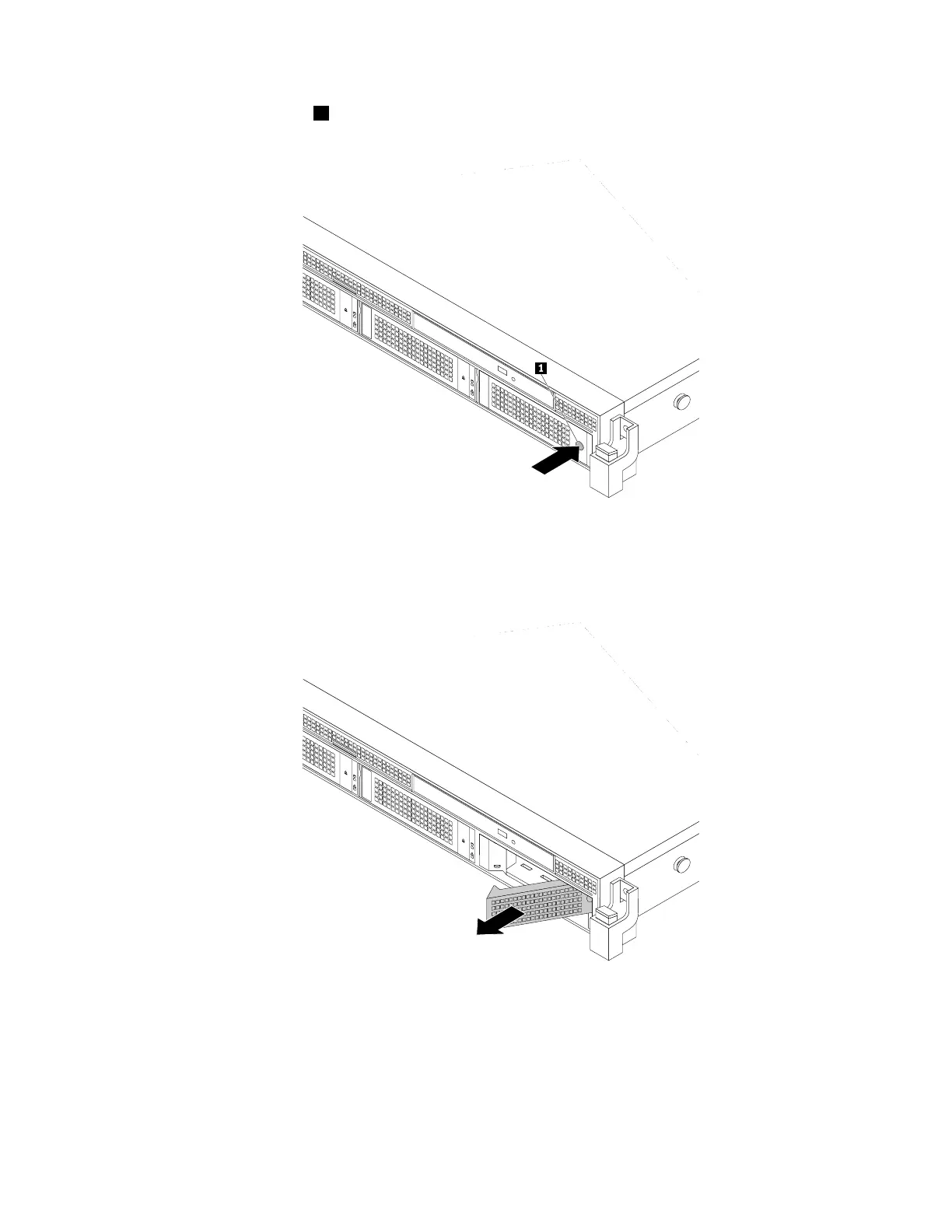

2.Pressthereleasebutton1toopenthehandleofthedummyhard-disk-drivetray.
Figure84.Openingthehandleofthedummyhard-disk-drivetray
3.Pullthehandleandcarefullyslidethedummyhard-disk-drivetrayoutofthefrontofthechassis.
Figure85.Removingthedummyhard-disk-drivetray
4.Touchthestatic-protectivepackagethatcontainsthe2.5-inchsolid-statedrivetoanyunpaintedsurface
ontheoutsideoftheserver.Then,takethesolid-statedriveoutofthepackage.
Note:Donottouchthecircuitboardonthesolid-statedrive.
Chapter6.Installing,removing,orreplacinghardware133
