1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage75.
4.Removethecoolingshroud.See“Removingandreinstallingthecoolingshroud”onpage79.
5.Locatetherisercardassembly1.See“Servercomponents”onpage25.
6.Grasptherisercardassembly1byitsedgesandcarefullyliftitstraightupandoffthechassis.

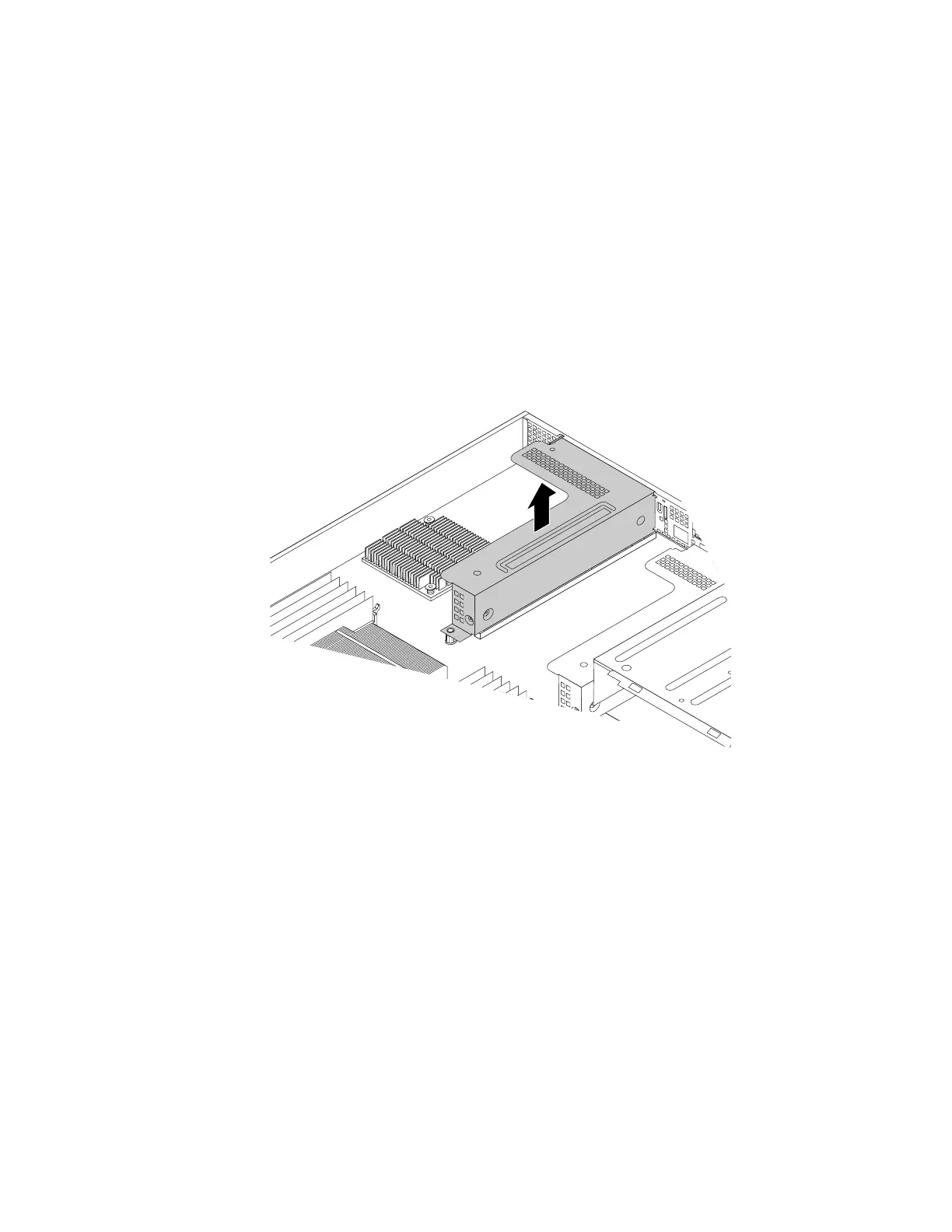

Figure120.Liftingtherisercardassembly1offthechassis
7.IfthereisanyPCIExpresscard(suchasanEthernetcard)installedontherisercardassembly1,note
downthecableconnections,disconnectallcablesfromthecard,andthencompletelyremovetheriser
cardassembly1outofthechassis.Then,removethePCIExpresscardfromtherisercardassembly1.
See“RemovingtheEthernetcard”onpage89
.
8.Touchthestatic-protectivepackagethatcontainsthenewrisercardassembly1toanyunpainted
surfaceontheoutsideoftheserver.Then,takethenewrisercardassembly1outofthepackage.
Chapter6.Installing,removing,orreplacinghardware161
