7. Open the retaining clips and, if necessary, remove any existing DIMM.
8. Touch the static-protective package that contains the DIMM to any unpainted
metal surface on the server. Then, remove the new DIMM from the package.
9. Turn the DIMM so that the DIMM keys align correctly with the slot.

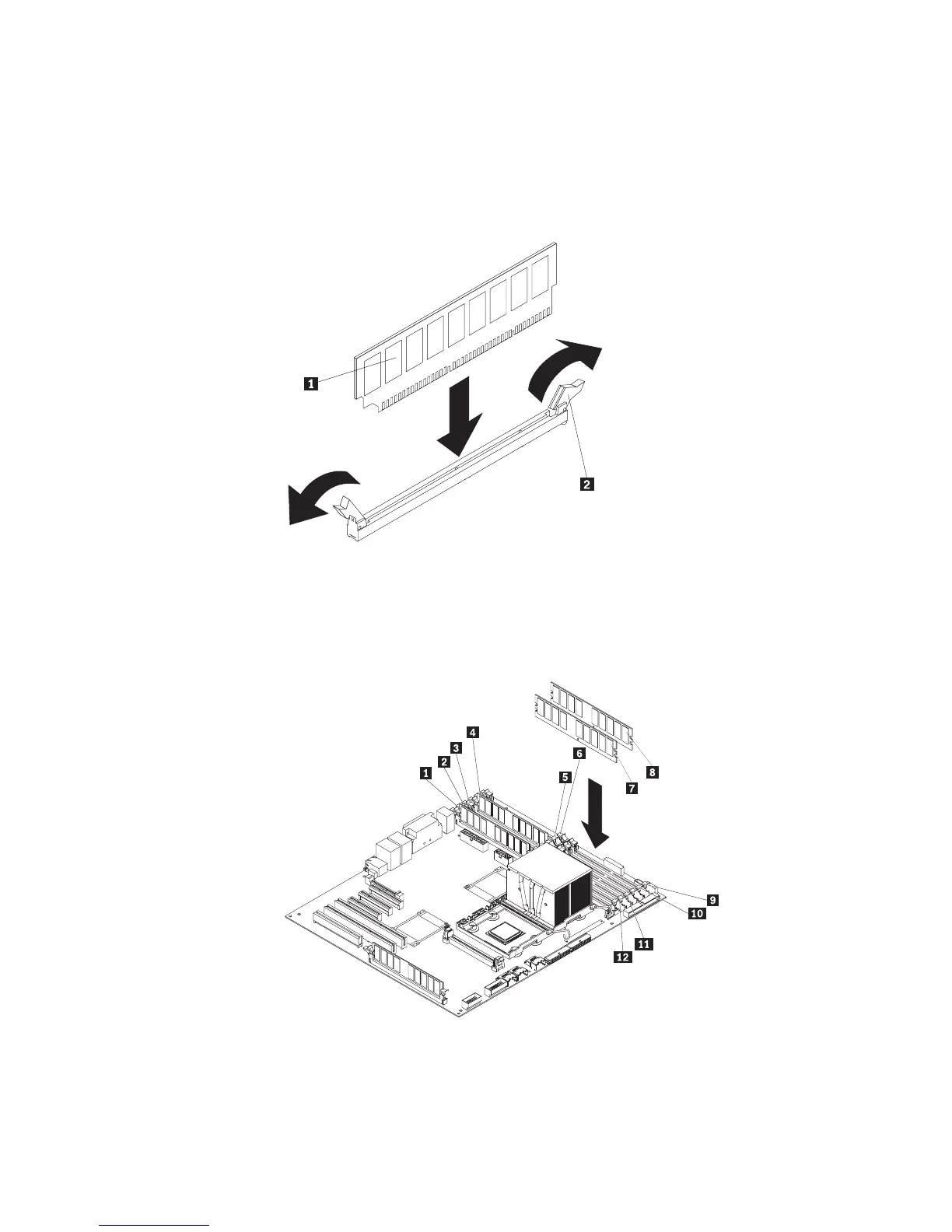

10. Insert the DIMM into the connector by aligning the edges of the DIMM with the
slots at the ends of the DIMM connector1 and 2.
11. Firmly press the DIMM straight down into the connector by applying pressure
on both ends of the DIMM simultaneously. The retaining clips snap into the
locked position when the DIMM is firmly seated in the connector. If there is a
gap between the DIMM and the retaining clips, the DIMM has not been
correctly installed. Open the retaining clips, remove the DIMM, and then
reinsert it.
1 DIMM 1 connector 7 DIMM 7
2 DIMM 2 connector 8 DIMM 10
3 DIMM 3 connector 9 DIMM 12 connector
4 DIMM 4 connector 10 DIMM 11 connector
5 DIMM 5 connector 11 DIMM 9 connector
32 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
