4. If you are instructed to return the hot-swap fan to Lenovo, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
5. Touch the static-protective package that contains the hot-swap fan to any
unpainted metal surface on the server; then, remove the fan from the package
and place it on a static-protective surface.

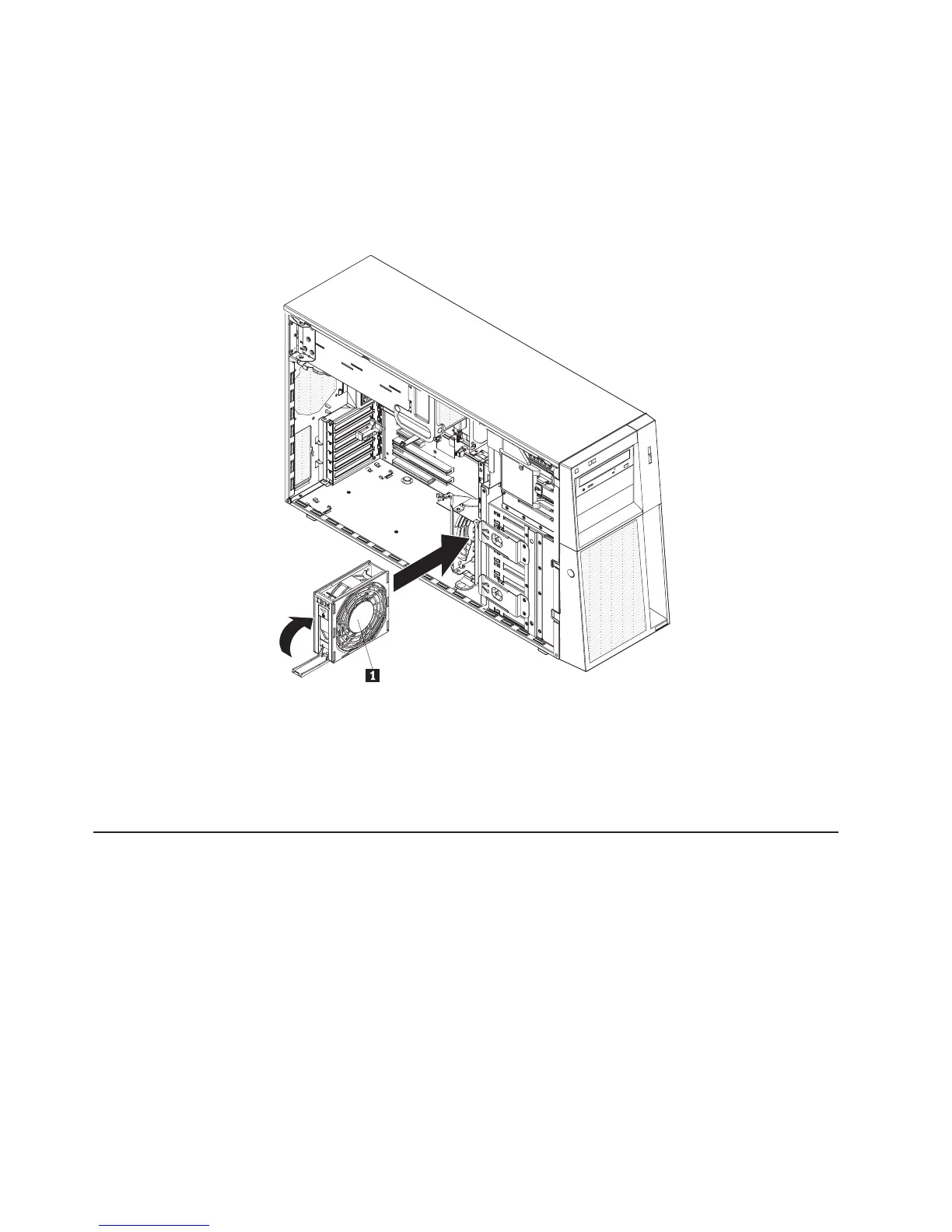

6. Align the fan 1 over the fan slot.
7. Lower the fan into the slot and press down on the fan until it locks into place;
then close the handle to the locked position.
8. Install the side cover (see “Reinstalling the side cover” on page 57).
If you have other options to install or remove, do so now; otherwise go to
“Completing the installation” on page 55.
Installing the ServeRAID 8k-l adapter (TD100 models)
The IBM ServeRAID 8k-l adapter must be installed in its dedicated connector on the
system board. See the illustration in the following procedure for the location of the
connector on the system board. The ServeRAID 8k-l adapter is not cabled to the
system board and no rerouting of the SCSI cable is required.
To install the ServeRAID 8k-l adapter, complete the following steps:
1. Read the safety information beginning on page v, and “Installation guidelines”
on page 20.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cables. Remove the side cover (see “Removing the side cover” on
page 25.
Attention: To avoid breaking the retaining clips or damaging the ServeRAID
8k-l adapter connector 1, open and close the clips gently.
3. Open the retaining clip on each end of the ServeRAID 8k-l adapter connector.
50 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
