Connecting the cables
Attention: To prevent damage to equipment, connect the power cords last.
If the server cables and connector panel have color-coded connections, match the
color of the cable end with the color of the connector. For example, match a blue
cable end with a blue panel connector, a red cable end with a red connector, and
so on.

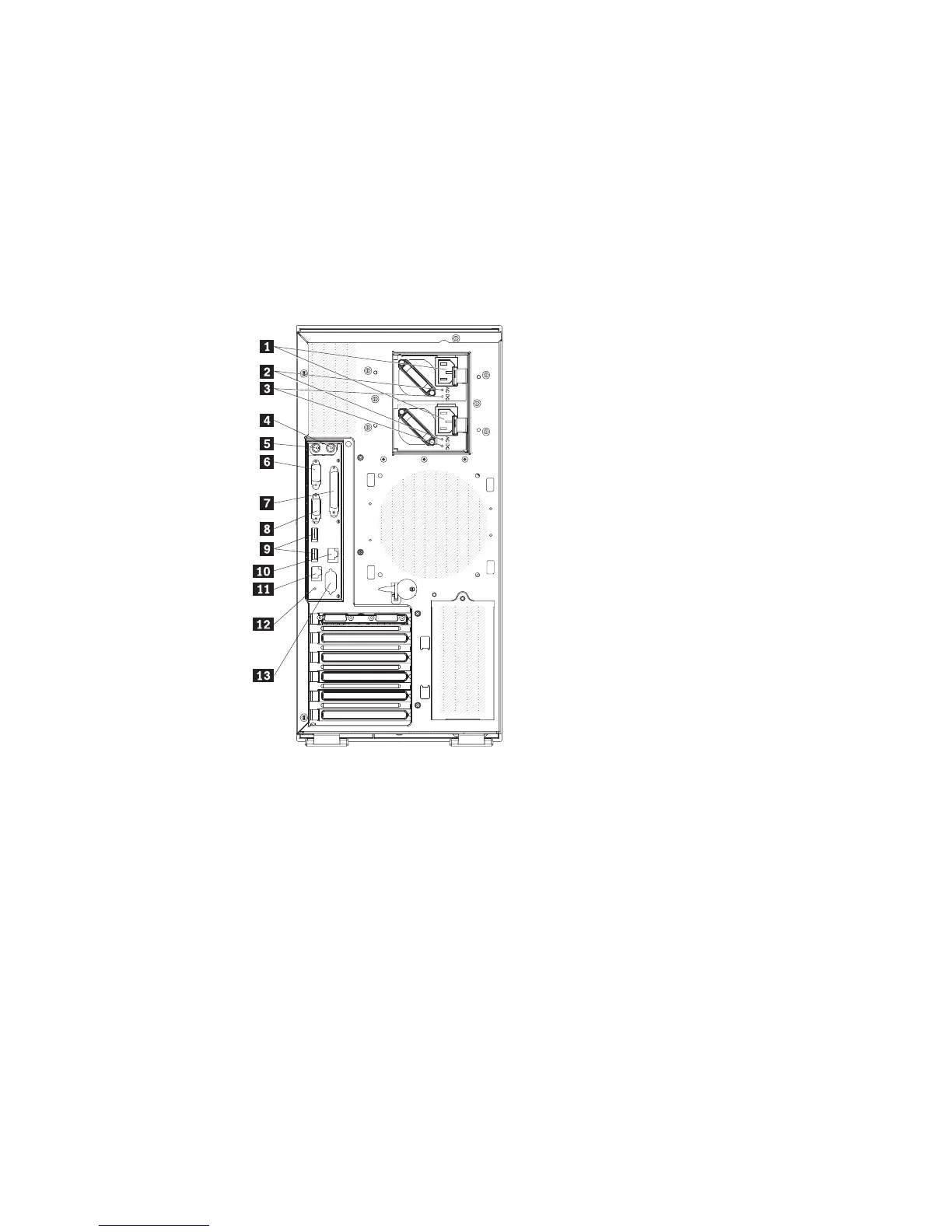

The following illustration shows the input/output (I/O) connectors on the rear of the
hot-swap power supply models with optional redundant power.
1 Power cord connectors 8 Video connector
2 AC power LEDs 9 USB connectors 3 and 4
3 DC power LEDs 10 (RJ45) Ethernet 10/100/1000
connector
4 Mouse connector 11 (RJ45) Ethernet 10/100 (for Remote
Supervisor Adapter II SlimLine)
connector
5 Keyboard connector 12 NMI button
6 Serial 1 (COM 1) connector 13 Serial 2 (COM 2) connector
7 Parallel connector
The following illustration shows the input/output (I/O) connectors on the rear of the
non-hot-swap power supply models.
58 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
