v PCI slot 6 supports half-length 5.0 V PCI adapters only.
v PCI slot 1 supports half-length 3.3 V PCI adapters only.
v PCI slots 2 through 5 support full-length 3.3 V signaling adapters only.
v For a list of supported optional devices for the server, go to:
http://www.lenovo.com/thinkserver.
Note:
For models that have the ServeRAID-8k SAS controller installed, the
ServeRAID-8k SAS controller overrides the standard functionality of the integrated
SAS/SATA controller with RAID capabilities.
To install an adapter, complete the following steps:
1. Read the safety information that begins on page v and “Installation guidelines”
on page 20.
2. Turn off the server and peripheral devices and disconnect all external cables
and power cords; then, remove the side cover. See “Removing the side cover”
on page 25.
3. Follow the cabling instructions that come with the adapter to set jumpers or
switches, if there are any. Route the adapter cables before you install the
adapter.
4. Rotate the rear adapter-retention bracket to the open (unlocked) position.
5. If you are installing a full-length adapter, press on the release lever on the right
side of the front adapter-retention bracket to release the retaining tab on the
left side of the bracket.
6. Remove the screw that secures the expansion-slot cover to the chassis. Store
the expansion-slot cover and screw in a safe place for future use.
Note: Expansion-slot covers must be installed on all vacant slots. This
maintains the electronic emissions standards of the server and ensures proper
ventilation of server components.
7. Touch the static-protective package that contains the adapter to any unpainted
metal surface on the server. Then, remove the adapter from the
static-protective package. Avoid touching the components and gold-edge
connectors on the adapter.

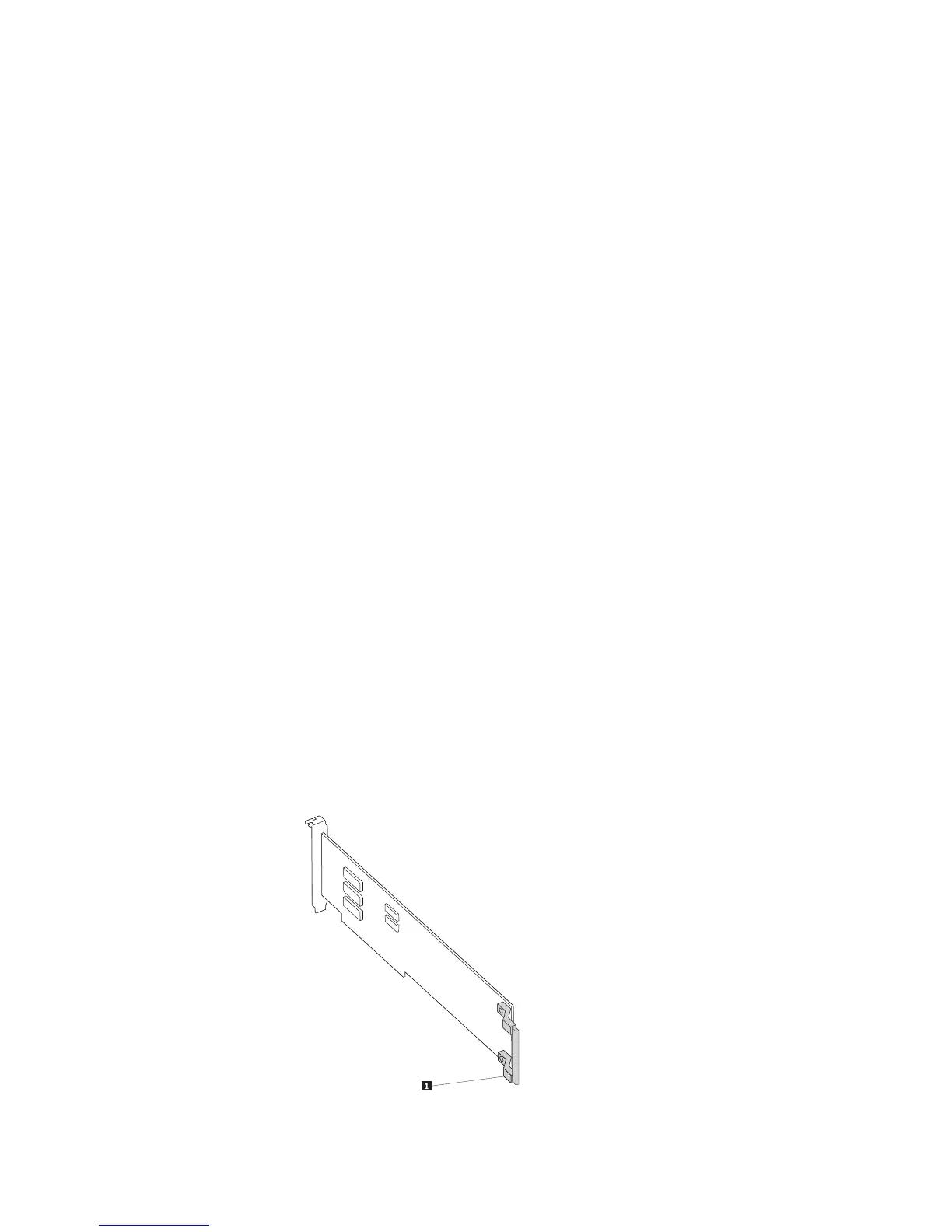

8. If you are installing a full-length adapter, remove the adapter guide 1 (if any)
from the end of the adapter.
Chapter 2. Installing optional devices 41
