Lenze AC Tech PositionServo 941 - 3 Dimensions; Positionservo Dimensions

S94P01C -e1
11
3 Dimensions

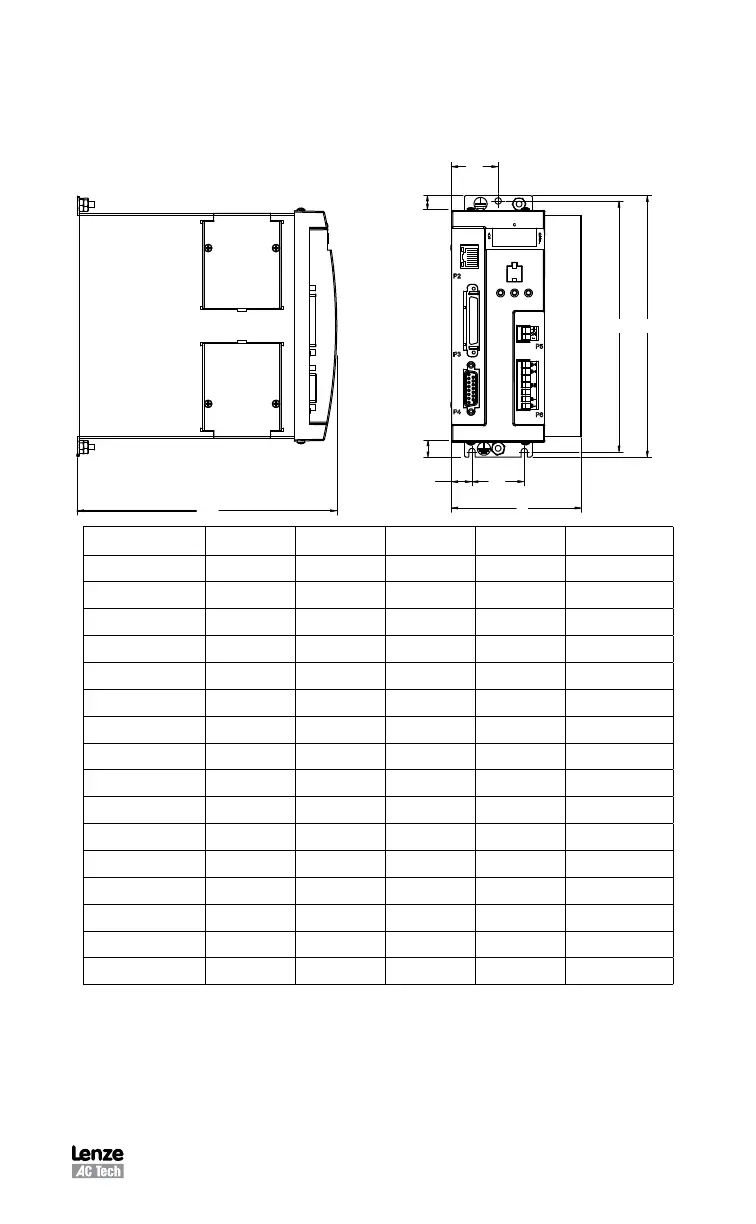

3.1 PositionServo Dimensions
8
&*
&'
&'
6
(-
9 7
()
S923
Type
(1)
A (mm) B (mm) C (mm) D (mm) Weight (kg)
E94_020S1N_X 67 190 190 182 1.1
E94_040S1N_X 69 190 190 182 1.2
E94_020S2F_X 67 190 235 182 1.3
E94_040S2F_X 69 190 235 182 1.5
E94_080S2F_X 88 190 235 182 1.9
E94_100S2F_X 103 190 235 182 2.2
E94_020Y2N_X 67 190 190 182 1.3
E94_040Y2N_X 69 190 190 182 1.5
E94_080Y2N_X 95 190 190 182 1.9
E94_120Y2N_X 67 190 235 182 1.5
E94_180T2N_X 67 242 235 233 2.0
E94_020T4N_X 69 190 190 182 1.5
E94_040T4N_X 95 190 190 182 1.9
E94_050T4N_X 115 190 190 182 2.2
E94_060T4N_X 67 190 235 182 1.4
E94_090T4N_X 67 242 235 233 2.0
(1)
The first “_” equals either “P” for the Model 940 encoder based drive OR an “R” for the Model 941 resolver
based drive.
(2)
The second “_” equals either “E” for incremental encoder (must have E94P drive) OR an “R” for the standard
resolver (must have E94R drive).
