Lenze C 750

Product informaon
Features

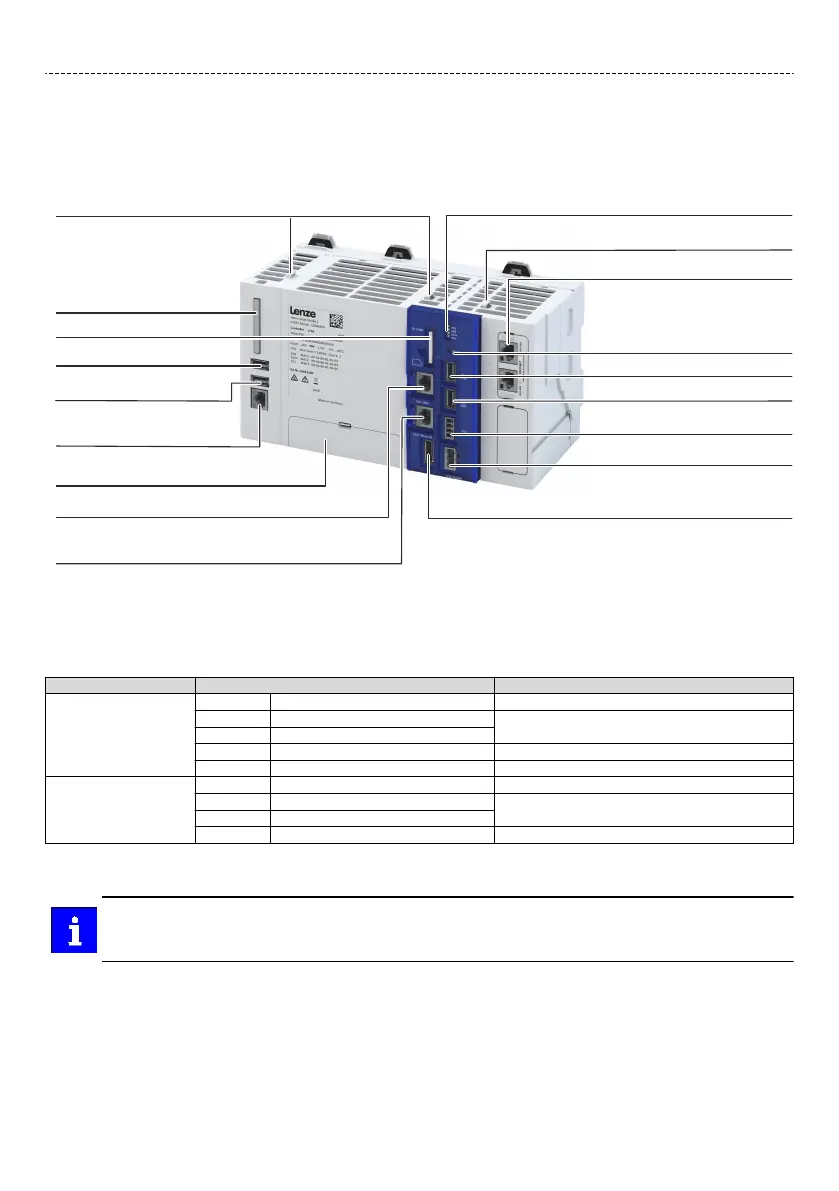

Controller c750
Status LEDs
CFast card
X50
X53
24 V supply
X237
EtherCat master
X64
USB4
SD card
X61
X63
USB1
USB3
X62
USB2
Fan (replaceable)
X16
Ethernet
Commissioning, diagnostics
X12
Ethernet2
Cable fixing
Cable fixing (also available on base)
PE connection
Reserved for future
function extension
Reset
X2x6, X2x7
PROFINET device
Option
X68
DisplayPort
The USB interfaces are used for connecng peripherals with USB connecon.
The DisplayPort is used to connect a monitor or mulfuncon touchscreen.
Operang system Interface Technical specicaon
Real-Time Linux
(PLC area)
X16 Ethernet Gigabit LAN (1000 Mbit/s)
X61 USB1 USB 2.0 (max. current = 0.5 A)
X62 USB2
X237 EtherCat master
X2x6, X2x7 PROFINET device (opon)
Windows 10 IoT
(Open system)
X12 Ethernet2 Gigabit LAN (1000 Mbit/s)
X63 USB3 USB 3.0 (max. current = 0.5 A)
X64 USB4
X68 DisplayPort DisplayPort 1.2
Licence informaon
Lenze Soware may contain soware elements that are licensed as free soware or open source.
The licensing terms and condions of the open source soware components used in this product
can be found in the "License" directory on the SD card included in the product.
