Lenze E82EV113K4C - Fig. 5.3-7 DIN Rail Mounting 0.25

Basic units in the power range 0.25 ... 2.2 kW
DIN rail mounting
5
Basic device installation
5.3
5.3.4
L
5.3-8
EDS82EV903-1.0-11/2002
5.3.4 DIN rail mounting
)
))
) Note!
This mounting variant does not enable a CE-typical drive system
to be installed.
The accessories for DIN rail mounting are not included in the delivery package.
Order number: E82ZJ002 for 8200 vector 0.25 ... 2.2 kW
820vec025

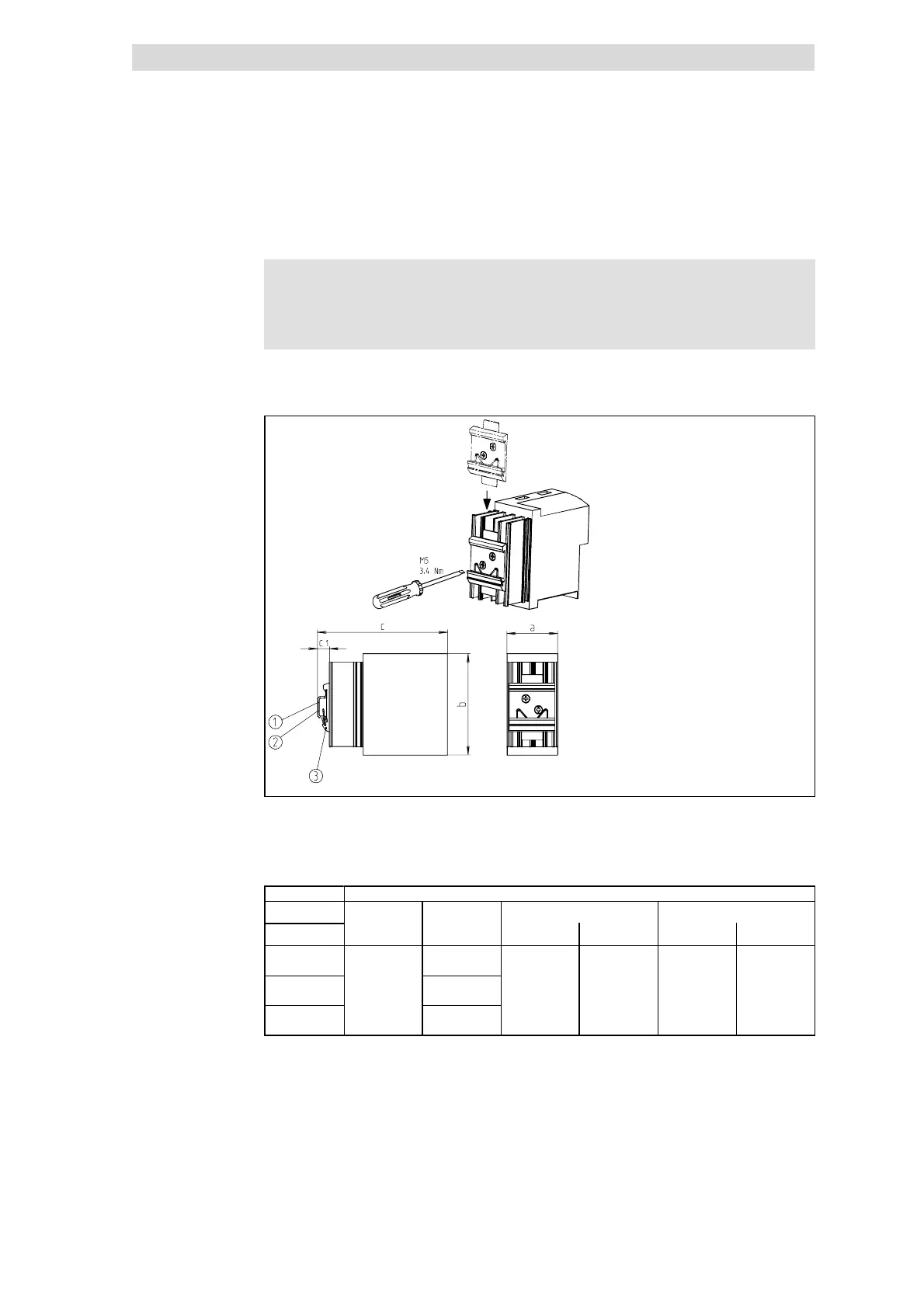

Fig. 5.3-7 DIN rail mounting 0.25 ... 2.2 kW

DIN rail 35 x 15

DIN rail 35 x 7.5

DIN rail mounting
Dimensions [mm]
a b c c
1
8200 vector    
E82EV251K2C
E82EV371K2C
120
E82EV551KxC
E82EV751KxC
60
180
158 151 18 11
E82EV152KxC
E82EV222KxC
240
