6 Electrical installation
Cable cross−sections and screw−tightening torques
EDK82ZAFIC−010 DE/EN/FR 4.058

H2_LtgQuer+AnzMom−Steckerleiste_Federkraft
Cable cross−sections and screw−tightening torques

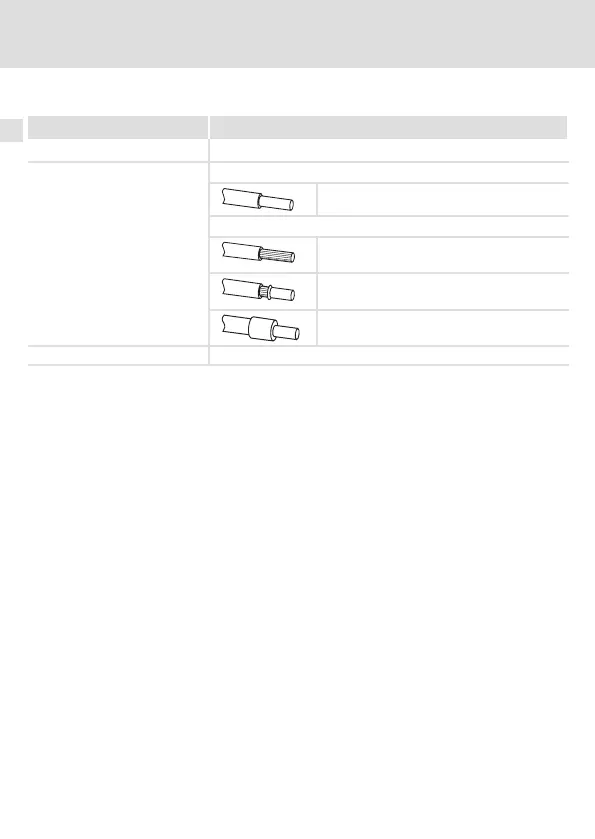

Area Values
Electrical connection Plug connector with spring connection
Possible connections
rigid:
1.5 mm
2
(AWG 16)
flexible:
without wire end ferrule
1.5 mm
2
(AWG 16)
with wire end ferrule, without plastic sleeve
1.5 mm
2
(AWG 16)
with wire end ferrule, with plastic sleeve
0.5 mm
2
(AWG 20)
Stripping length 9 mm
