Communication manual 8400 motec PROFIBUS
Product description
Connections and interfaces
16 L EDS84DMOTPBUS EN 3.0 - 11/2011
3.3 Connections and interfaces

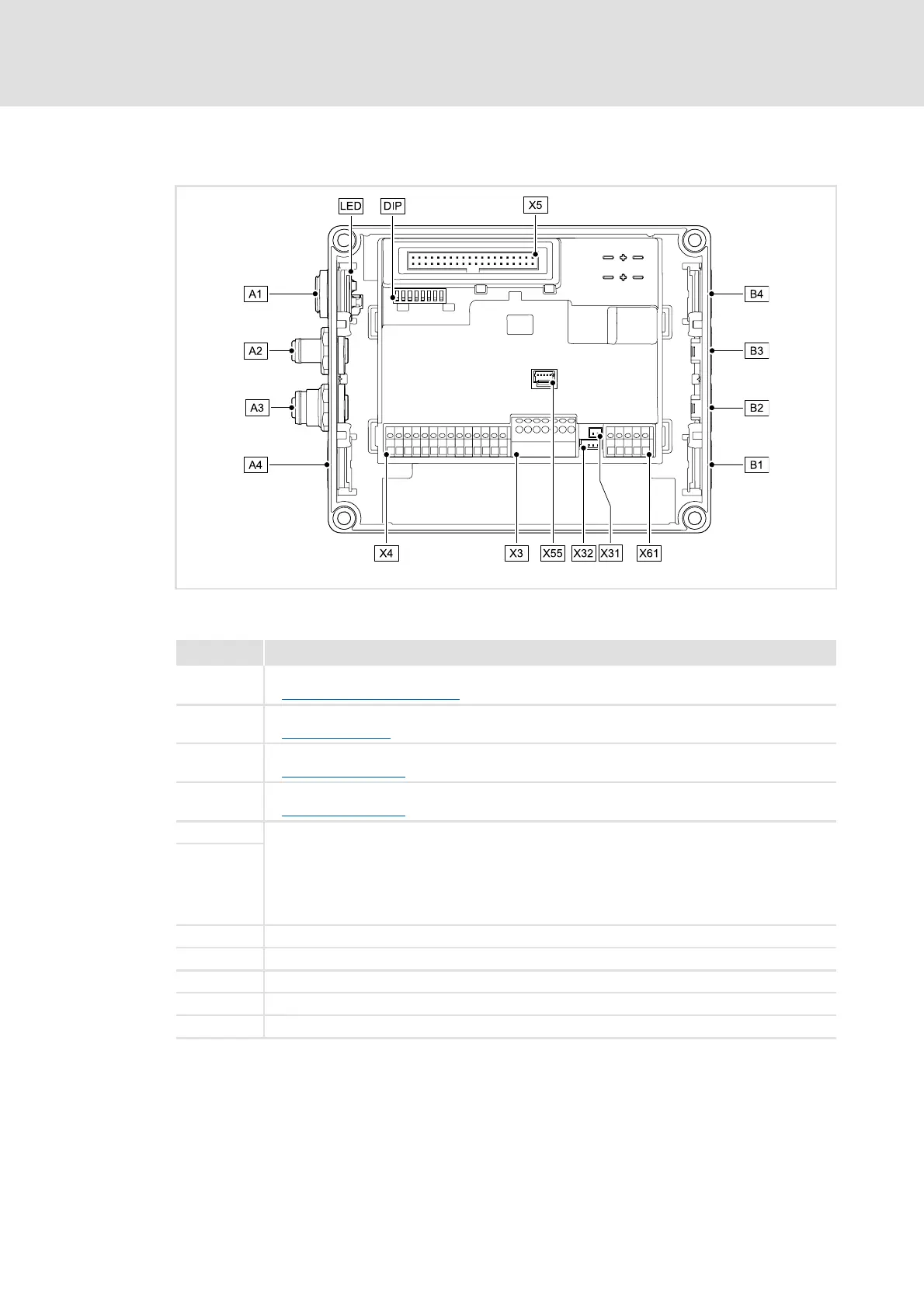

[3-1] Communication unit PROFIBUS
E84DG029
Pos. Description
DIP DIP switch
Possible settings via DIP switch
( 30)
A1 / LED Position of LEDs for PROFIBUS status display
LED status displays
( 72)
A2 PROFIBUS input (M12 male, 5-pin)
PROFIBUS connection
( 26)
A3 PROFIBUS output (M12 female, 5-pin)
PROFIBUS connection
( 26)
A4 Positions for more freely designable inputs and outputs:
• Digital inputs
•Digital output
• Analog input (only for E84DGFCPxJx)
• Relay output (only for E84DGFCPxJx)
• Connection of safety system "Safety Option" (only for E84DGFCPxJx)
B1 ... B4
X3 / X4 / X61 Terminal strips for wiring the connections at A4 and B1 ... B4
X5 Plug connector for connection to the drive unit
X31 Plug connector for wiring the PROFIBUS input at A2
X32 Plug connector for wiring the PROFIBUS output at A3
X55 Plug connector for wiring the LEDs at A1
