Communication manual 8400 motec PROFIBUS

Installation

Electrical installation

26 L EDS84DMOTPBUS EN 3.0 - 11/2011

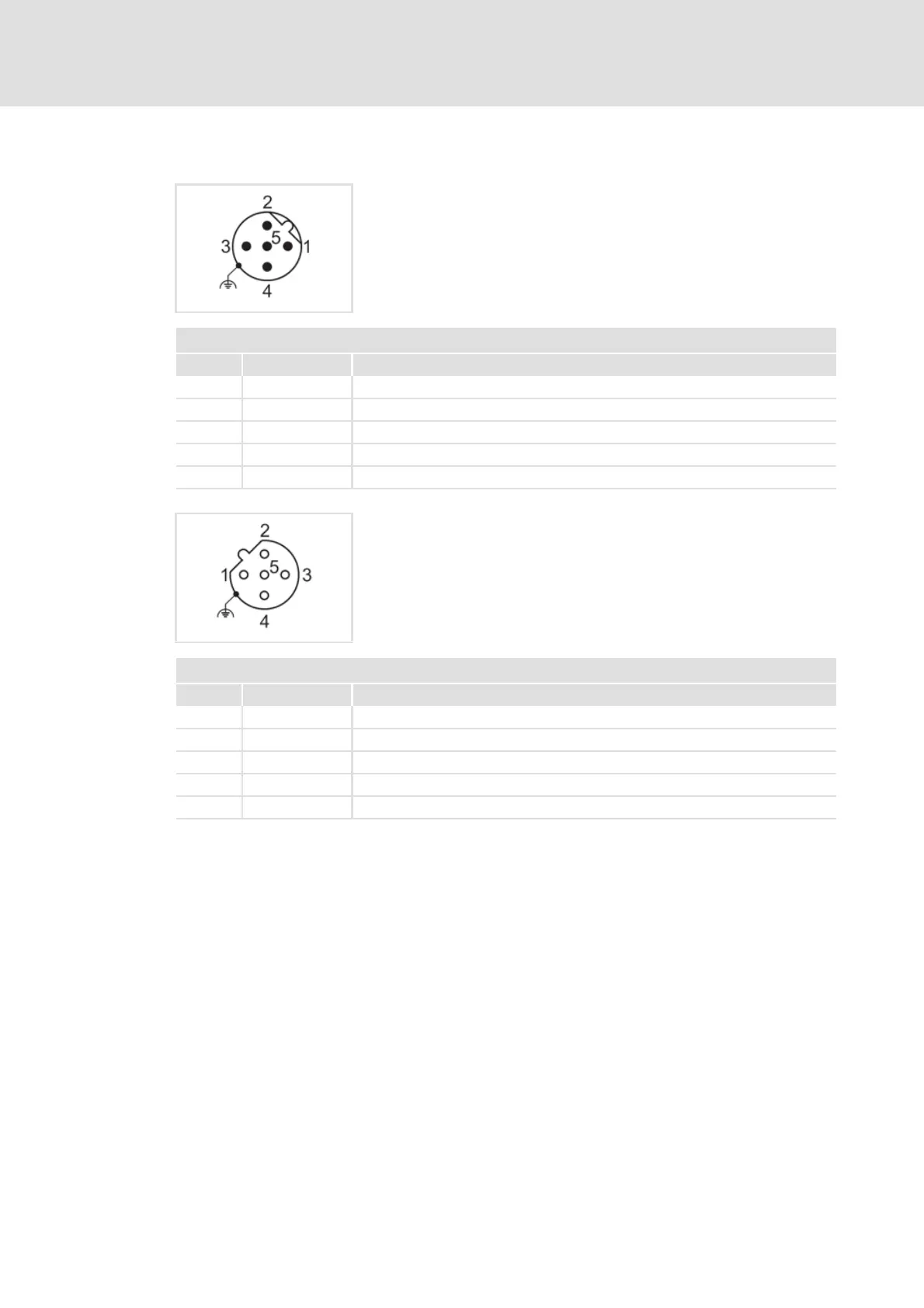

5.2.4 PROFIBUS connection

 PROFIBUS input: M12 pins, 5-pole, B-coded

 Wiring at terminal strip X31

PROFIBUS input

Pin Signal Description

1 - Not assigned

2 RxD/TxD-N (A) Data line A (received/transmitted data, minus)

3 - Not assigned

4 RxD/TxD-P (B) Data line B (received/transmitted data, plus)

5 - Not assigned

 PROFIBUS output: M12 socket, 5-pole, B-coded

 Wiring at terminal strip X32

PROFIBUS output

Pin Signal Description

1 P5V2 5 V DC / 30 mA (bus termination)

2 RxD/TxD-N (A) Data line A (received/transmitted data, minus)

3 M5V2 Data ground (ground to 5 V)

4 RxD/TxD-P (B) Data line B (received/transmitted data, plus)

5 - Not assigned (shield connection via housing)
