Elektrische Installation
Steueranschlüsse
Analog−Eingang
5
47
EDKCSEX064 DE/EN/FR 6.0
Konfiguration Analog−Eingang
ƒ Stellen Sie über C0034 ein, ob der Eingang für eine Leitspannung (±10 V)
oder einen Leitstrom (+4 ... 20 mA oder ±20 mA) verwendet werden soll.
ƒ Jumperleiste X3 entsprechend der Einstellung in C0034 setzen:
Stop!
Jumper nicht auf die Pins 3−4 stecken! Das Achsmodul kann so nicht
initialisiert werden.

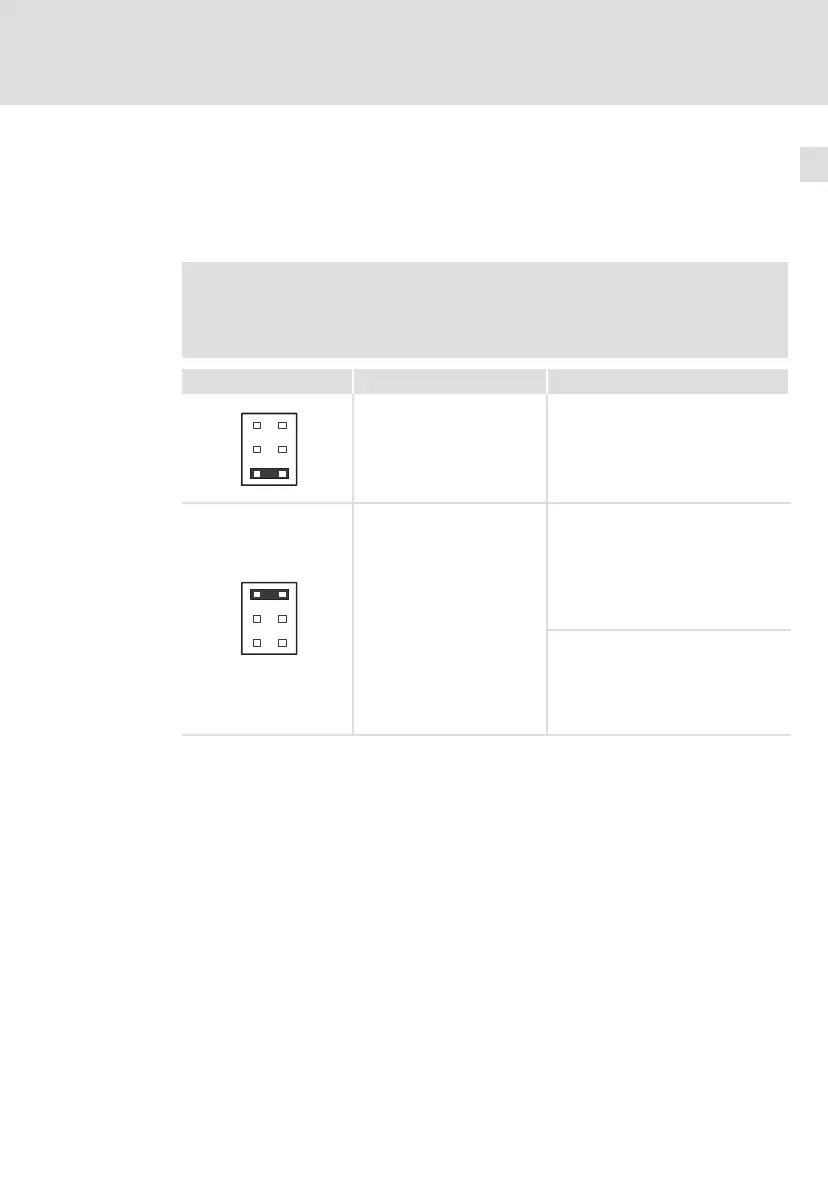

Jumperleiste X3 Einstellung Messbereich
6
4
2
5
3
1
5−6 offen
Jumper auf 1−2: Parkstellung
C0034 = 0 (Leitspannung)
l Pegel: −10 ... +10 V
l Auflösung: 5 mV (11 Bit + Vorzei-
chen)
l Normierung:
±10 V º ±16384 º ±100 %
6
4
2
5
3
1
5−6 geschlossen
C0034 = 1 (Leitstrom)
l Pegel: +4 ... +20 mA
l Auflösung: 20 mA (10 Bit ohne Vor-
zeichen)
l Normierung:
+4 mA º 0 º 0 %
+20 mA º 16384 º 100 %
C0034 = 2 (Leitstrom)
l Pegel: −20 ... +20 mA
l Auflösung: 20 mA (10 Bit + Vorzei-
chen)
l Normierung:
±20 mA º ±16384 º ±100 %
