Installation according to EMC
EDK10200EV3 DE/EN/FR 5.0
L
PS
PES
PES
PE
PE
PE
1
3
0
120
2

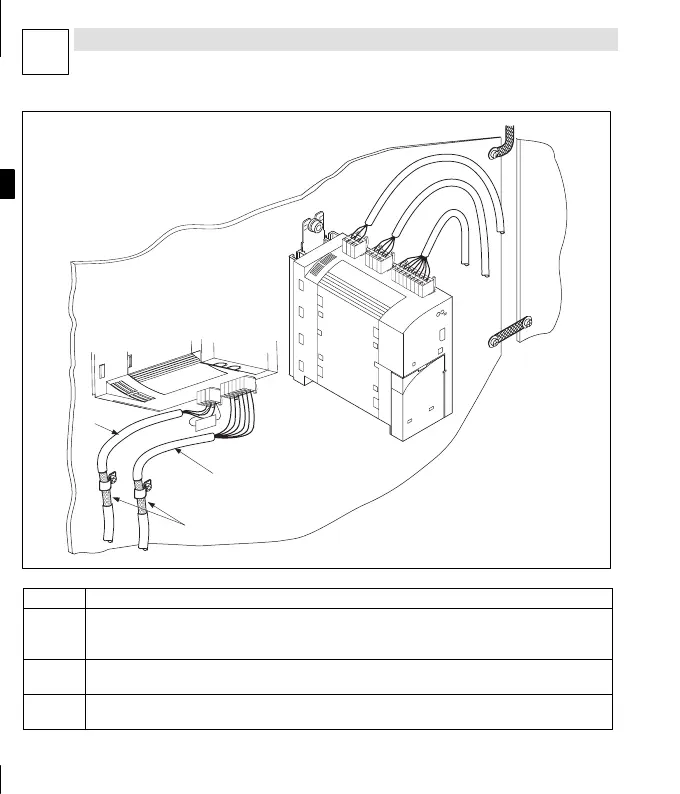

Abb. 1-15
plc013

Mounting plate with electrically conductive surface.

Ground the cable screen with a large-area connection to PE (PES: HF screen connection via PE
connection).
Use the enclosed fixing brackets.

Signal cable for analog input and output signals.
Always use a s creened cable.

Signal cable for the system bus (CAN), with bus termination resistor (120 Ω).
Always use a s creened cable.
