Communication module mounting (option)
EDK10200EV3 DE/EN/FR 5.0
L
QQ
Abb. 1-21
plc016
U
V
T
S
z
Z
y
Y
SH PRG
p
PaR2 PaRa
0003
00
0
Par save
GLOBAL DRIVE
d
cb
B
A
l
l
l
59 39
71
72
88
89
LECOM A/B
l
AIF
0
1

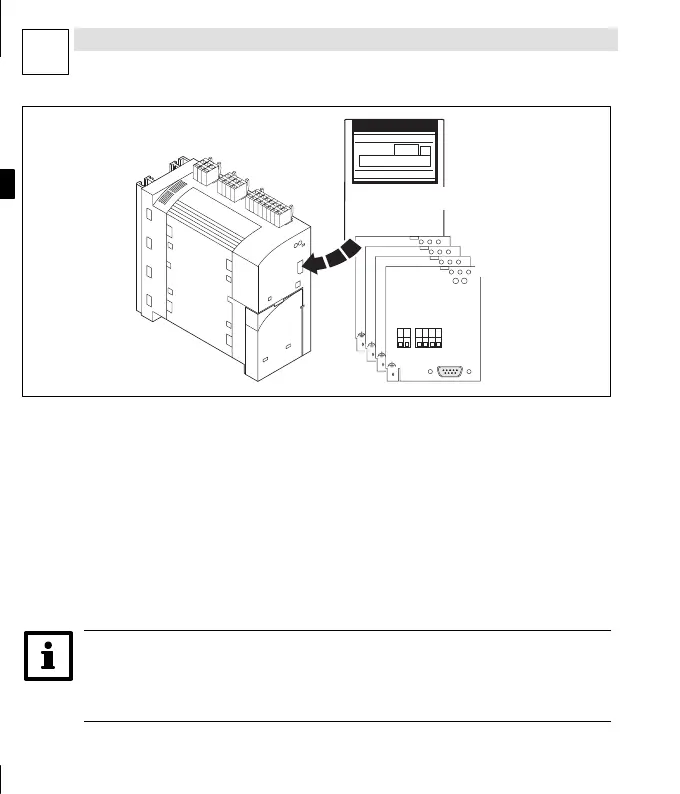

Automation interface (AIF)
The automation interface (AIF) is used for the connection of different plug-on modules
 Keypad XT, type EMZ9371BC
 Fieldbus modules
Ó 2102 LECOM-A/B/LI
Ó 2111 INTERBUS
Ó 2112 INTERBUS loop
Ó 2131 PROFIBUS-DP and 2133 PROFIBUS-DP
Ó 2174 CAN addressing module
Ó 2175 DeviceNet / CANopen
qáé>
The wiring of the fieldbus modules is described in the installation instructions that are
packed with every fieldbus module.
