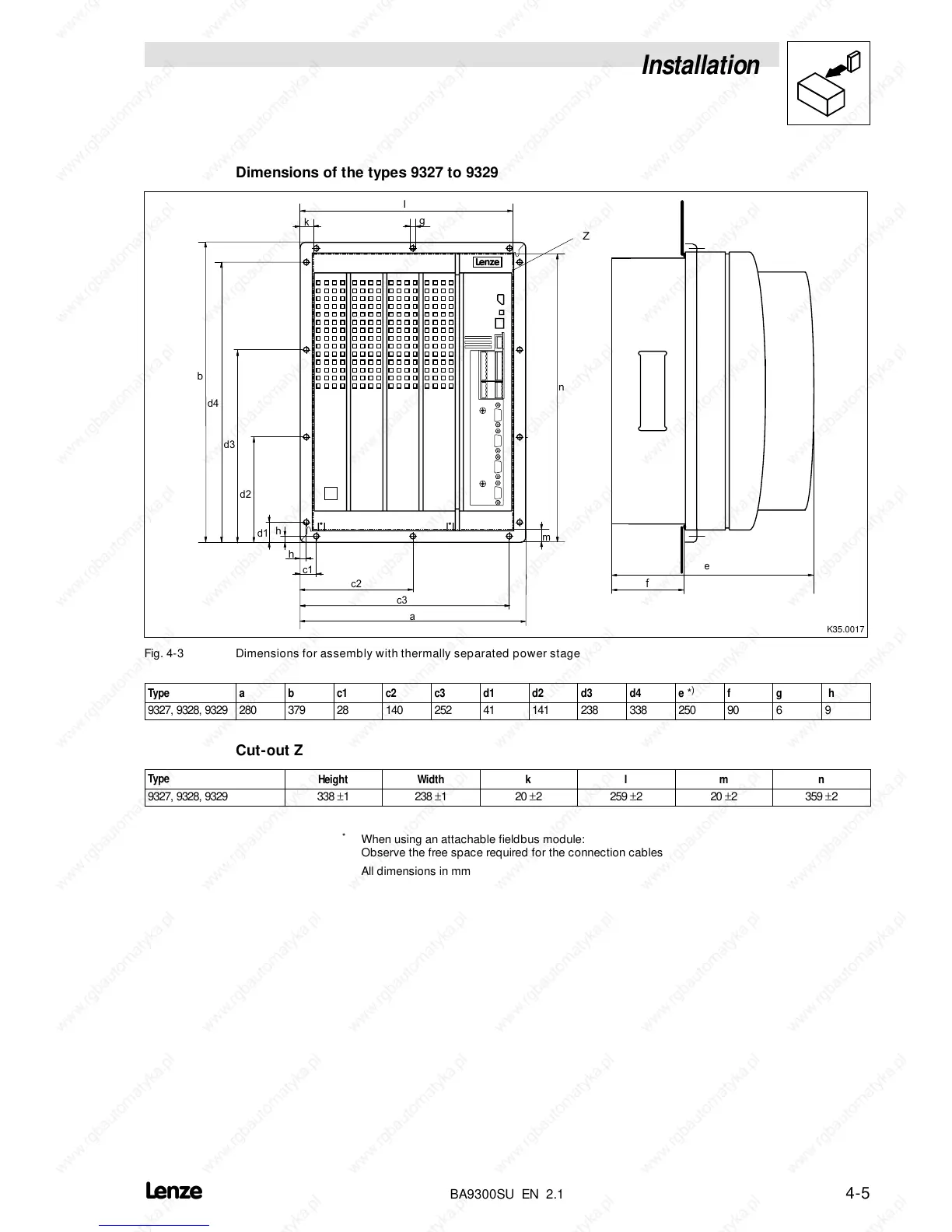

Dimensions of the types 9327 to 9329
L
f
c1
e
h
m
n
l
k
g
a
c2
c3
h
d1
d2
d3
d4
b
Z
K35.0017
Fig. 4-3 Dimensions for assembly with thermally separated power stage
Type a b c1 c2 c3 d1 d2 d3 d4 e *
)
f g h
9327, 9328, 9329 280 379 28 140 252 41 141 238 338 250 90 6 9
Cut-out Z
Type
Height Width k l m n
9327, 9328, 9329 338 ±1 238 ±1 20 ±2 259 ±2 20 ±2 359 ±2
*
When using an attachable fieldbus module:
Observe the free space required for the connection cables
All dimensions in mm
