Dimensions of the types 9327-Cx and 9328-Cx
K35.0056
=
=
C
?
?
A
>
@
>
L
*)
?

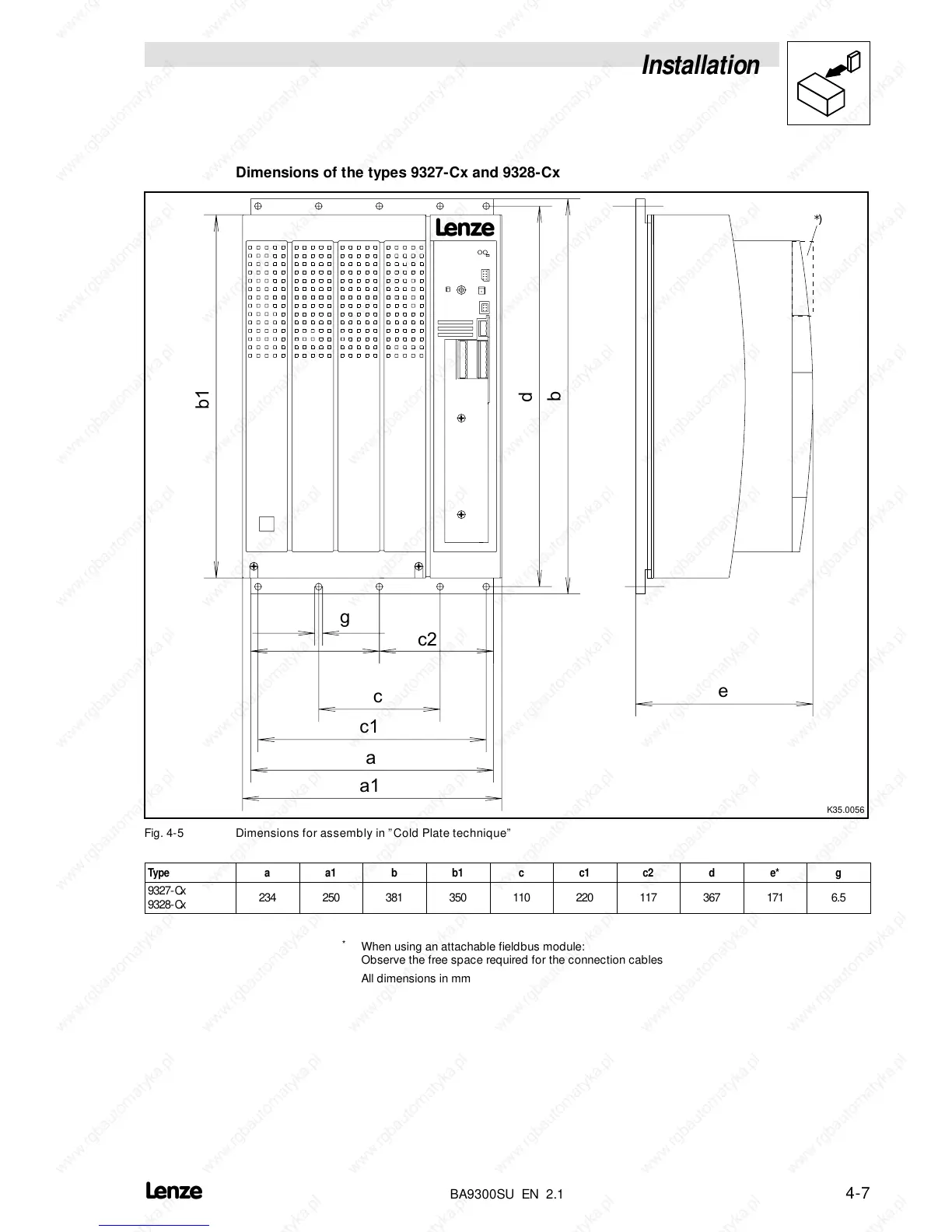

Fig. 4-5 Dimensions for assembly in ”Cold Plate technique”
Type a a1 b b1 c c1 c2 d e* g
9327-Cx
9328-Cx
234 250 381 350 110 220 117 367 171 6.5
*
When using an attachable fieldbus module:
Observe the free space required for the connection cables
All dimensions in mm
