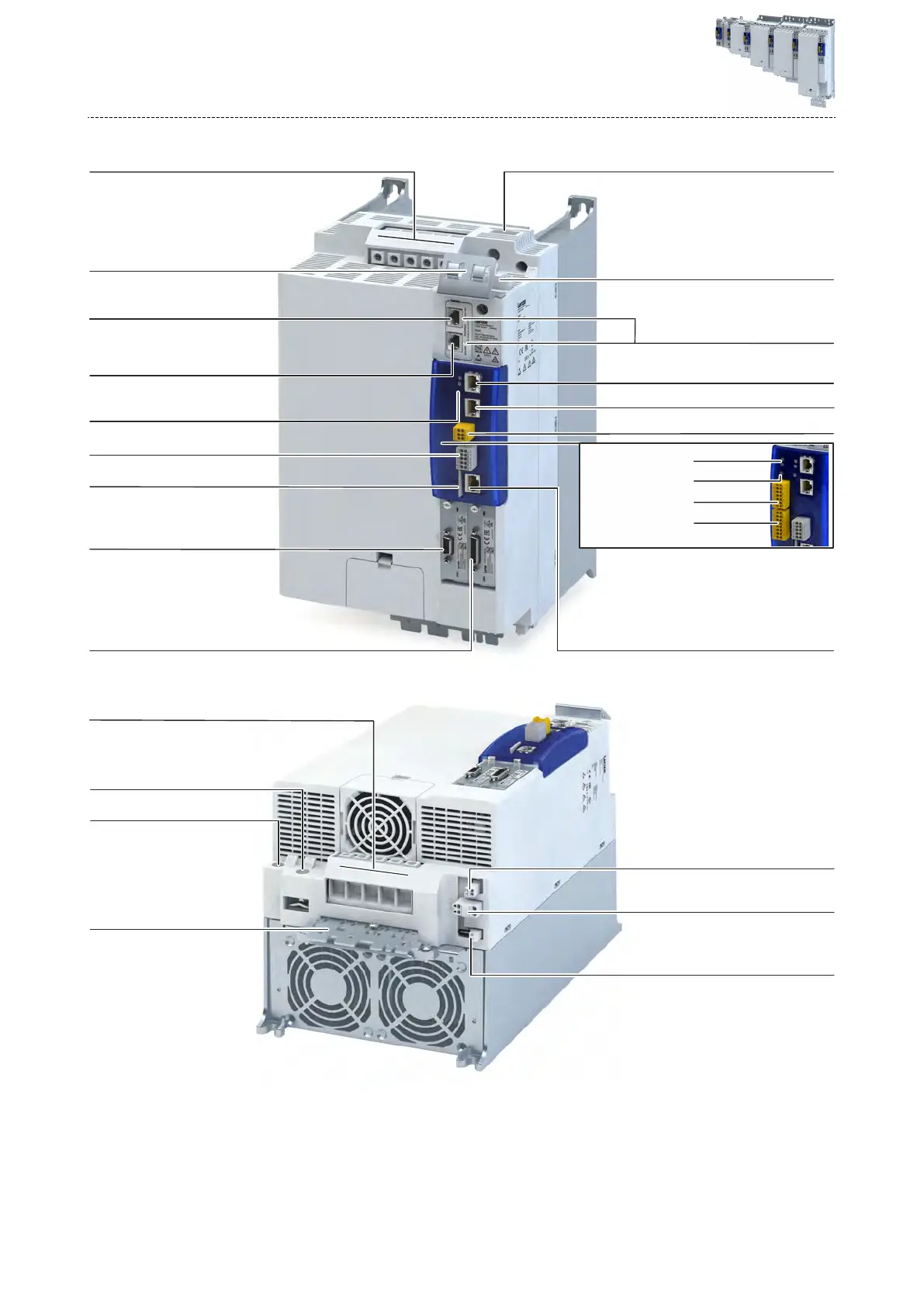

Lenze I95AE222F

Power range 22 kW
X83
X82
S82
onboard EtherCAT OUT
onboard EtherCAT IN
Inverter status LEDs
Network
Option
X2x7
Network
Option
X2x6
Control electronics
24-V-supply
Basic Safety STO
Control terminal
Commissioning,
diagnostics
Engineering port
X16
X3
X1
X237
X236
Network status LEDs
X5
Load encoder or master encoder
Option
Option
Motor encoder
X100
Mains connection/DC bus
PE connection
B
A
Option
SD card
Shielding of
control connections
Extended Safety
Option
Status LEDs
IT screw
Shielding of
motor connection
Brake resistor
Motor connection
X105
PTC input
X109
Motor holding brake
24-V-supply
X107
Motor holding brake
X106
PE connection
