DC-bus operation
DC-bus variants
Supply from controllers
8
316
EDS94SPP101 EN 7.1

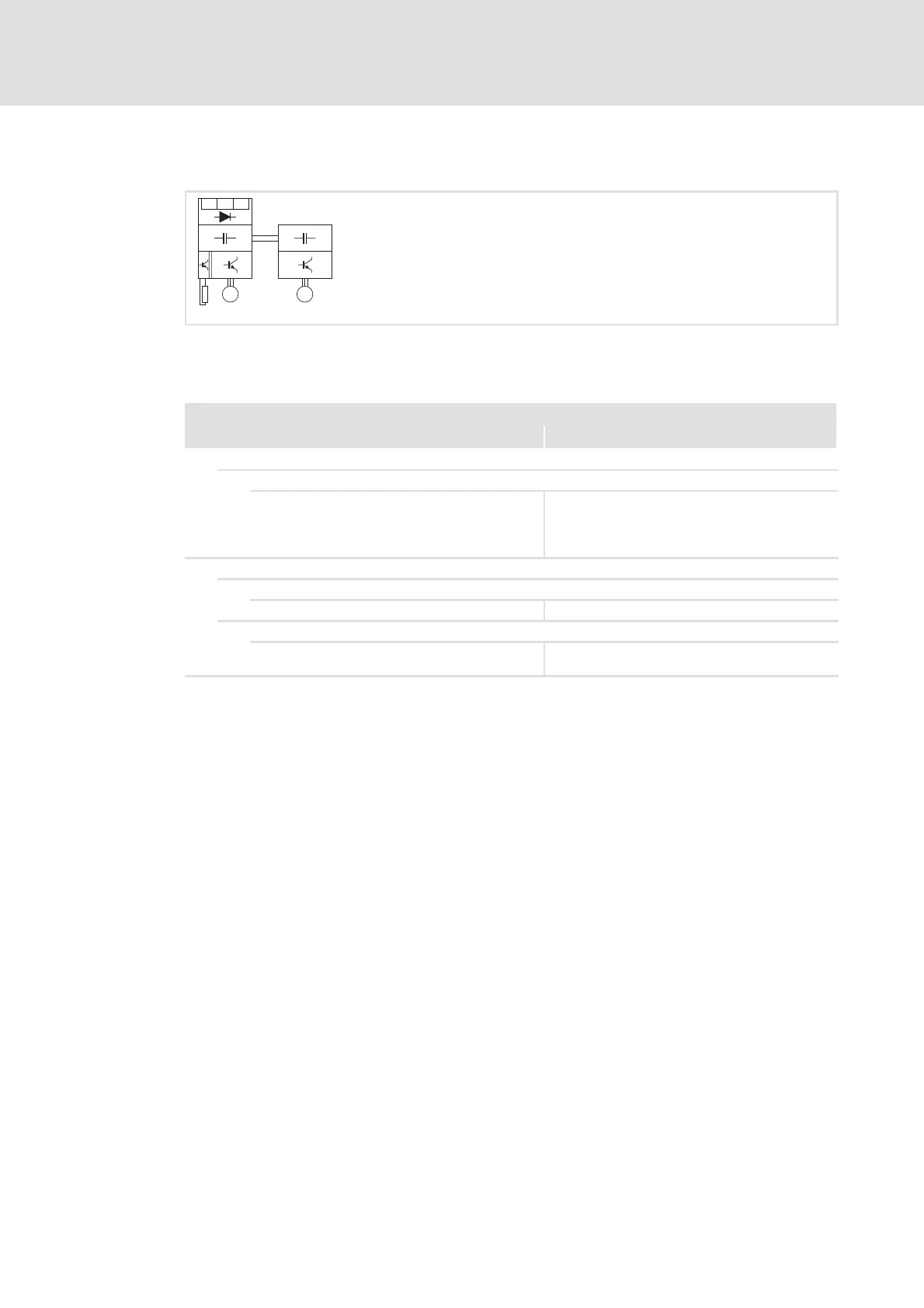

8.3.2 Supply from controllers
L2L1
L3
MM
A single-axis controller with direct AC mains connection supplies energy into the DC bus
of other controllers. The single-axis c ontroller is equipped with an i ntegrated brake
chopper to which you can connect a brake resistor.
Possible combinations
Components to be used Components not to be used
For supply
Single-axis controllers
E94ASxE0024 ... E94ASxE0594
(2 ... 59 A or device sizes 1 ... 6)
E94ASxE0864 ... E94ASxE6954
(86 ... 695 A or device sizes 7 ... 10)
Æ Possible to a certain degree when considering
Application Reports.
As DC-bus component
Multi-axis controllers
E94AMxExxx4 (2 ... 24 A) -
Single-axis controllers
E94ASxE0024 ... E94ASxE0594
(2 ... 59 A or device sizes 1 ... 6)
E94ASxE0864 ... E94ASxE6954
(86 ... 695 A or device sizes 7 ... 10)
