Mechanical installation
Backstop
4
l
20
BA 12.0023−EN 6.0
Direction of rotation
) Note!
Before switching on the motor, it is absolutely necessary to make sure that the
motor starts in the intended direction of rotation.
The Lenze motors are designed such that the motor rotates CCW when viewed
on the fan cover when a CW three−phase field L1 W U1, L2 WV1, L3 W W1 is
applied.
( Stop!
The drive motor must under no circumstances be started in stop direction.
Otherwise, the backstop may be destroyed!

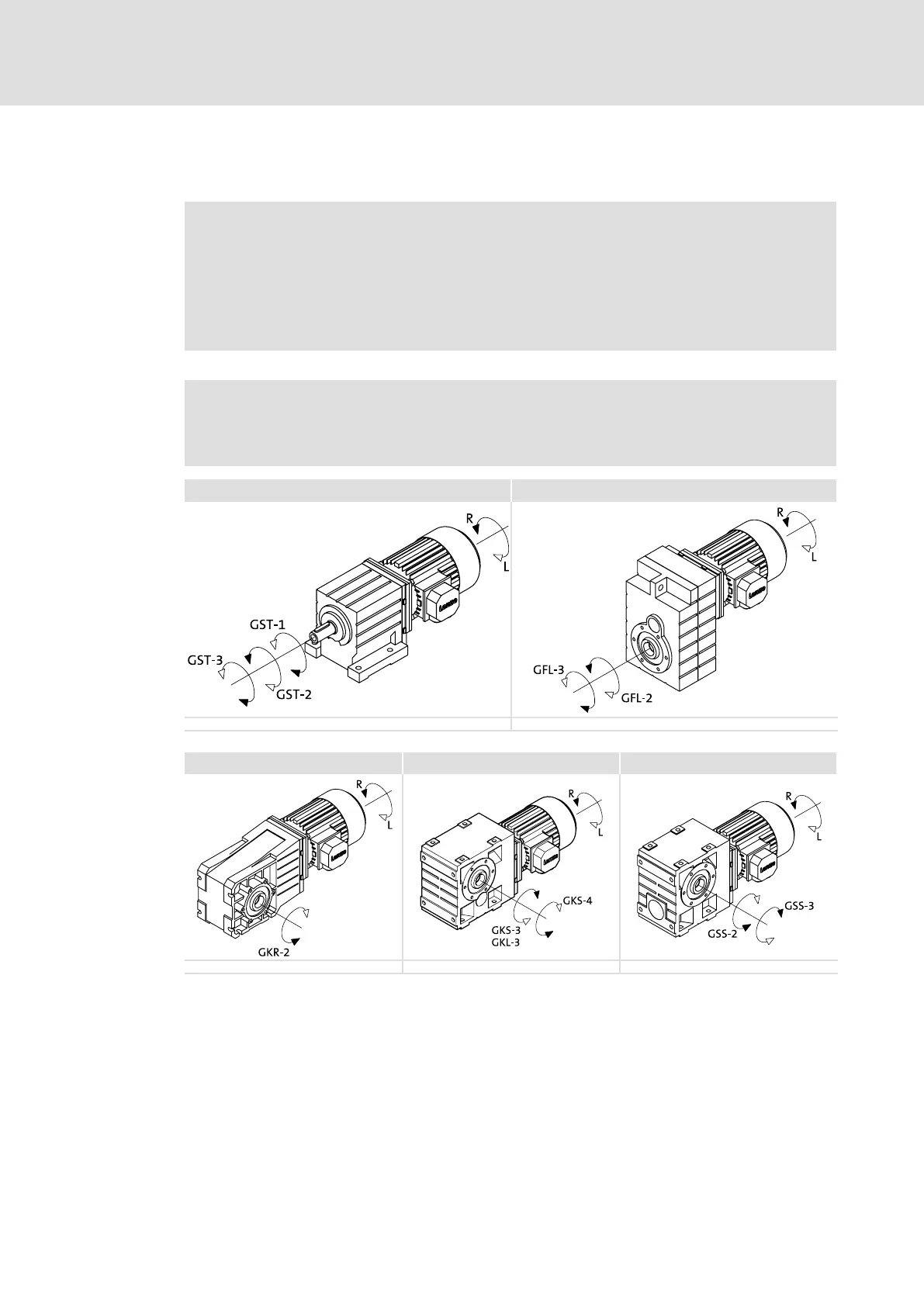

GST GFL
GT−GNG−GST−008.iso/dms GT−GNG−GFL−005.iso/dms
GKR GKS/GKL GSS
GT−GNG−GKR−006.iso/dms GT−GNG−GKS/GKL−004−iso/dms GT−GNG−GSS−007.iso/dms
Fig. 2 Direction of rotation of drive
