Lenze L−force GST - Gearbox with Compensation Container for Mounting Position C

Mechanical installation
Mounting
Gearbox with compensation container for mounting position C
4
l
48
BA 12.0023−EN 6.0
4.4.12 Gearbox with compensation container for mounting position C
GST GFL
GKS
K12.0956

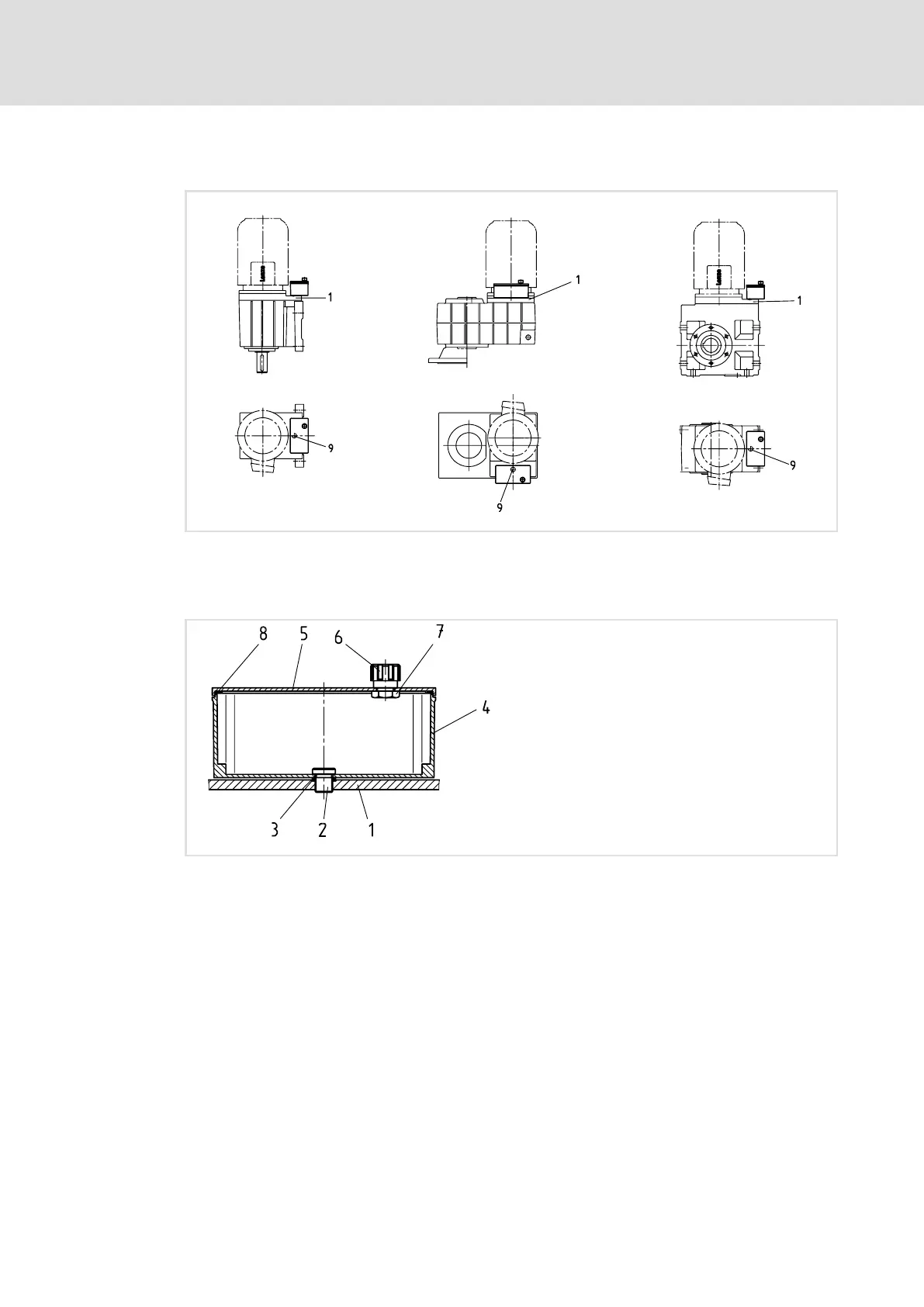

Fig. 12 Position of the compensation container in mounting position C
1 Intermediate cover 9 Plug screw
4.4.12.1 Component parts list
K12.0956
Fig. 13 Component−parts list − compensation container
1 Intermediate cover 5 Cover
2 Fixing screw 6 Breather element
3 Sealing rings 7 Hexagon nut
4 Housing 8 Seal
