4.4.6 Attachment of gearboxes with hollow shafts and keyway
Mounting
1. Draw the gearbox with hollow shaft onto the machine shaft to be driven:
– Apply the supplied assembly paste (Fig. 5) on the shaft and in the hollow shaft
bore.
GT−GNG−GKR−011.iso GT−GNG−GKR−011_a.iso

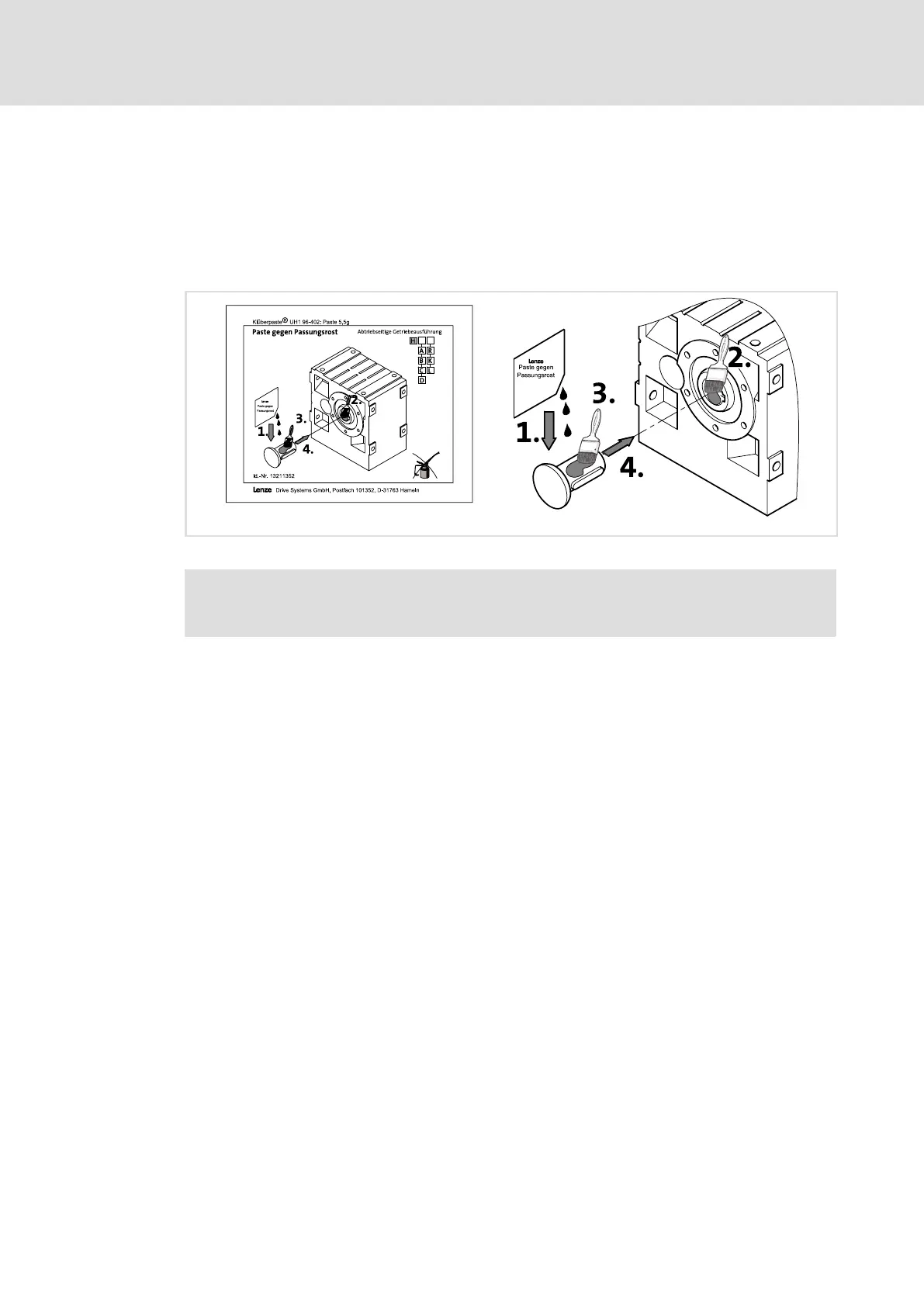

Fig. 5 Application of assembly paste against fretting corrosion (included in the scope of supply)
( Stop!
Take up forces only via the hollow shaft, and not via gearbox housing.
