4.4.9 Mounting the hoseproof hollow shaft cover
for size 09, 11 and 14
1
3
2
4
3x120°

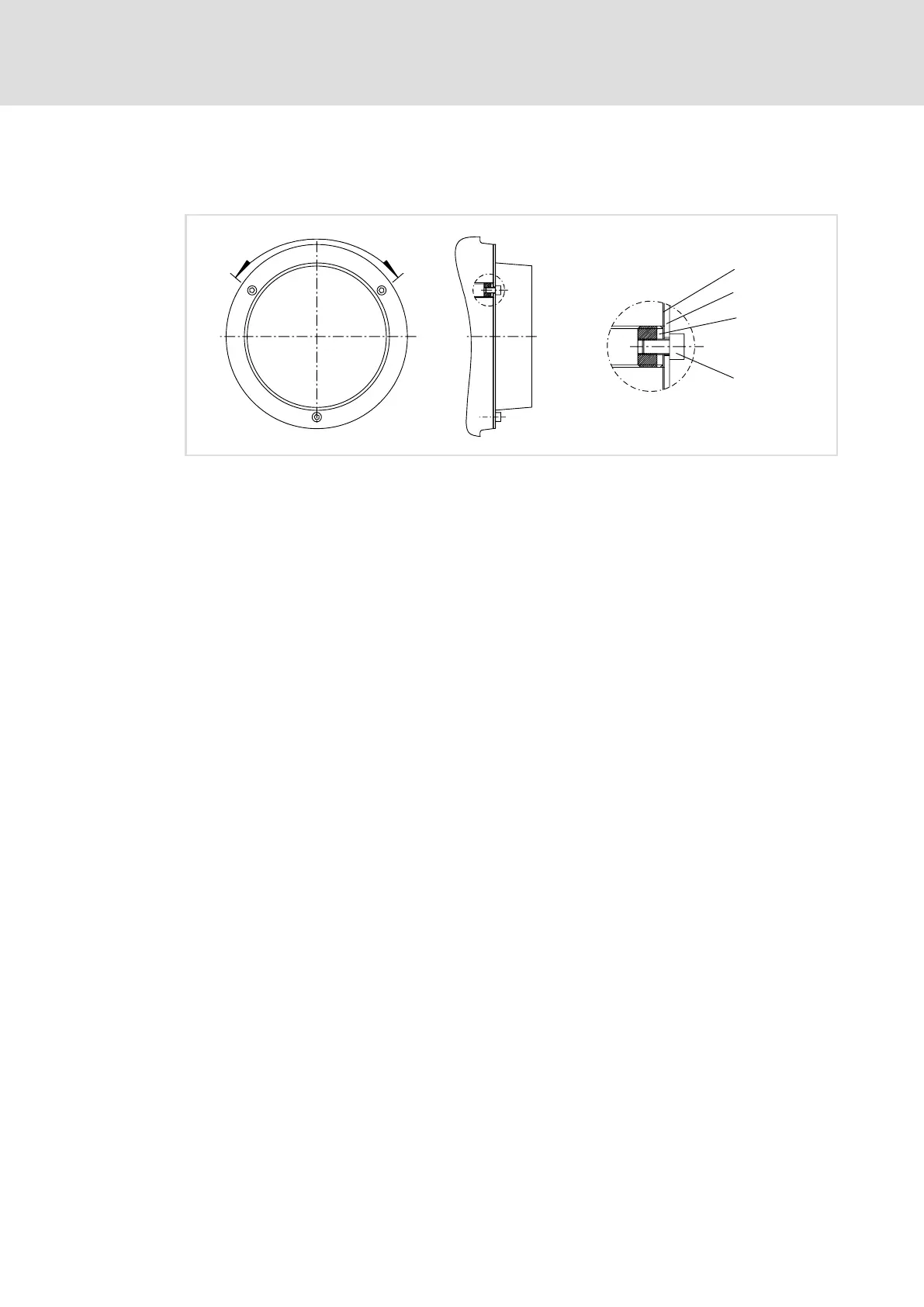

Fig. 11
1 Protection cover
2 Cheese head screw
3 Thread reducing sleeve
4 Seal
1. Screw the three reducing bushes (3) into the flange with a screwdriver so they are
flush and staggered by 120°.
2. Fit seal (4) between flange and protective cap (1).
3. Fasten the protective cap (1) over the reducing bushes (3) on the flange using three
cheese head screws (2).
