Mechanical installation
Mounting

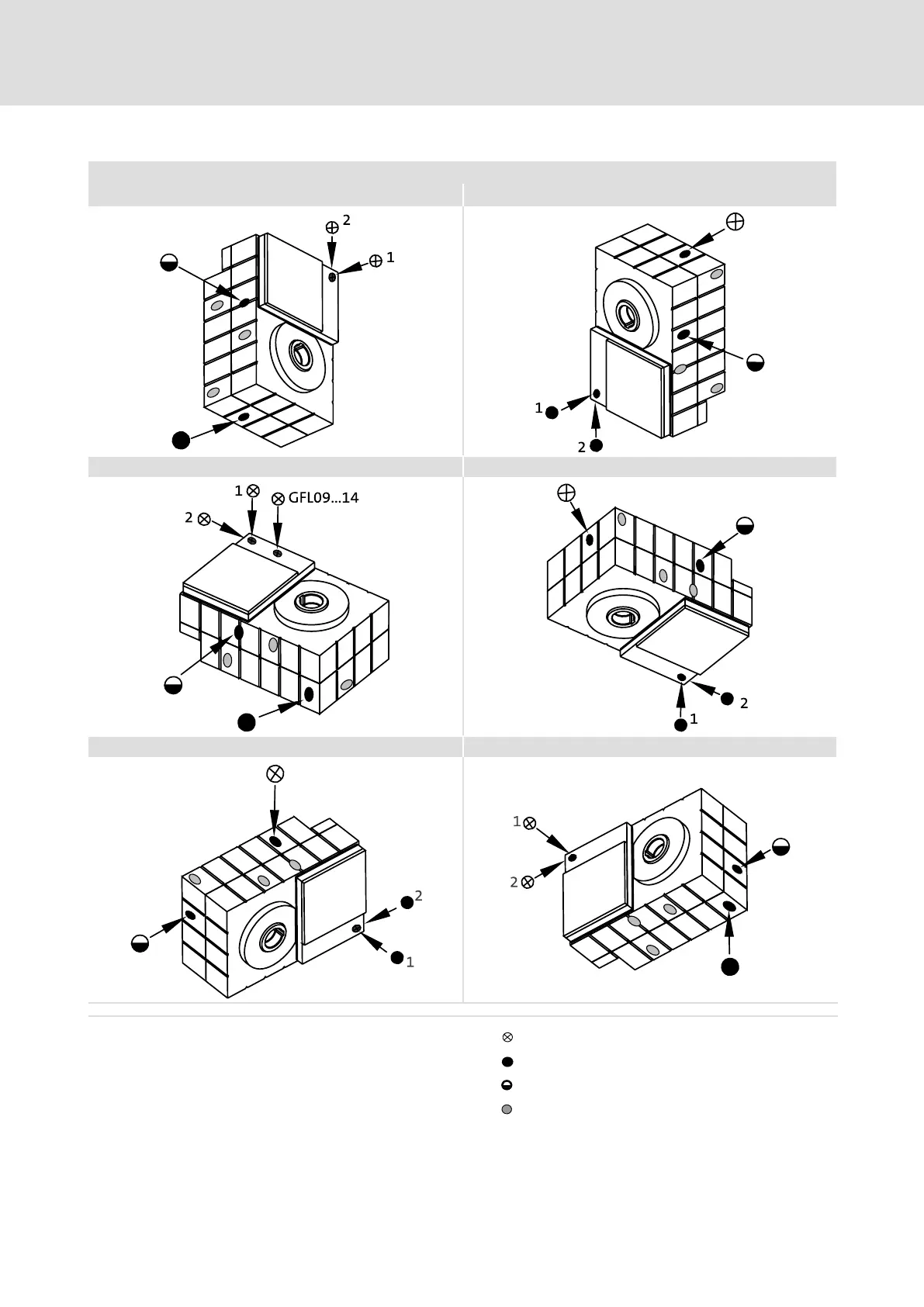

Breather position, oil filling screw and drain plug
4
l
40
BA 12.0023−EN 6.0
Shaft−mounted helical gearbox GFL 05 ... 14−2
A B
C D
E F
GT−GNG−GFL−2−001.iso/dms
A...F Mounting positions Breathing / oil filler plug
*
on both sides Oil drain plug
**
opposite Oil−control plug
Pos. 1 or 2 depending on version
Sealing plug without function
