Lenze L−force GST - Page 7

l
7
BA 12.0023−EN 6.0

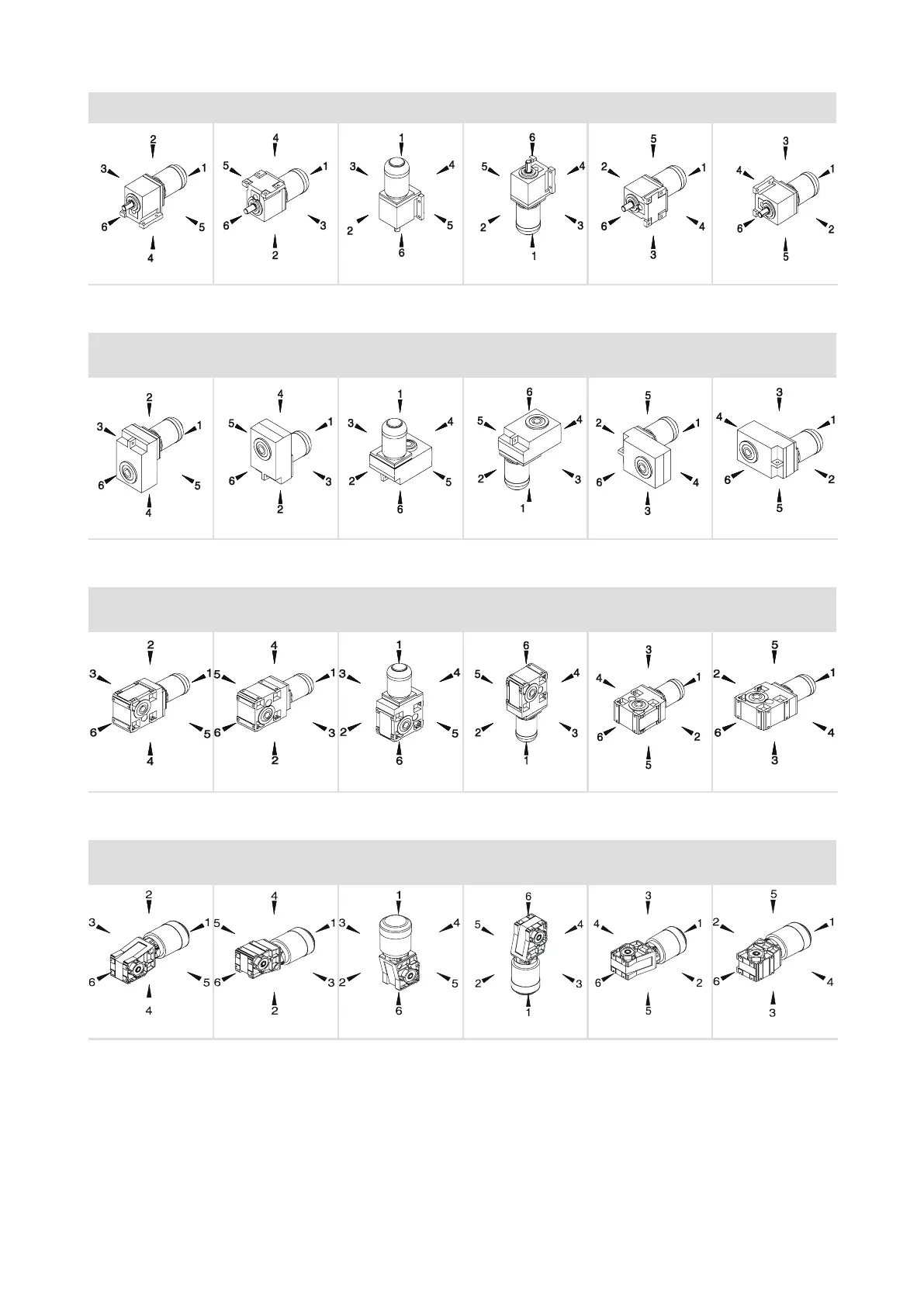

Mounting position (A−F) and position of system modules (1−6)
GST
Terminal box, Motec, connector: 2, 3, 4, 5
Without terminal box, Motec, connector: 0
A B C D E F
GFL
Solid shaft: 6
Hollow shaft: 0
Hollow shaft with shrink disc: 1, 6
Foot: 3, 4
Without foot: 0
Terminal box, Motec, connector: 2, 3, 4, 5
Without terminal box, Motec, connector: 0
A B C D E F
GKS/GSS/GKL
Solid shaft: 3, 5, 8 (3+5)
Hollow shaft: 0
Hollow shaft with shrink disc: 3, 5
Flange: 3, 5, 8 (3+5)
Without flange: 0
Terminal box, Motec, connector: 2, 3, 4, 5
Without terminal box, Motec, connector: 0
A B C D E F
GKR
Solid shaft: 3, 5, 8 (3+5)
Hollow shaft: 0
Hollow shaft with shrink disc: 3, 5
Flange: 3, 5, 8 (3+5)
Without flange: 0
Terminal box, Motec, connector: 2, 3, 4, 5
Without terminal box, Motec, connector: 0
A B C D E F
