Electrical installation
Important notes
6
28
Lenze ¯ BA 33.0008 ¯ 5.0

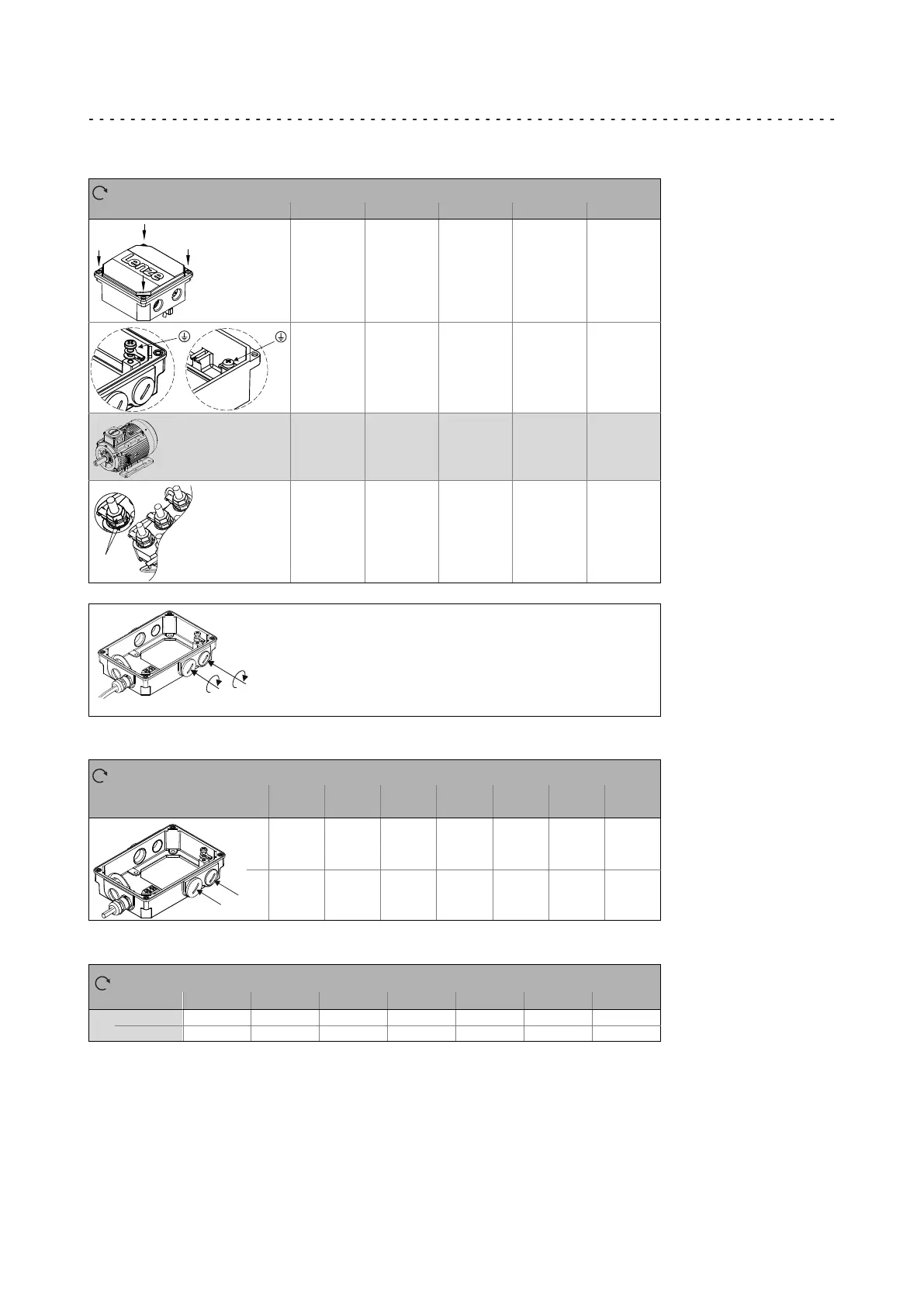

Tightening torques
[Nm] +/− 10% j
M4 M5 M6 M8 M10
2.2 3.5 4.5 −−−−− −−−−−
2.5 3.5 −−−−− −−−−− −−−−−
063...080 090...112 132...160 180...200 225
CuZn
1.5 2.0 3.5 6.0 8.0
m500−P / m550−P
[Nm] +/− 10% j
M12 M16 M20 M25 M32 M40 M50
x 1.5 x 1.5 x 1.5 x 1.5 x 1.5 x 1.5 x 1.5
1) 0.7 1 1 2.5 3 3 3
2) 3 3 4 6 8 10 14
m540−P
[Nm]
Material M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5
Plastics 4 4 4 4 6 6 6
Metal 8 10 12 12 18 18 20
Tab. 1 Locking screws and cable glands
