Electrical installation
Plug connectors
Power connections
6
34
Lenze ¯ BA 33.0008 ¯ 5.0

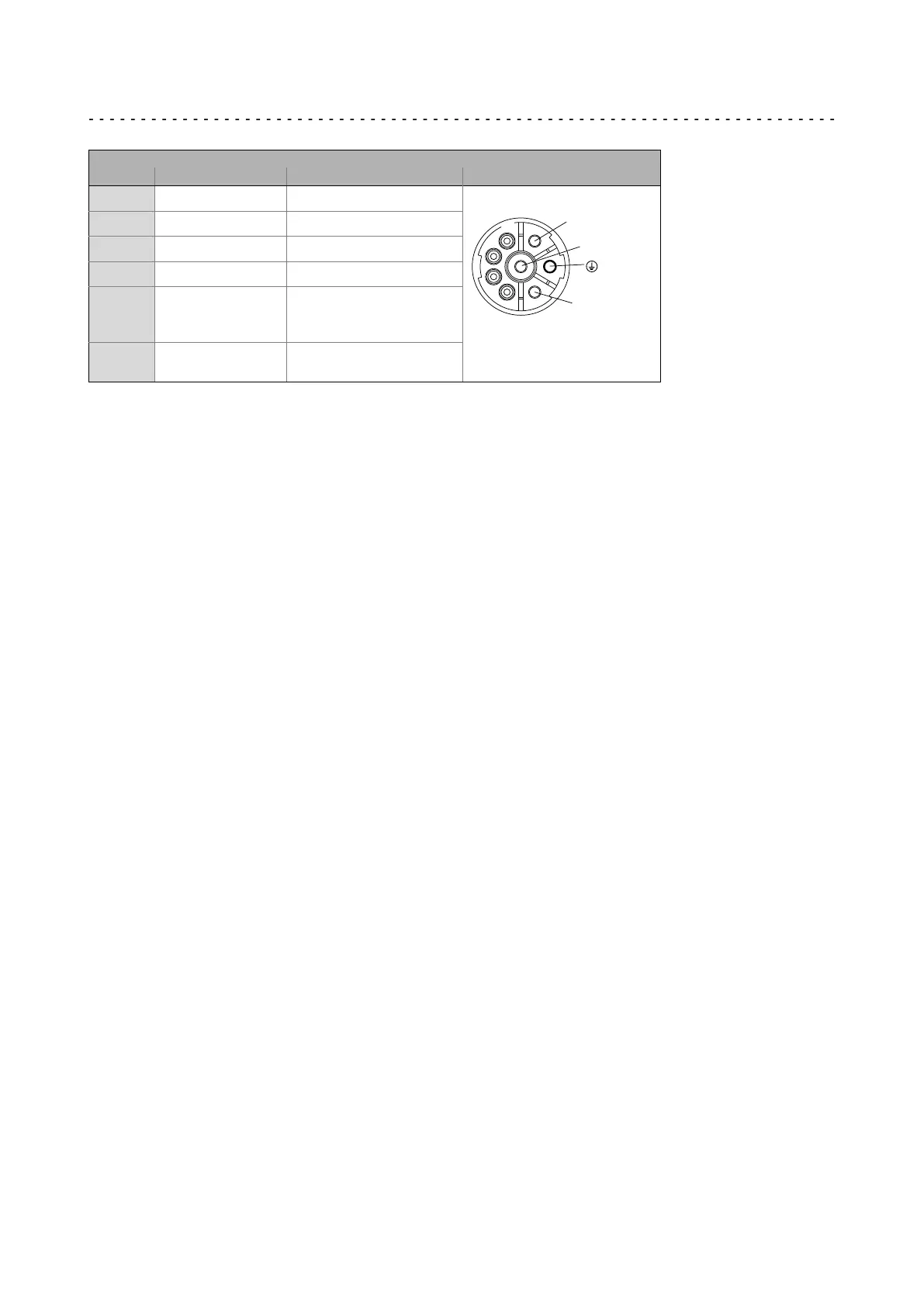

8−pole (external view of poles) / connection variant ICN 8B
Contact Name Name M23
1 V Power phase U
MT plug−in
connector−001.iso/dms
4
1
3
A
B
C
D
+ PE PE conductor
3 W Power phase W
4 V Power phase V
A
B
TB1 / TP1 / R1
TB2 / TP2 / R2
Thermal sensor
TCO / PTC / + KTY
TCO / PTC / − KTY
C
D
BD1 / BA 1
BD2 / BA2
Switching contact
of rectifier
Connection variant ICN 8B − switching contact of the rectifier for DC switching. Rectifier
supply via motor terminal board. Only possible during mains operation!
