Electrical installation

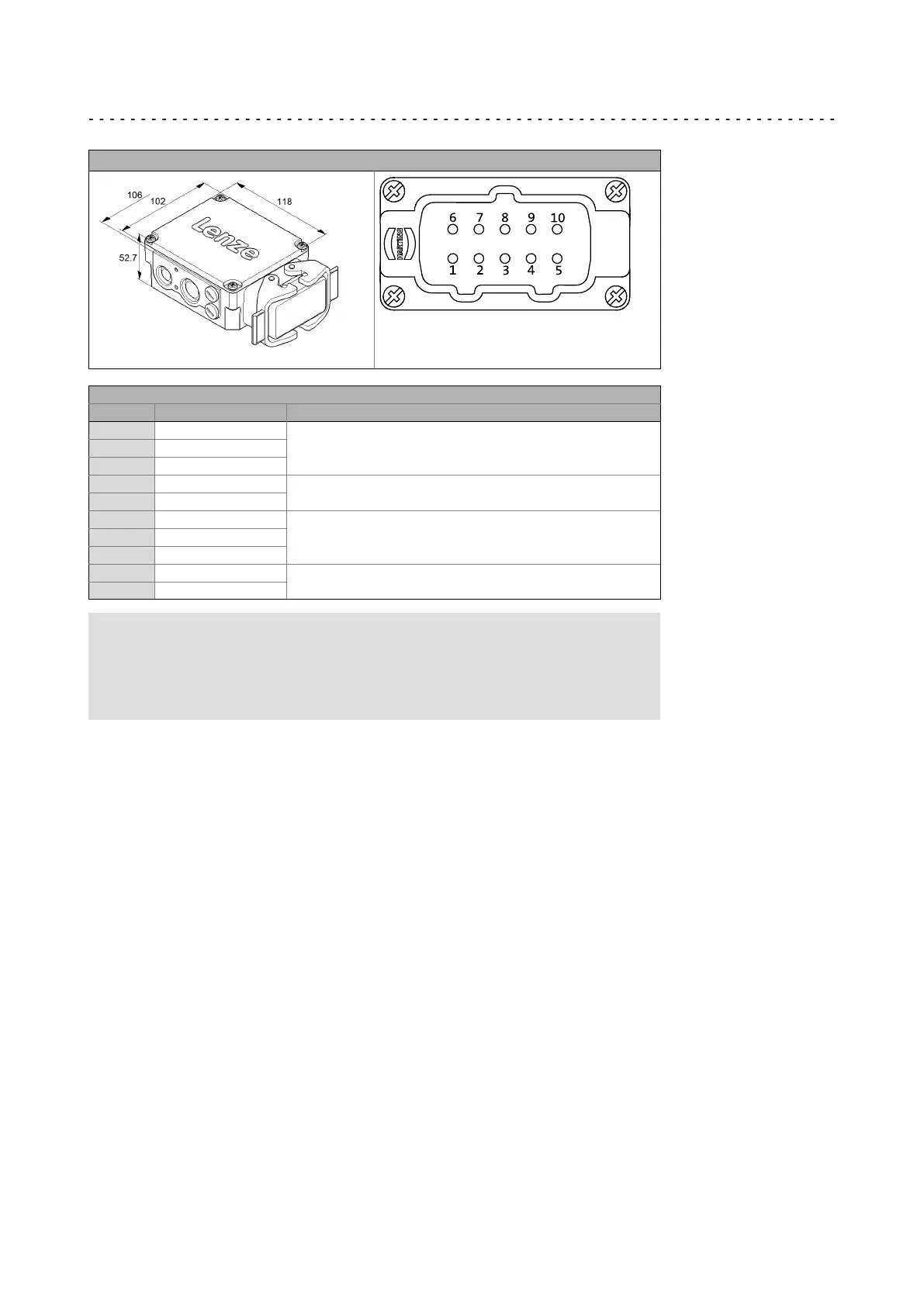

Terminal box HAN connectors
6
39
Lenze ¯ BA 33.0008 ¯ 5.0
Contact pin HAN 10E
HAN−GTM−007.iso HAN−GTM−004.iso
Terminal box
Contact Name Meaning
1 U1 Terminal board
2 V1
3 W1
4 + / AC Holding brake
5 − / AC
6 W2 Terminal board
7 U2
8 V2
9 +KTY / PTC / TCO Thermal sensor
10 −KTY / PTC / TCO
) Note!
Carry out the wiring in *or -in the counter plug:
¯ * − wiring: 6−7−8
¯ - − wiring: 1−6/2−7/3−8
