Lenze SMVector User Manual

13
SV01N_13418587 EN/DE/ES/FR/IT/PT
Installation

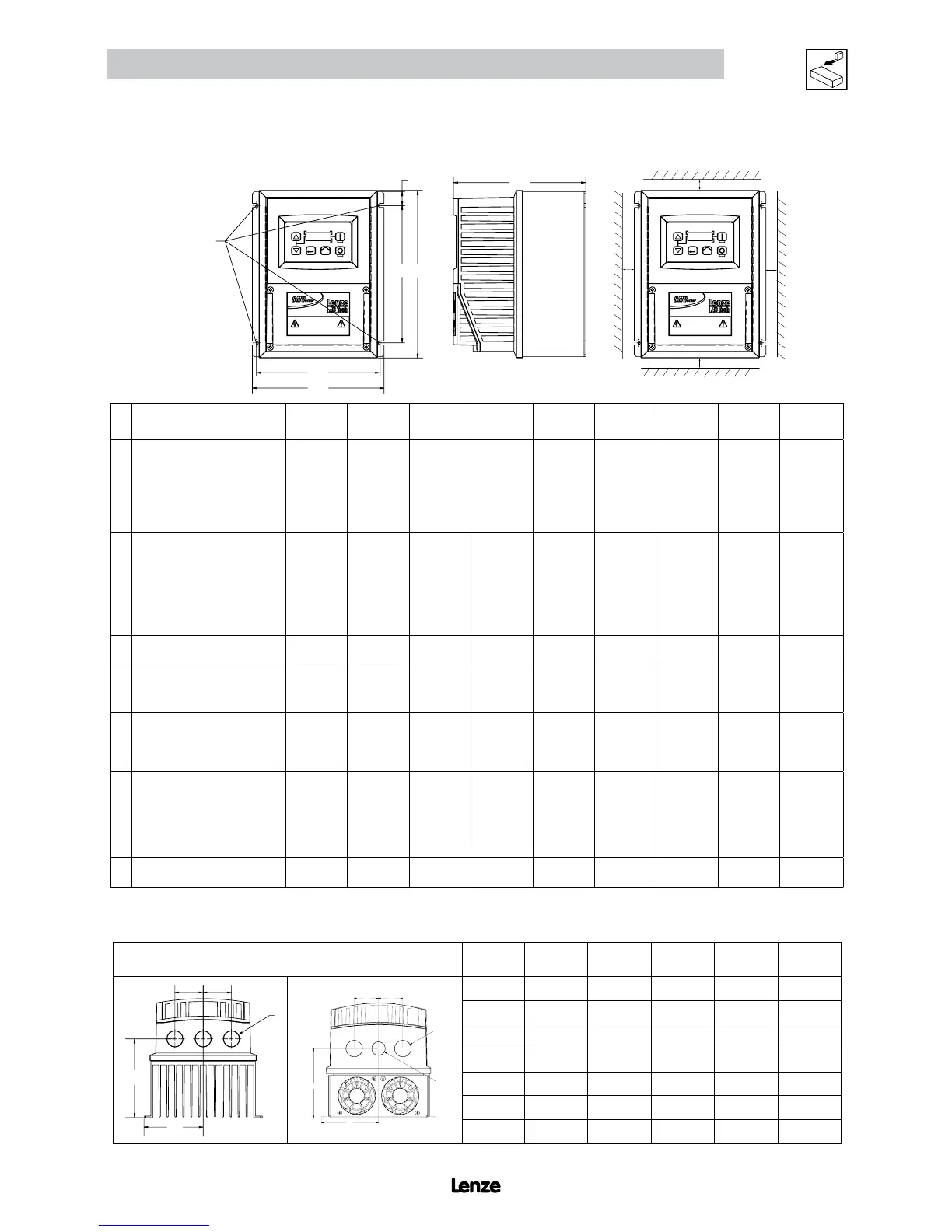

3.1.3 NEMA 4X (IP65) Models
b2
b1
b
a1
a
c
s1
s2
s2
s1
Mounting Screws
4 x #8-32
10 lb-in
4 x M4
1.2 Nm
()
Type
a
in (mm)
a1
in (mm)
b
in (mm)
b1
in (mm)
b2
in (mm)
c
in (mm)
s1
in (mm)
s2
in (mm)
m
lb (kg)
R1
ESV371N01SX_; ESV751N01SX_;
ESV371N02YX_; ESV751N02YX_;
ESV371N04TX_; ESV751N04TX_;
ESV751N06TX_; ESV371N02SF_;
ESV751N02SF_; ESV371N04TF_;
ESV751N04TF_;
6.28 (160) 5.90 (150) 8.00 (203) 6.56 (167) 0.66 (17) 4.47 (114) 2.00 (51) 2.00 (51) 3.6 (1.63)
R2
ESV112N01SX_; ESV112N02YX_;
ESV152N02YX_; ESV112N04TX_;
ESV152N04TX_; ESV222N04TX_;
ESV152N06TX_; ESV222N06TX_;
ESV112N02SF_; ESV152N02SF_;
ESV112N04TF_; ESV152N04TF_;
ESV222N04TF_; ESV302N04TF_;
6.28 (160) 5.90 (150) 8.00 (203) 6.56 (167) 0.66 (17) 6.31 (160) 2.00 (51) 2.00 (51) 5.9 (2.68)
S1 ESV222N02YX_; ESV222N02SF_ 7.12 (181) 6.74 (171) 8.00 (203) 6.56 (167) 0.66 (17) 6.77 (172) 2.00 (51) 2.00 (51) 7.1 (3.24)
T1
ESV552N02TX~; ESV752N02TX~
ESV752N04TX~; ESV752N06TX~;
ESV752N04TF~
8.04 (204) 7.56 (192) 10.00 (254) 8.04 (204) 0.92 (23) 8.00 (203) 4.00 (102) 4.00 (102) 10.98 (4.98)
V1
ESV402N02TX_; ESV402N04TX_;
ESV552N04TX_; ESV402N06TX_
ESV552N06TX_; ESV402N04TF_;
ESV552N04TF_
8.96 (228) 8.48 (215) 10.00 (254) 8.04 (204) 0.92 (23) 8.00 (203) 4.00 (102) 4.00 (102) 11.58 (5.25)
W1
ESV113N02TX~; ESV153N02TX~
ESV113N04TX~; ESV153N04TX~
ESV113N04TF~; ESV153N04TF~
ESV113N06TX~; ESV153N06TX~
ESV183N04TX~; ESV183N04TF~
ESV183N06TX~
9.42 (240) 8.94 (228) 14.50 (368) 12.54 (319) 0.92 (24) 9.45 (241) 4.00 (102) 4.00 (102) 22.0 (10.0)
X1
ESV223N04TX~; ESV223N04TF~
ESV223N06TX~
9.42 (240) 8.94 (228) 18.5 (470) 16.54 (420) 0.92 (24) 9.45 (241) 4.00 (102) 4.00 (102) 25.5 (11.6)
_ = Last digit of part number: C = N4X Indoor (convection cooled) ~ = Last digit of part number: D = N4X Indoor (fan cooled)
E = N4X In/Outdoor (convection cooled) F = N4X In/Outdoor (fan cooled)
Conduit Hole Dimensions Type
N
in (mm)
P
in (mm)
Q
in (mm)
S
in (mm)
S1
in (mm)
P
N
Q
Q
S
S
S1
P
Q
Q
N
R1 3.14 (80) 2.33 (59) 1.50 (38) .88 (22) n/a
R2 3.14 (80) 4.18 (106) 1.50 (38) .88 (22) n/a
S1 3.56 (90) 4.63 (118) 1.50 (38) .88 (22) n/a
T1 4.02 (102) 5.00 (127) 1.85 (47) 1.06 (27) n/a
V1 4.48 (114) 5.00 (127) 1.85 (47) 1.06 (27) n/a
W1 4.71 (120) 5.70 (145) 2.00 (51) 1.375 (35) 1.125 (28)
X1 4.71 (120) 5.70 (145) 2.00 (51) 1.375 (35) 1.125 (28)
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.actechdrives.com - Email: info@actechdrives.com

Lenze SMVector Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Communication Options	CANopen, Profibus DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Control Method	Sensorless Vector
Ambient Temperature	-10°C to +40°C
