KRTM 3B… - 08 2016/11

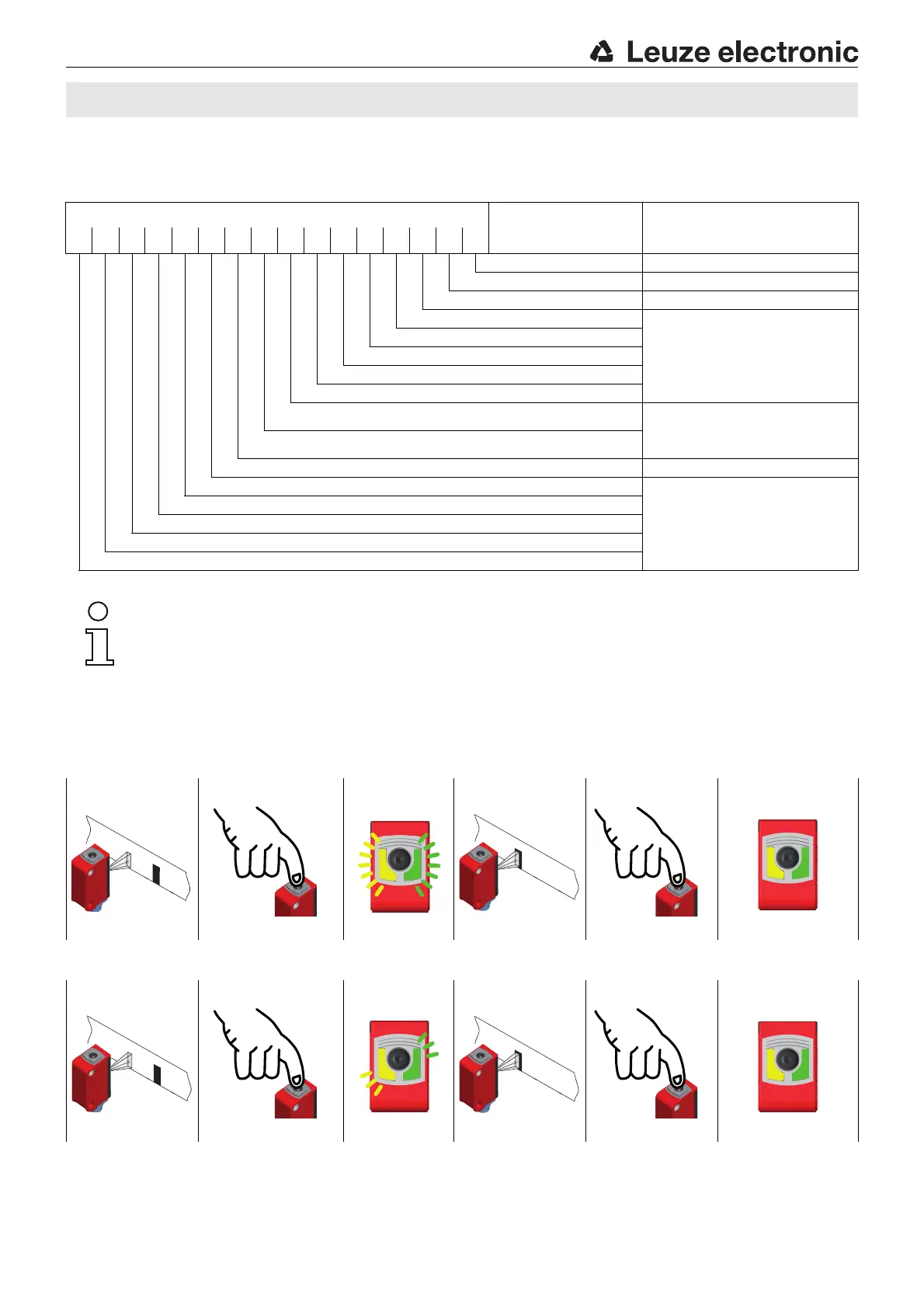

IO-Link process data
The sensor transmits 2 bytes to the master.
Further information and details on the IO-Link interface can be found in the separate IO-Link data sheet.
Static 2-point teach
Suitable for manual positioning of the marks (availability dependent on sensor type).
Switching threshold in center:
Switching threshold near the mark:
Data bit
Assignment Default settings
1514131211109876543210
Switching output 0 = no mark, 1 = mark detected
Not assigned Free
Sensor operation 0 = off, 1 = on
Switching threshold LSB
Value range 0 … 31
(0 … 100% in approx. 3% steps)
0% = min. switching threshold
100% = max. switching threshold
Switching threshold
Switching threshold
Switching threshold
Switching threshold MSB
Active transmitter LSB
00 = red,
01 = green or white,
Active transmitter MSB
10 = blue,
11 = all colors on (teach-in active)
Not assigned Free
Measurement value LSB
Value range 0 … 31
(0 … 100% in approx. 3% steps)
0% = min. signal level
100% = max. signal level
Measurement value
Measurement value
Measurement value
Measurement value MSB
Position the background. Press teach button for
2 … 7s and release.
LEDs flash
simultaneously.
Position the mark. Briefly press teach button. Sensor in RUN mode.
Yellow LED illuminates.
Value for background is
accepted.
Simultaneous
flashing
Value for mark is
accepted.
Switching threshold set in
the center.
Position the background. Press teach button for
7 … 12s and release.
LEDs flash
alternatingly.
Position the mark. Briefly press teach button. Sensor in RUN mode.
Yellow LED illuminates.
Value for background is
accepted.
Alternating
flashing
Value for mark is
accepted.
Switching threshold is set
near the mark.
2…7s
7…12s
KRTM 3B
