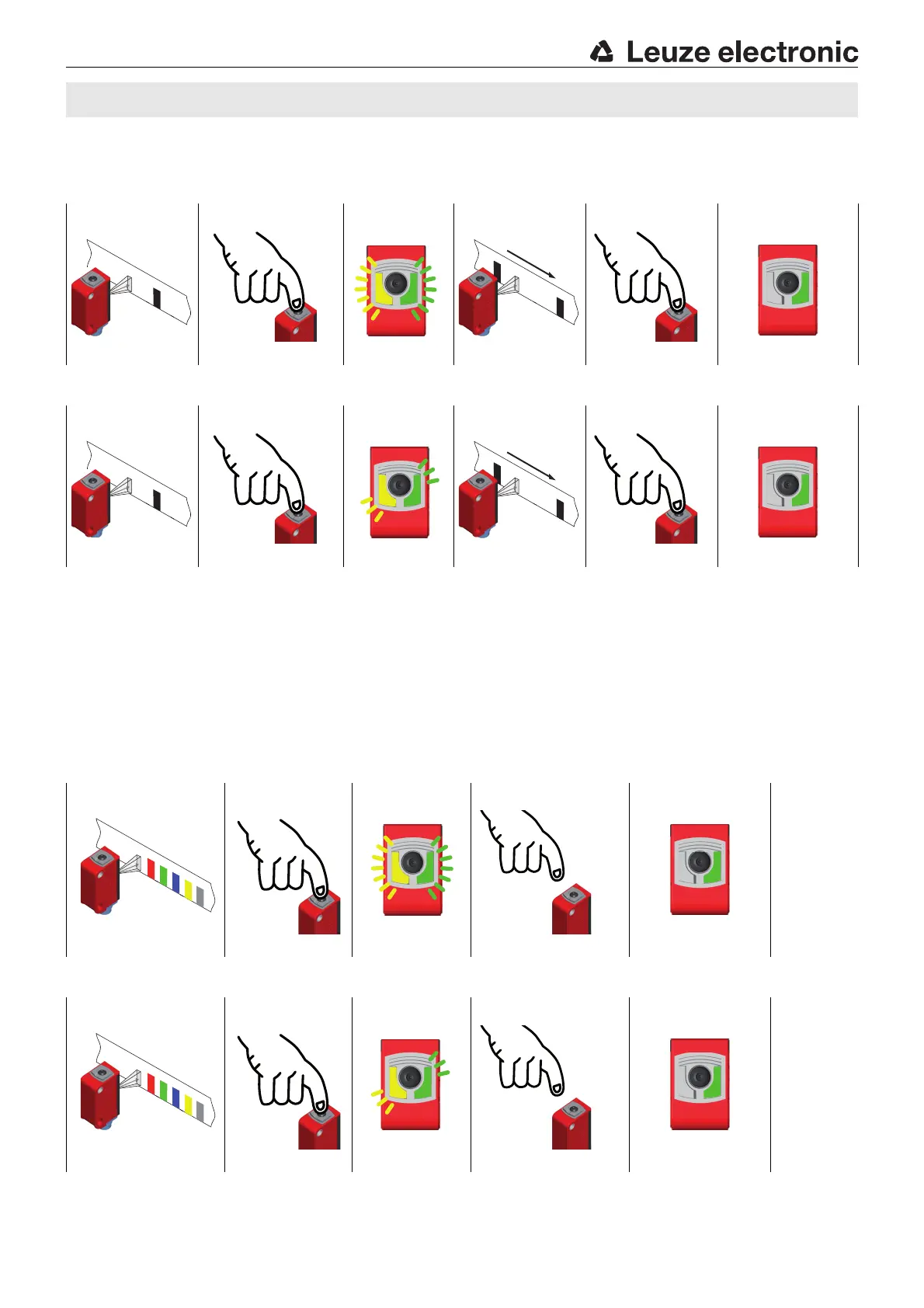

Dynamic 2-point teach
Suitable for marks moved during automated machine processes (availability dependent on sensor type).
Switching threshold in center
Switching threshold near the mark
Static 1-point teach
Suitable for detecting all marks outside of the reference value (dependent on available sensor type).
Standard sensitivity
High sensitivity
Position the background. Press teach button for
2 … 7s and release.
LEDs flash
simultaneously.
Allow marks to pass
through dynamically.
Briefly press teach button. Sensor in RUN mode.
Yellow LED is off.
Measurement window
opens.
Simultaneous
flashing
Measurement window
closes.
Switching threshold set in
the center.
Position the background. Press teach button for
7 … 12s and release.
LEDs flash
alternatingly.
Allow marks to pass
through dynamically.
Briefly press teach button. Sensor in RUN mode.
Yellow LED is off.
Measurement window
opens.
Alternating
flashing
Measurement window
closes.
Switching threshold is set
near the mark.
Position reference value. Press the teach button
for 2 ...7s.
LEDs flash
simultaneously.
Release teach button. Sensor in RUN mode.
Yellow LED is off.
Simultaneous
flashing
Value is accepted. Standard sensitivity is set.
Position reference value. Press the teach button
for 7 ...12 s.
LEDs flash
alternatingly.
Release teach button. Sensor in RUN mode.
Yellow LED is off.
Alternating
flashing
Value is accepted. High sensitivity is set.
2…7s
7…12s
2…7s
7…12s
KRTM 3B Multicolor contrast scanner
