Section 2.02 2.2 Deployment Topology
Common Network Layout with EAP-200s

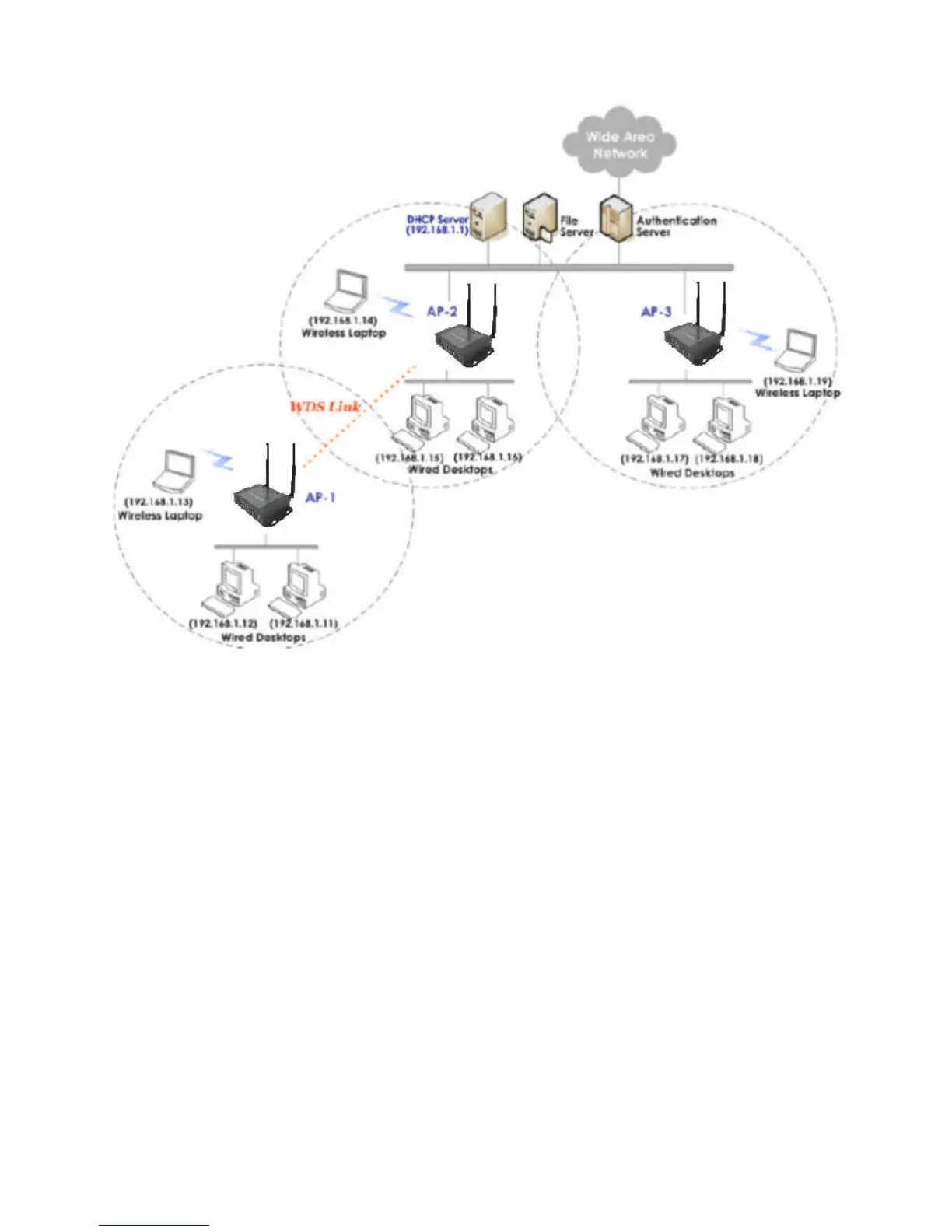

This above deployment scenario illustrates a deployment example using three access points, AP-1, AP-2,
and AP-3.
• Three EAP-200 systems construct a network comprising of wired and wireless segments
• AP-2 plays the role of a wireless bridge.
• All devices share the same DHCP server 192.168.1.1.
