Step 16:

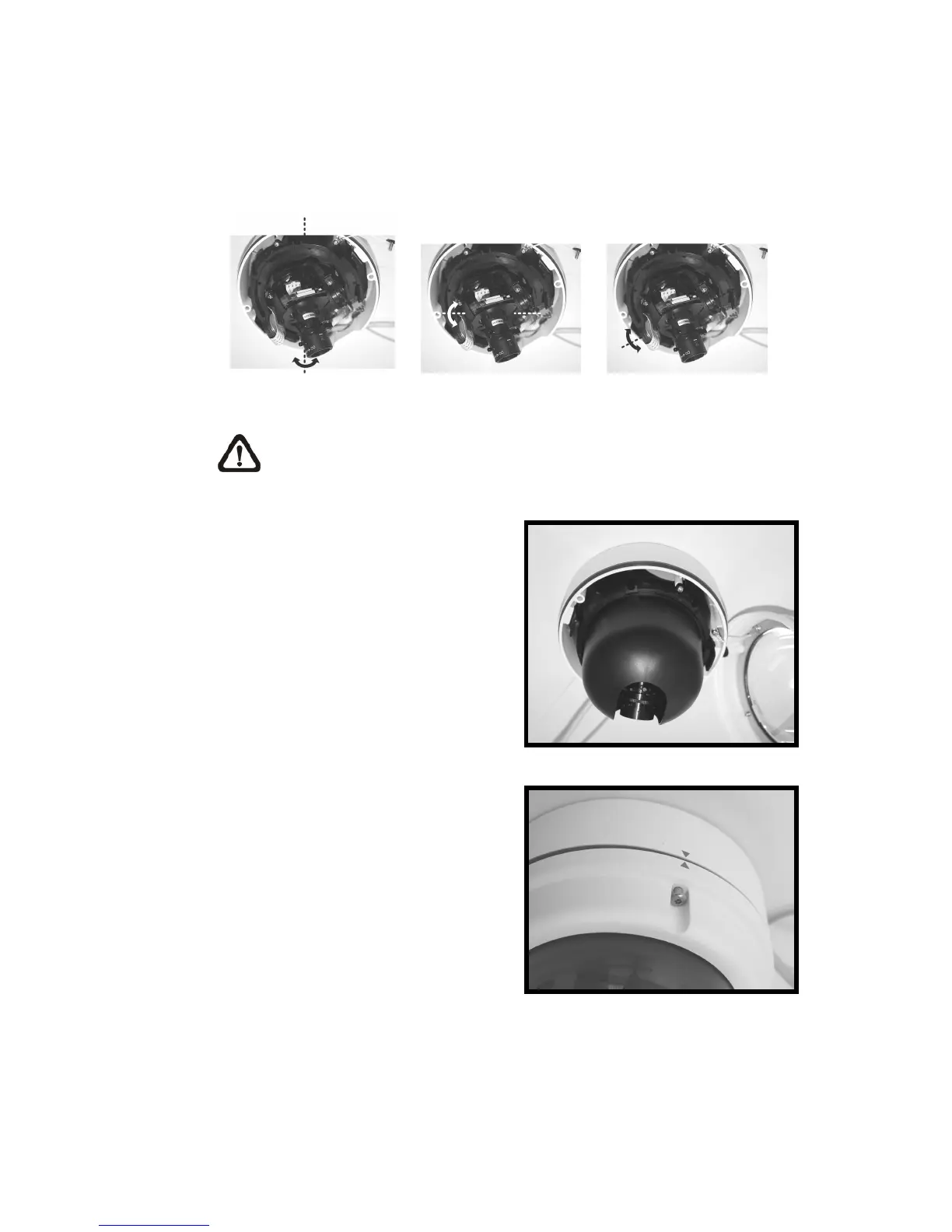

Adjust the camera to a desired angle, as shown below. Pan adjustment
range is nearly 360°; rotation angle range approach es to 270°. Tilt is
adjustable between ﹣10° ~ 90°.
Pan Adjustment Rotation Adjustment Tilt Adjustment
NOTE: Adjust the lens carefully within the limits mentioned above, or
the cables underneath would be harmed.
STEP 17:
Put the Inner Cover back to the
Dome Camera unit.
STEP 18:
Replace the Dome Cover back,
aligning the arrow mark on the Dome
Cover with the one on the housing as
shown in the figure.
