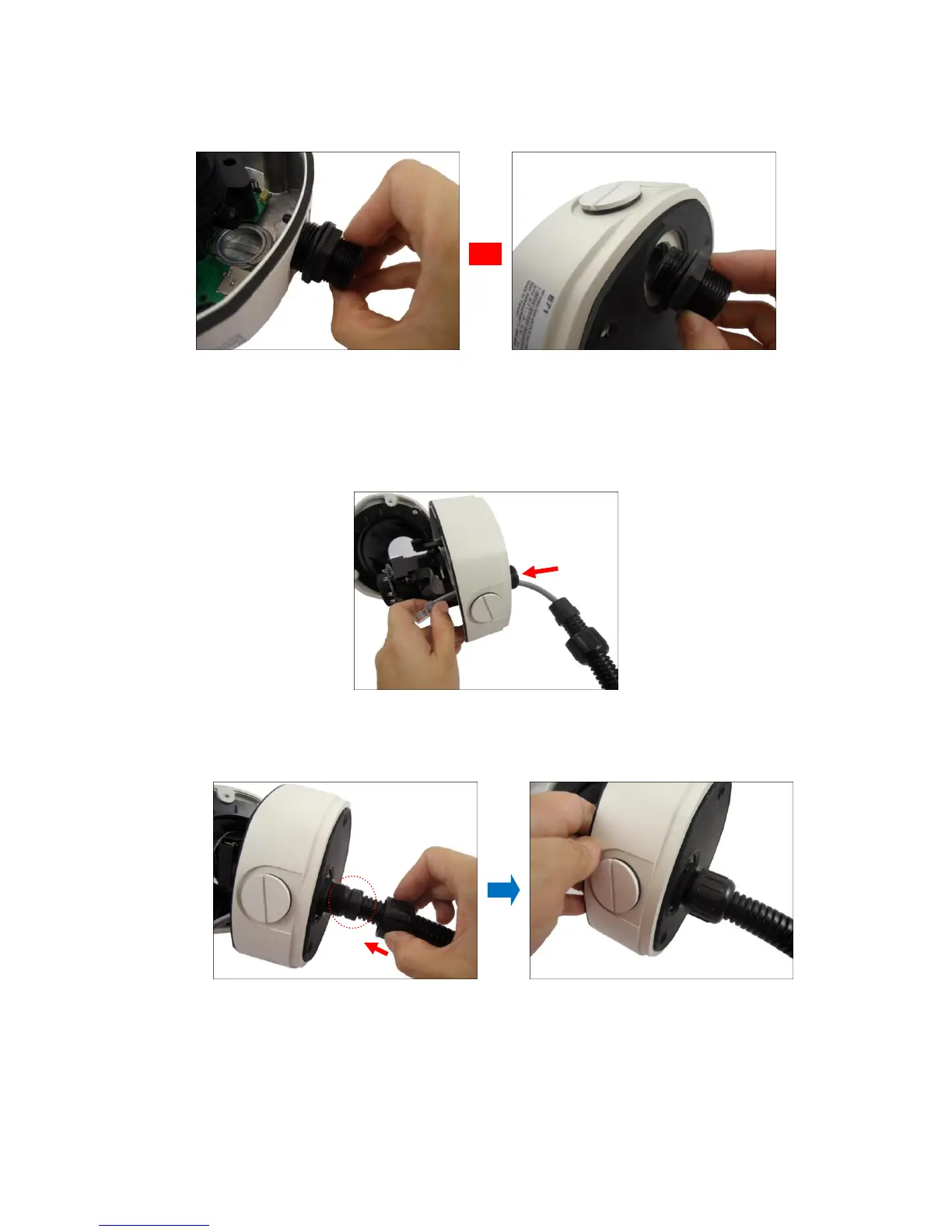

6. Screw the conduit gland body to the conduit hole of the camera.
Attach to Side Conduit Hole Attach to Bottom Conduit Hole
7. If the cables will be routed along the surface, skip this step.
If the cables will pass through the surface, do the following:
a. Pull the network cable and other cables (if any) through the bottom conduit hole.
b. Insert the sealing nut into the conduit gland body and then attach the clamping nut to
complete the cable solution.
