Other Adjustments and Accessories
How to Adjust the Viewing Angle
This section describes the procedures in adjusting the viewing angle and pan direction of the
camera.
FCS-3055 / FCS-3082 / FCS-3083

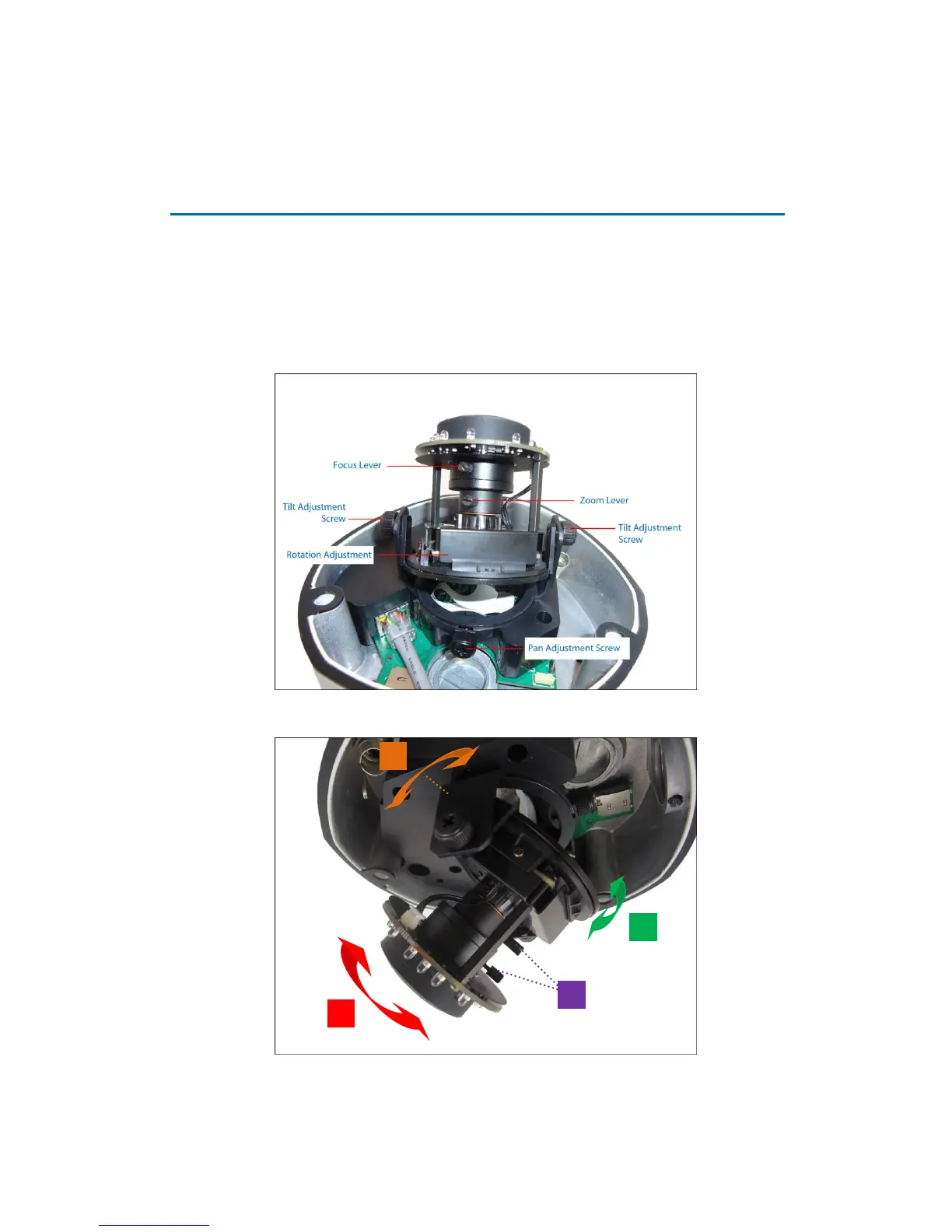

Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
1
2
3
4
