Back Panel

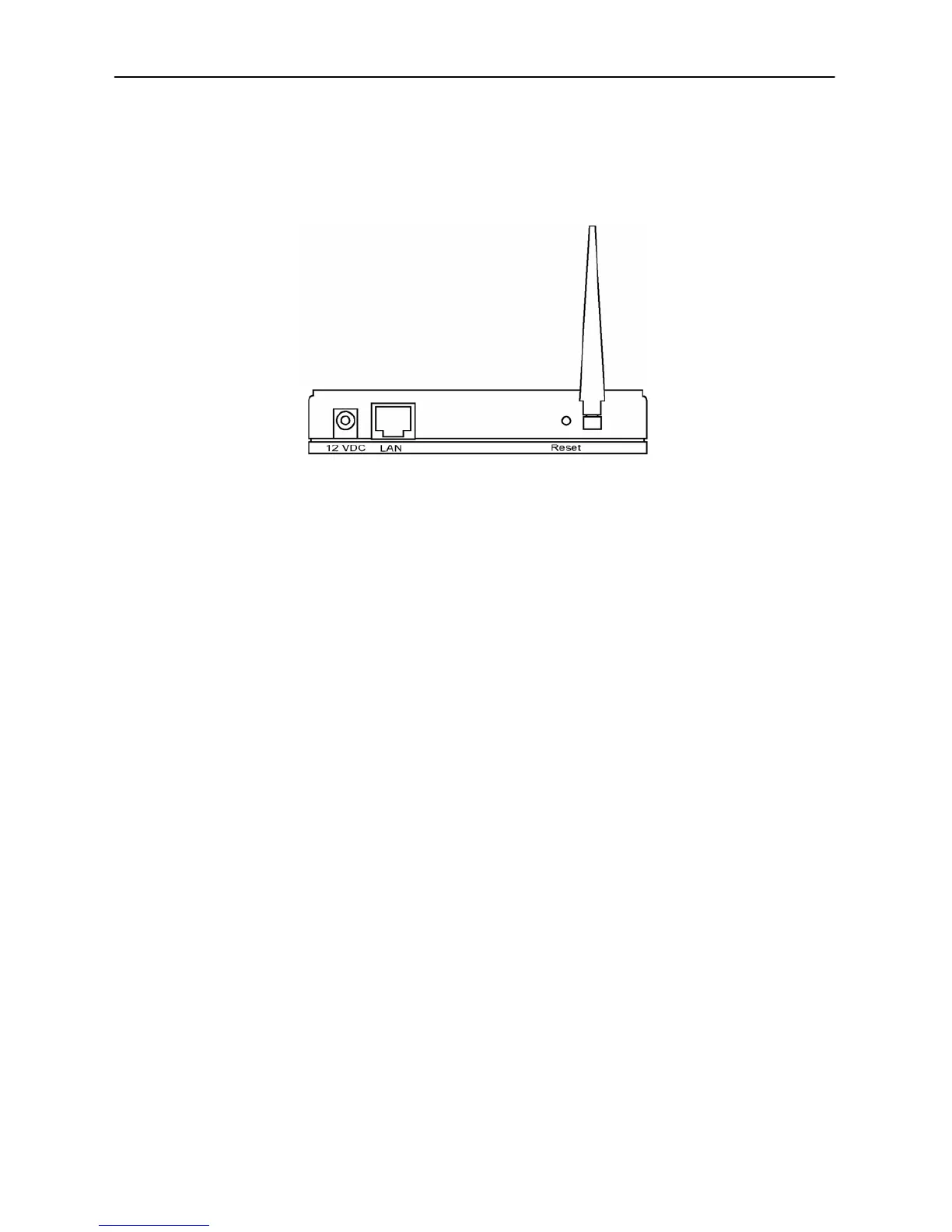

Access Point’s connection ports are located on the back panel. Below is the description of
each connection port.
y Antenna Connector
This round connection is standard Reverse SMA connector where any antennas with
Reverse SMA connector can connect to the Access Point.
y DC Adapter Port
Insert the power jack of the power adapter into this port.
y LAN Port
The Access Point’s LAN port is where user connects to user’s LAN’s network devices.
y Reset
The Reset button allows user to do one of two things.
1) If problems occur with user’s Access Point, press the reset button with a pencil
tip (for less than 4 seconds) and the Access Point will re-boot itself, keeping
user’s original configurations.
2) If problems persist or user experience extreme problems or user forgot user’s
password, press the reset button for longer than 4 seconds and the Access Point
will reset itself to the factory default settings (warning: user’s original
configurations will be replaced with the factory default settings).
