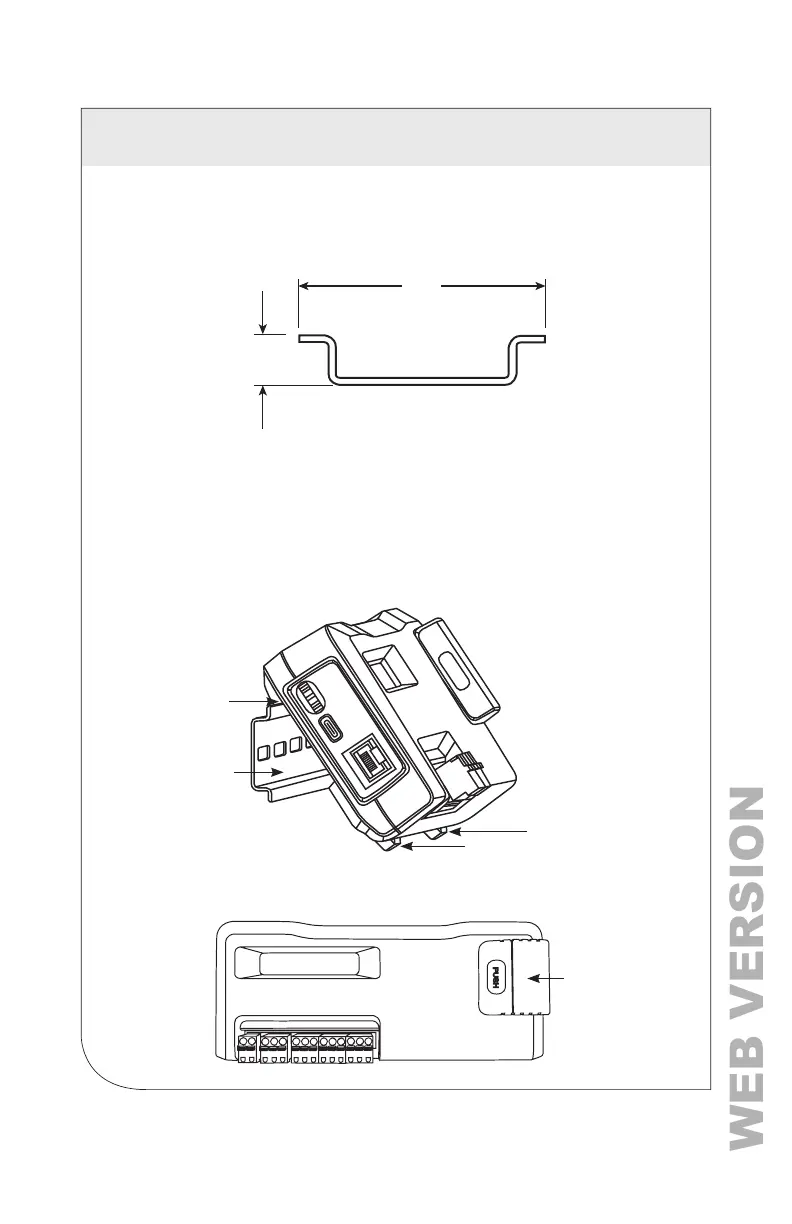

5.3 Installation Sequence for 70D03
This section illustrates the 70D03 model, which is equipped with a built-in DIN rail
channel for easy installation. The 70D03 must be installed inside a UL approved
electrical enclosure.
1. Within a suitable UL-approved enclosure, attach a section of T35 DIN rail on
which to mount the meter. Leave enough clearance to route voltage, CT, and
communication wires within the enclosure. The customer supplies the
UL-approved enclosure.
2. Mount the meter on the DIN rail by pressing the top edge of the DIN rail channel
on the meter into the top of the DIN rail, and then pushing the meter rmly
towards the DIN rail so that it clicks into place. The meter can be released from
the DIN rail by using a screwdriver to pull the DIN rail tabs at the bottom of
the meter.
T35 DIN Rail
35mm
7mm
PUSH
DIN Rail Channel
T35 DIN Rail
DIN Rail Tabs
Pull tabs with screwdriver to release.
3. Remove the high-voltage cover, and connect the voltage leads to the meter.
High-Voltage
Cover
WARNING: DO NOT ENERGIZE METER WHEN VOLTAGE COVER IS REMOVED.
5 METER INSTALLATION
