b) Leviton Power Meter Viewer

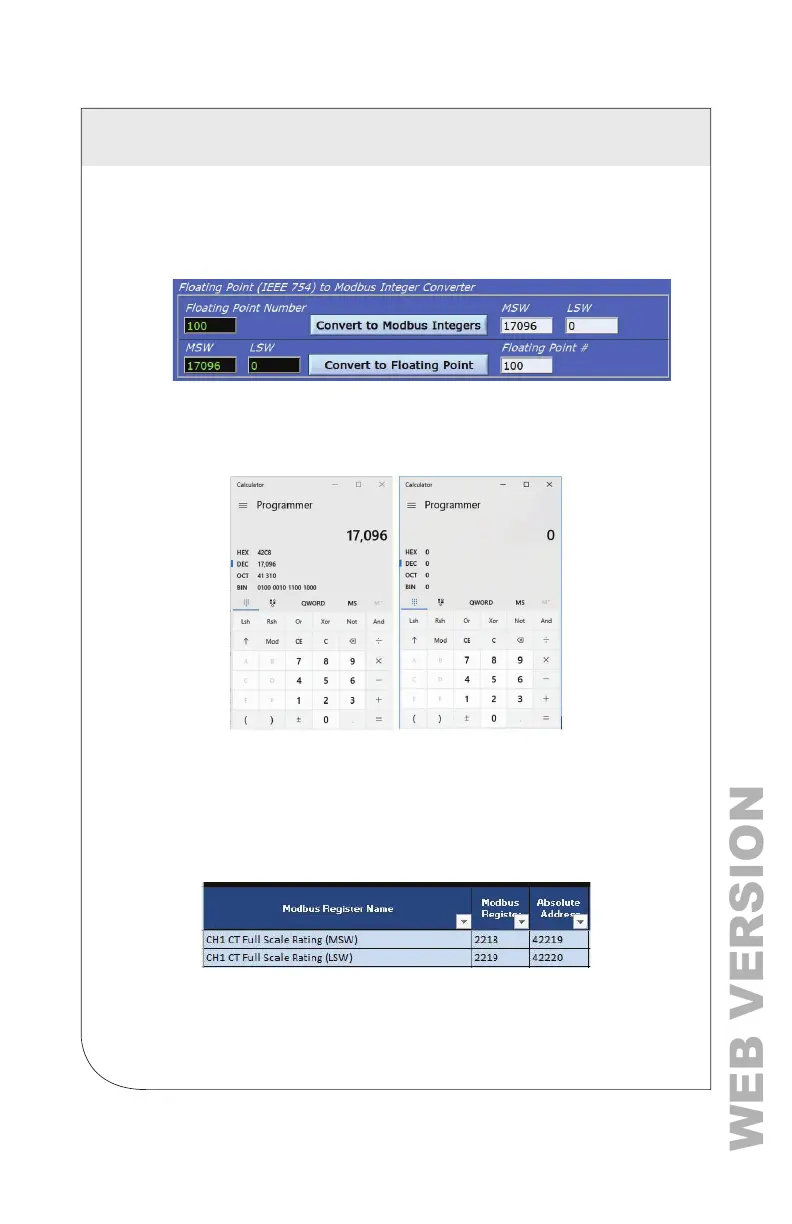

c) If an Internet utility is not available, Leviton Power Meter Viewer has a built-in
conversion utility under the Advanced Tab. Enter 100.00 and press Convert to
Modbus Integers button.
This utility identies that the MSW and LSW registers must be set to 17096 and
0 (decimal). If hexadecimal notation is required, these decimal values can be
converted using a utility, such as the MS Windows Calculator (under Programmer
mode), as shown below.
After converting, 0x42C8 0x0000 is the MSW and LSW register value.
2. Identify which conguration registers control of the CH1 CT Full Scale Rating.
Either refer to the MS Excel Register List (USB drive) or use the Power Meter
Viewer Utilities software to discover the address of the displayed data.
a) Open the MS Excel Register List and locate the CH1 CT Full Scale Rating
Registers under the USER CONFIG POINTS group.
7 RTU PROGRAMMING AND SCRIPTING
