1 PRODUCT DESCRIPTION
1.1 General Description
The Leviton Series 1000 and 2000 meters are self-powered; current transformer
(CT) rated electronic kilowatt-hour (kWh) meters designed for permanent connection
to an electrical service.
• Series 1000 meters are designed for 1- phase, 2-wire and 1 or 2-phase, 3-wire
services, whereas Series 2000 meters are designed for 3-phase, 4-wire services.
• This guide is for use with individual Series 1000 and 2000 units.
• These meters are suitable for WYE configurations only
1.2 Meter Features
• Revenue-grade accuracy with solid-core CTs
• Use with 100mA solid core, or easy to install split core CTs
• Built in LCD that displays kWh data
• AMR compatible isolated pulse outputs
• Reverse-phase diagnostic indicator
• 5-year warranty
1.3 Meter Certifications
• UL Listed in the US and Canada
• Conforms to accuracy requirements set forth in ANSI C12.10
• Series 2000 meters are California CTEP approved with 100A and 200A solid core CTs.
1.4 Physical Description
Single Series 1000 and Series 2000 meters are available in two enclosures:
1. Industrial grade JIC steel enclosures for indoor installations shown in Figure 1
5

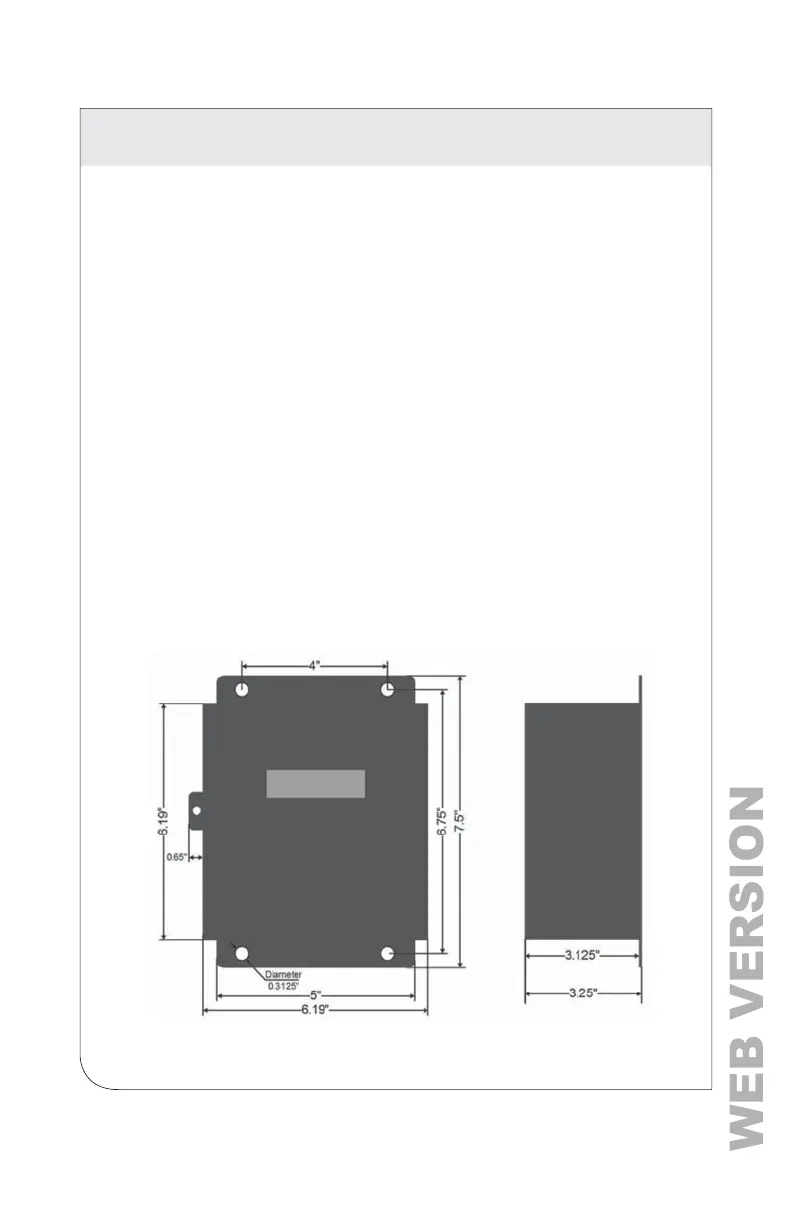

Figure 1 - Steel enclosure dimensions
